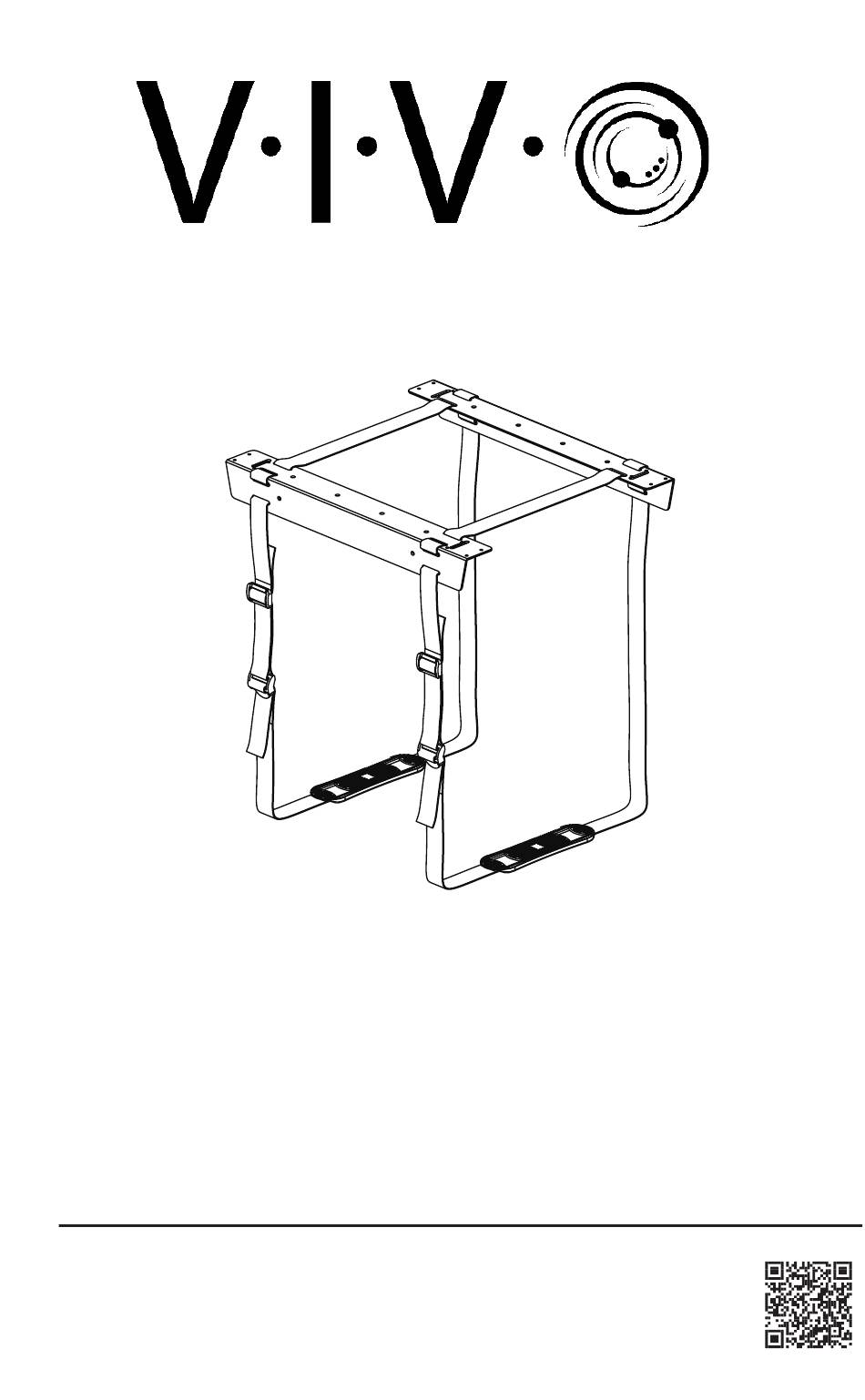

- Page 1 Under Desk Adjustable Strap PC Mount SKU: MOUNT-PC02S Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pc02s...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x4) C (x2) Mount Soft Pad Cable Tie Included Hardware & Tools S-A (x8) M4x16mm Screw Tools Needed: Weight Capacity: 44lbs (20kg) 1/16” Phillips Drill Drill Bit Screwdriver Tape Pencil Measure...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place Mount (A) on top of computer tower and measure the Distance Between Front Mounting Holes (Z) using a Tape Measure as shown in Fig. 1 below. Top of Computer Tower Fig. 1 Using a pencil, make 8 marks on the underside of your tabletop to correspond to the measurement collected above (Z), ensuring each is 2.63”/66.7mm apart as shown in Fig. - Page 5 STEP 2 Using a 1/16” Bit, drill ⅜” into mounting holes. Attach Mount (A) to marked locations using M4x16mm Screws (S-A) and a Phillips Screwdriver. STEP 3 Stick Soft Pads (B) to Mount (A) as shown in diagram.
- Page 6 STEP 4 Attach computer tower to Mount (A) making sure Base Pads (A1) are placed in middle of tower bottom. Adjust straps to secure computer in place. Strap Getting Stuck? If your straps are getting stuck and not pulling through easily, STOP pulling and follow options below: 1).
- Page 7 STEP 3 Tighten strap then secure ends with Cable Ties (C).
- Page 8 LAST UPDATED: 5/14/24 REV2 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
