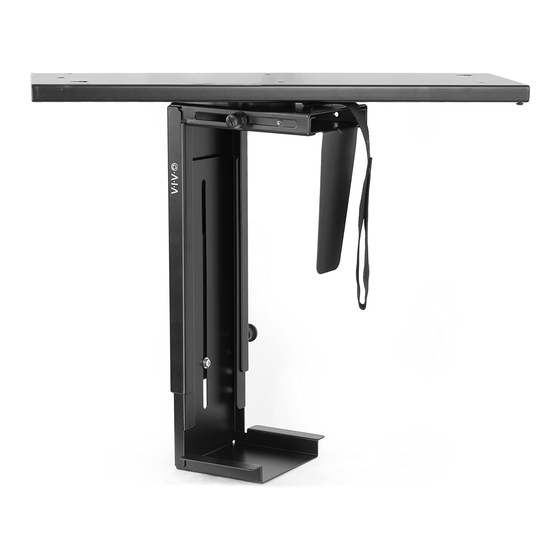

Under Desk Slider PC Mount
Instruction Manual
SKU: MOUNT-PC01D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-pc01d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-PC01D
Summary of Contents for Vivo MOUNT-PC01D
- Page 1 Under Desk Slider PC Mount Instruction Manual SKU: MOUNT-PC01D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-pc01d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Insert screws (D) and spacers (C) into one end of slider track (A). STEP 2 Position slider track (A) on underside of desktop and mark drilling locations with a pencil. Insert screws (E) in left-front and right-rear holes, leaving 3mm of thread exposed. Place keyholes in slider track (A) over screws (E) and slide into position, then tighten screws (E). - Page 4 STEP 3 Apply adhesive soft pads (F) on the CPU holder (B).
- Page 5 STEP 4 Remove knob from CPU holder (B), and loosen screw with Allen wrench (G). Adjust height and width of CPU holder (B) to fit your computer tower, then install knob and tighten previously loosened screw.
- Page 6 STEP 5 Slide CPU holder (B) with computer into slide track (A).
- Page 7 STEP 6 Insert screws (D) and spacers (C) into open end of slider track (A).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
