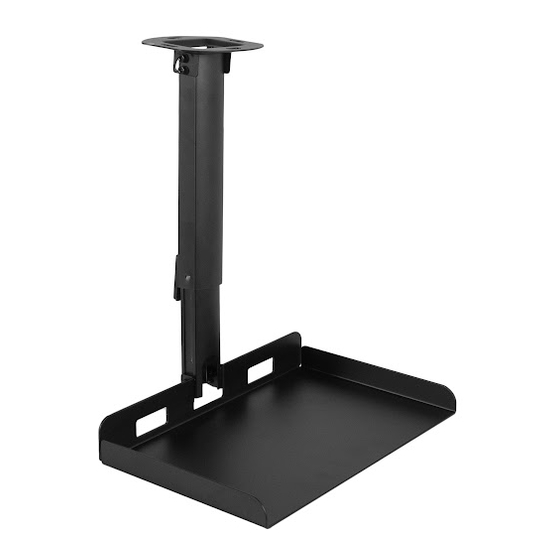

Extending Ceiling Projector Tray Mount
Instruction Manual
SKU: MOUNT-VP08B/W
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vp08b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-VP08B
Summary of Contents for Vivo MOUNT-VP08B
- Page 1 Extending Ceiling Projector Tray Mount Instruction Manual SKU: MOUNT-VP08B/W Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vp08b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete. If unsure, please contact us at vivo-us.com, email at help@vivo-us.com, or call us at 309-278-5303. TOOLS NEEDED...
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Run cables through arm (A). OPTION B: If running cables through ceiling, pull cables through top plate of arm (A).
- Page 4 STEP 2 OPTION A: Drywall Mounting Use top plate of Mount (A) to mark mounting holes on ceiling. Using a 3/16” drill bit, drill approximately 2.2” into ceiling stud. Put Mount (A) in place and mount to the pre-drilled holes using ST6x55 Screws (W-A) and M6 Washers (W-C) as shown below.
- Page 5 STEP 2 (Continued) OPTION B: Concrete/Brick Mounting Use top plate of Mount (A) to mark mounting holes on ceiling. Using a ⅜” drill bit, drill approximately 2.4” into ceiling. Use Concrete Anchors (W-B), ST6x55mm Screws (W-A), and M6 Washers (W-C) to mount Mount (A) as shown below.
- Page 6 STEP 3 Use two upper set of holes on the bottom of Mount (A) to install two M5x12mm Screws (S-C), Plastic Spacer (S-A), and Threaded Plate (S-B) using 4mm Allen Wrench (T-A), leaving a 4mm screw gap. T-A S-C Latch Shelf (B) onto previous installed screws and install remaining M5x12mm Screws (S-C) in remaining set of holes.
- Page 7 STEP 4 To adjust height, use 4mm Allen Wrench (T-A) to loosen set screw in back of mount. Adjust height and re-tighten to secure. Place projector on assembly and connect power with previous installed cables.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
