Vivo MOUNT-PC01 Assembly Manual
Under desk and wall pc mount
Hide thumbs
Also See for MOUNT-PC01:
- Instruction manual (8 pages) ,
- Instruction manual (5 pages) ,
- Instruction manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-PC01
Summary of Contents for Vivo MOUNT-PC01

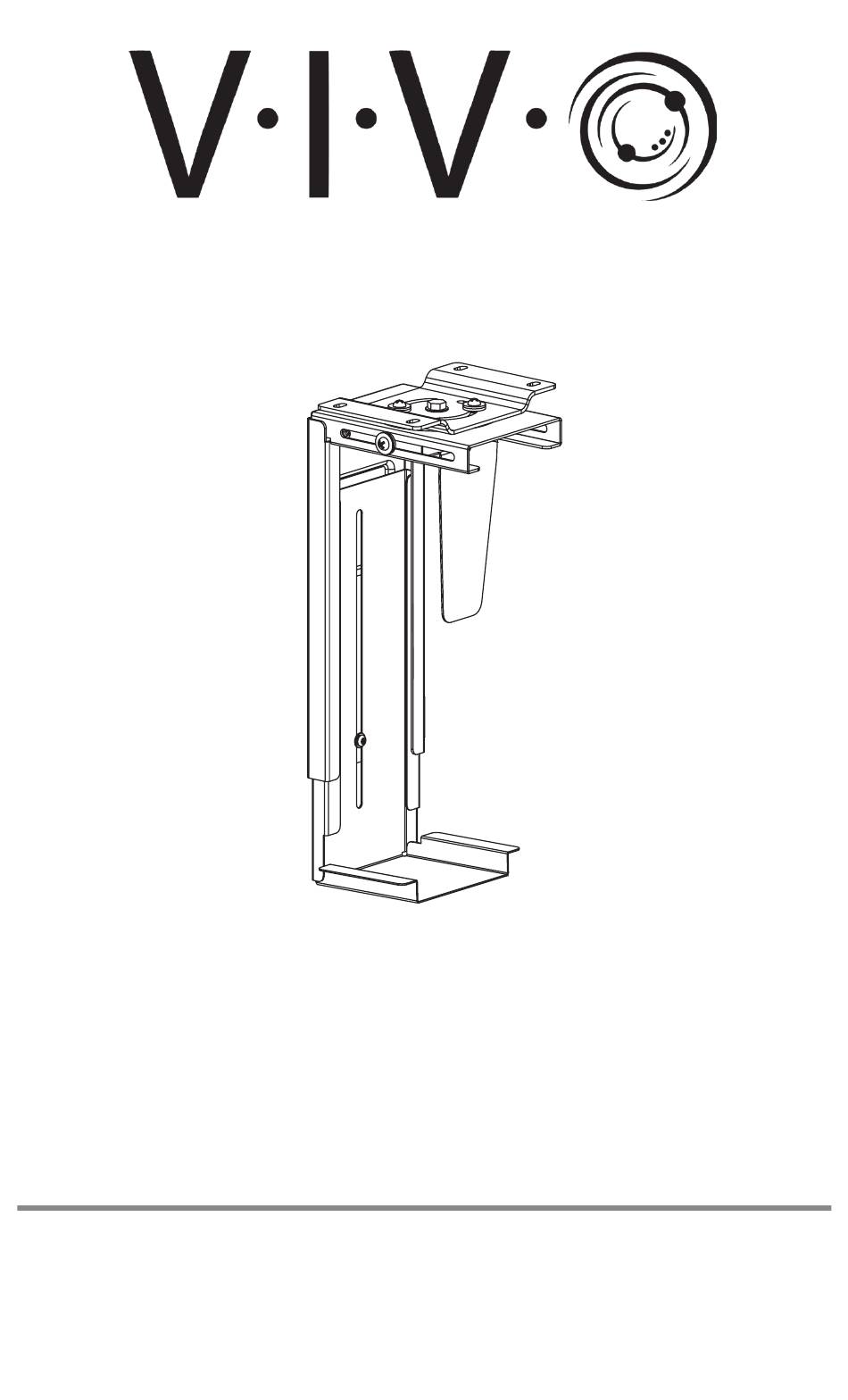

- Page 1 Under Desk and Wall PC Mount MOUNT-PC01 Assembly Manual Individual Product SKUs MOUNT-PC01 MOUNT-PC01W...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x1) B (x12) Mount Included Hardware & Tools M-A (x4) M-B (x4) M-C (x4) M-D (x4) ST4.8x16mm Screw ST4.8x38mm Screw Concrete Anchor Washer T-A (x1) 4mm Allen Wrench Tools Needed: Weight Capacity: 22lbs (10kg) Phillips Level Drill Screwdriver Pencil Stud Finder... - Page 4 Pre-Mounting Instructions Peel adhesive backing off Pads (B), and apply to top, bottom, and side of Mount (A) as shown.
-
Page 5: Mounting Options
Mounting Options Determine your intended mounting surface and follow instructions as identified below. ***Read Before Proceeding*** If you intend to Mount with Option 2, 3, or 4, follow Pre-Wall Mounting Instructions on Pages 9-10 first. -
Page 6: Under-Desk Mounting
- Option 1 - Under Desk Mounting STEP 1 Secure Mount (A) to bottom of desk using ST4.8x16mm Screws (M-A) and Washers (M-D). - Page 7 Under Desk Mounting - Cont’d STEP 2 Loosen the Locking Screws on both sides of the top of Mount (A). Locking Screw Slide side support bracket out to maximum width. Optional Adjustment for Thinner PCs If your PC tower has a width of 3.5”-6.0”(89mm-152mm), the width range of the side bracket can be narrowed for a better fit.
- Page 8 Under Desk Mounting - Cont’d STEP 3 Loosen Set Screws for lower support using 4mm Allen Wrench (T-A) and slide the support down. Set Screw Place PC tower on Mount (A), slide bottom support up until Mount is fit vertically to PC, and retighten Set Screws with 4mm Allen Wrench (T-A).
- Page 9 Pre-Wall Mounting Instructions Loosen two Locking Screws on top of Mount (A) (one on each side) and slide Side Support Bracket out to maximum width. Locking Screw Optional Adjustment for Thinner PCs If your PC tower has a width of 3.5”-6.0”(89mm-152mm), the width range of the side bracket can be narrowed for a better fit.
- Page 10 Pre-Wall Mounting Instructions - Cont’d Loosen Set Screws for lower support using 4mm Allen Wrench (T-A) and slide the lower support down. Screw Proceed to desired Wall Mounting Option: Wood Stud: p.11-12 Solid Wood: p.13-14 Concrete/Brick: p.15-16...
- Page 11 - Option 2 - Wood Stud Mounting Ensure that you have completed instructions on Pages 9-10 first STEP 1 Use a studfinder to locate stud. Using a level, Place Mount (A) against wall and mark drilling locations for top and bottom holes on only one side of the Mount that aligns with the stud. Drilling Locations Drill mounting holes at marked locations using the infographic below.
- Page 12 Wood Stud Mounting - Cont’d STEP 2 Insert ST4.8x16mm Screw (M-A) into top hole that aligns with stud, leaving 3mm of thread exposed. Do NOT use included Anchors (W-B) for wood or drywall. Hang Mount (A) on screw. Insert ST4.8x16mm Screw (M-A) into lower hole that aligns with stud. Tighten all screws with a Phillips screwdriver.
- Page 13 - Option 3 - Solid Wood Wall Mounting Ensure that you have completed instructions on Pages 9-10 first STEP 1 Using a level, Place Mount (A) against wall and mark drilling locations. Drilling Locations Drill mounting holes at marked locations using the infographic below. Drill Bit: 1/8”...
- Page 14 Solid Wood Wall Mounting - Cont’d STEP 2 Insert two ST4.8x16mm Screws (M-A) into top holes, leaving 3mm of thread exposed. Do NOT use included Anchors (W-B) for wood or drywall. Hang Mount (A) on screws. Insert two more ST4.8x16mm Screws (M-A) into lower holes. Tighten all screws with a Phillips screwdriver.
- Page 15 - Option 4 - Concrete/Brick Wall Mounting Ensure that you have completed instructions on Pages 9-10 first STEP 1 Using a level, Place Mount (A) against wall and mark drilling locations. Drilling Locations Drill mounting holes at marked locations using the infographic below. Drill Bit: 1/4”...
- Page 16 Concrete/Brick Wall Mounting - Cont’d STEP 2 Insert Concrete Anchors (M-C) into holes, and insert two ST4.8x38mm Screws (M-B) into top holes, leaving 3mm if thread exposed. Hang Mount (A) on screws. Insert two more ST4.8x16mm Screws (M-A) into lower holes. Tighten all screws with a Phillips screwdriver.
- Page 17 STEP 3 Place PC tower on Mount (A), slide bottom support up until mount is fit vertically to PC, and tighten Set Screws using 4mm Allen Wrench (T-A). Screw...
- Page 18 STEP 4 Slide Side Support Bracket into place to hold PC, and tighten Locking Screws using a Phillips screwdriver. Locking Screw Assembly Complete!
- Page 19 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
