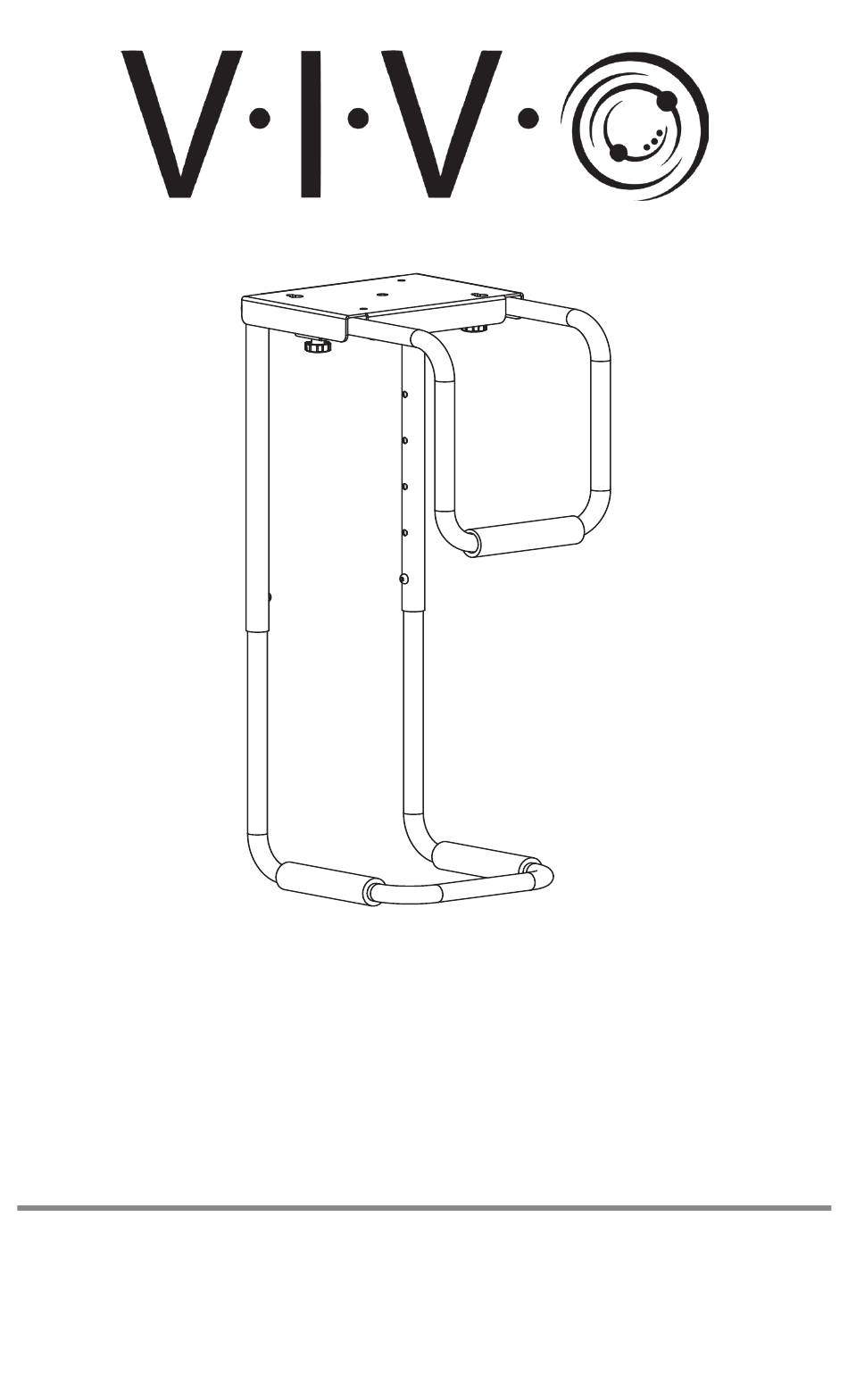

  • Page 1 Heavy Duty Under Desk PC Mount MOUNT-PC04A Assembly Manual...
  • Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 4 Package Contents A (x1) B (x1) C (x1) PC Mount Support Bar Template Included Hardware & Tools S-A (x2) S-B (x4) T-A (x1) M6x10mm Screw ST5.5x19mm 4mm Allen Screw Wrench Tools Needed: Weight Capacity: 66lbs Phillips Drill 5/32” (4mm) (30kg) Screwdriver Drill Bit...
  • Page 5 Assembly Steps STEP 1 Insert the Support Bar (B) into the PC Mount (A). Secure it with M6x10mm Screws (S-A) using the 4mm Allen Wrench (T-A).
  • Page 6 STEP 2 Pre-Drilling Instructions For Desktops ≥ 0.7” (19mm) Thick Using Template (C), mark the drilling locations on the underside of the desktop in the desired position. 19mm Drill holes at the marked locations, following the infographic below. Drill Bit: 5/32”...
  • Page 7 STEP 3 3.1 Align the keyholes in the PC Mount (A) with the screws. 3.2 Slide the mount into place. 3.3 Tighten the ST5.5x19mm Screws (S-B) with a Phillips screwdriver. Install 5.5x19mm Screws (S-B) into the remaining holes using a Phillips screwdriver.
  • Page 8 STEP 4 Loosen the Knobs on the PC Mount (A) and adjust the side support bar to fit the width of your PC tower. Knobs If needed, remove the M6x10mm Screws (S-A) using the 4mm Allen Wrench (T-A) and adjust the support bar to the lowest position.
  • Page 9 STEP 5 Place the PC tower in the mount and adjust the support bar to the highest possible position that accommodates your PC tower’s height. 2 Person Mounting Recommended...
  • Page 10 Assembly Complete Your PC is now ready to be plugged in. To dismount the PC, ensure you follow the appropriate shutdown procedure and refer to STEP 4 and STEP 5.
