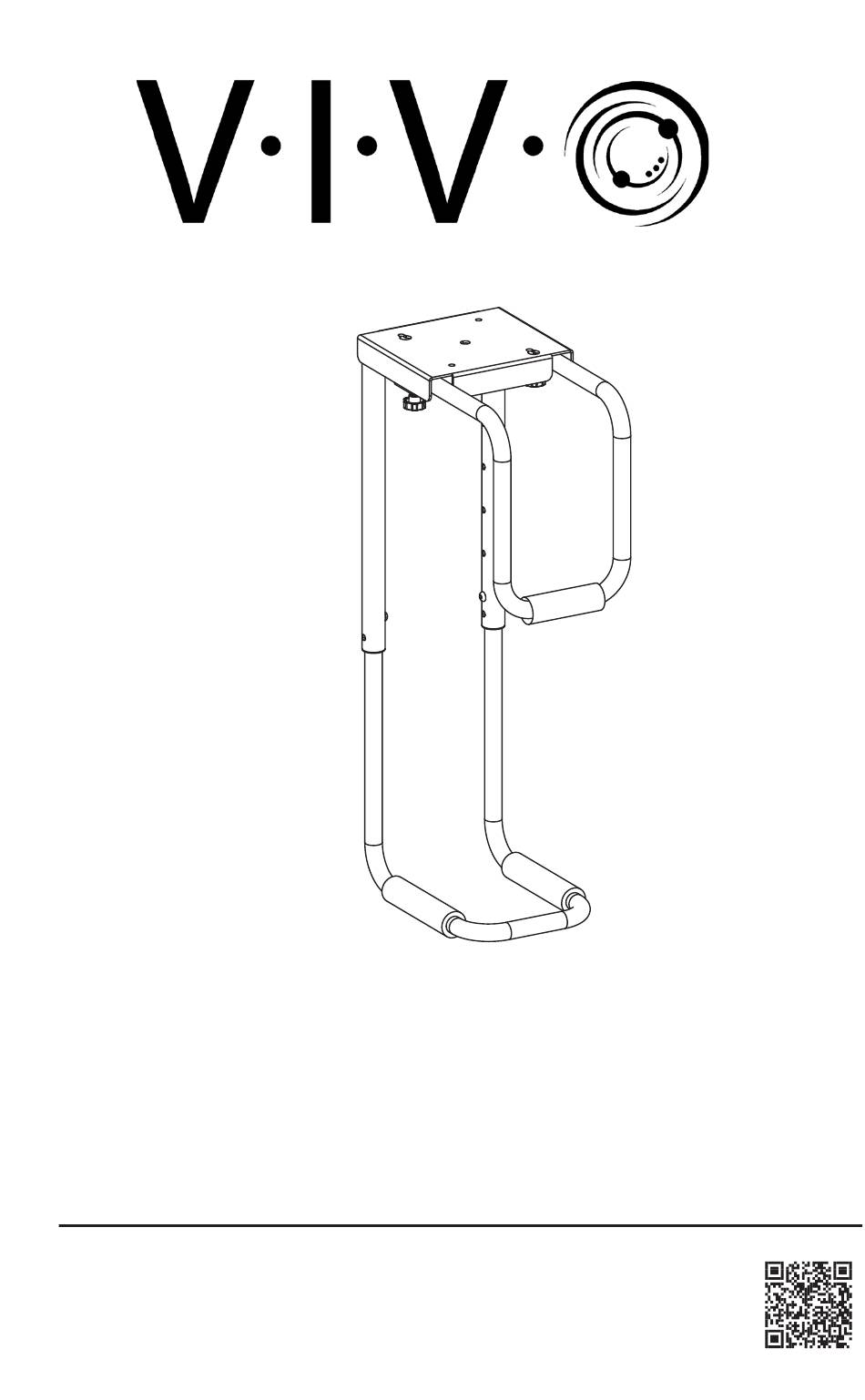

- Page 1 Heavy Duty Under Desk PC Mount SKU: MOUNT-PC04B Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-pc04b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x1) CPU Mount Support Bar Template Included Hardware & Tools S-B (x4) T-A (x1) S-A (x2) M6x10mm ST5.5x19mm 4mm Allen Wrench Screw Screw Tools Needed: Weight Capacity: 66lbs (30kg) Phillips Power Screwdriver Drill Drill Bit...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Insert Support Bar (B) into CPU Mount (A) and secure using M6x10mm Screws (S-A) and 4mm Allen Wrench (T-A). S-A (x2) - Page 5 STEP 2 Using Template (C), mark drilling locations on the underside of the desktop in the desired location. Drill 0.6” (16mm) deep holes at marked locations using a 5/32” (4mm) drill bit. Insert ST5.5x19mm Screws (S-B) in front-left and rear-right locations, leaving 1/8” (3mm) of thread exposed.
- Page 6 STEP 3 Position keyholes in CPU Mount (A) over screws and slide in place. Tighten ST5.5x19mm Screws (S-B) using a Phillips screwdriver. Install ST5.5x19mm Screws (S-B) into remaining holes and tighten with a Phillips screwdriver. S-B (x2)
- Page 7 STEP 4 Loosen knobs on underside of CPU Mount (A) and adjust side support bar to fit your CPU tower width. Remove M6x10mm Screws (S-A) using 4mm Allen Wrench (T-A) and adjust support bar to the lowest position if needed. STEP 5 Place your CPU tower in mount and raise support bar to the highest possible position according to your CPU tower’s height.
- Page 8 LAST UPDATED: 11/28/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
