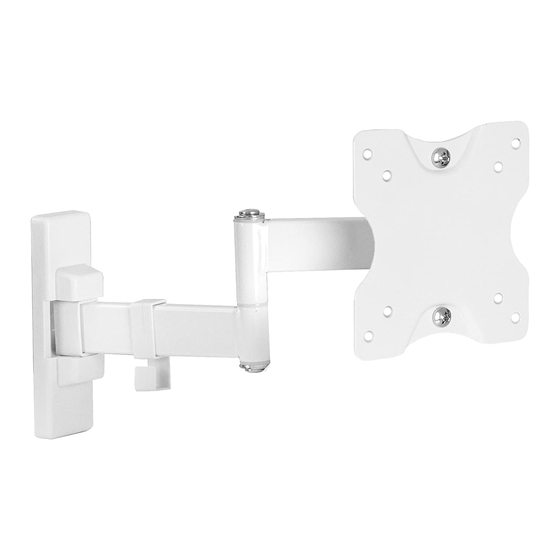

Single Monitor Wall Mount
Instruction Manual
SKU: MOUNT-VW01M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw01m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-VW01M
Summary of Contents for Vivo MOUNT-VW01M
- Page 1 Single Monitor Wall Mount Instruction Manual SKU: MOUNT-VW01M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw01m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Installation Use the mount (A) to mark drilling locations on the wall where a stud is located. Using a 3/16” bit, drill 2.2” deep holes into marked locations. Secure the mount (A) to the wall using ST6.3x55 screws (W-A) with washers (W-C). - Page 4 STEP 2 Attach the plastic cover to the wall plate of the mount (A). STEP 3 ttach the cable clip (D) to the arm (A) as shown.
- Page 5 STEP 4 OPTION A: For Flat Back Displays Install the VESA plate (B) to the back of the TV/monitor using 12/14mm length bolts (M-A, M-B, M-D or M-E) with D5 washers (M-G). OPTION B: For Curved / Recessed Back Displays Install the VESA plate (B) to the back of the TV/monitor using 16mm length bolts (M-C or...
- Page 6 STEP 6 Adjust tilt support using the Allen wrench (E) and swivel joints using the wrench (F). STEP 7 Organize cables using the cable clip (D).
- Page 7 Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
