DEVICENET NETWORK:

By pressing the "DeviceNet Network" button from the main window for SW67154 (Fig. 2), the window "DeviceNet Network" appears (Fig.
4).
Here it is possible to define the slaves DeviceNet Devices with their ID, number of Input and number of Output bytes.
The data of the columns have the following meanings:
In the field "ID Device" insert the ID of a slave DeviceNet device;
In the field "N Byte IN" insert the number of input byte of the slave DeviceNet;
In the field "N Byte OUT" insert the number of output byte of the slave DeviceNet;
In the field "Mnemonic" is possible to insert a description. It isn't necessary compiling this field, is only a label.

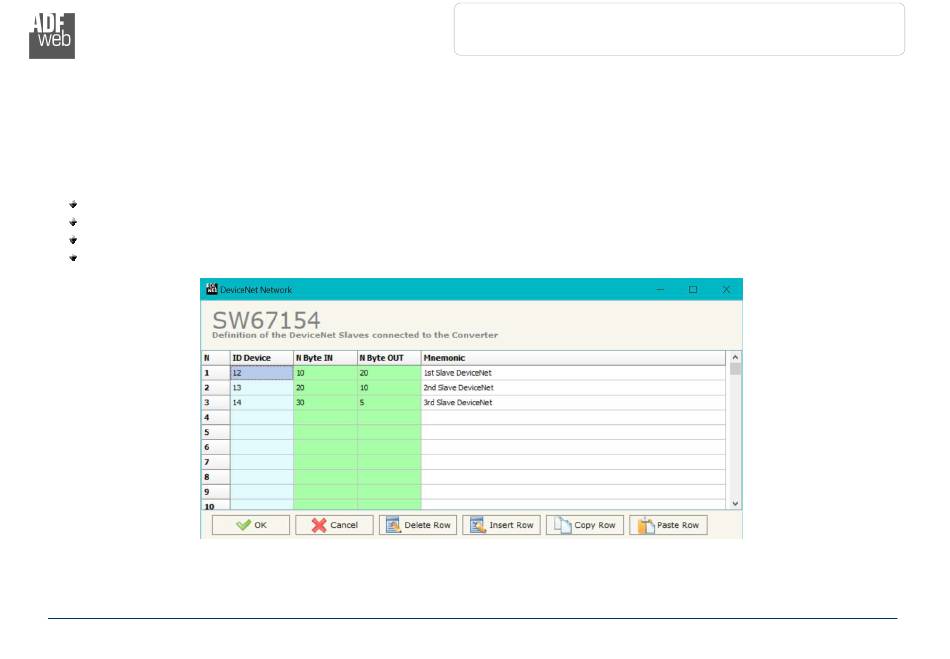

Figure 4: "DeviceNet Network" window
