DEVICENET:

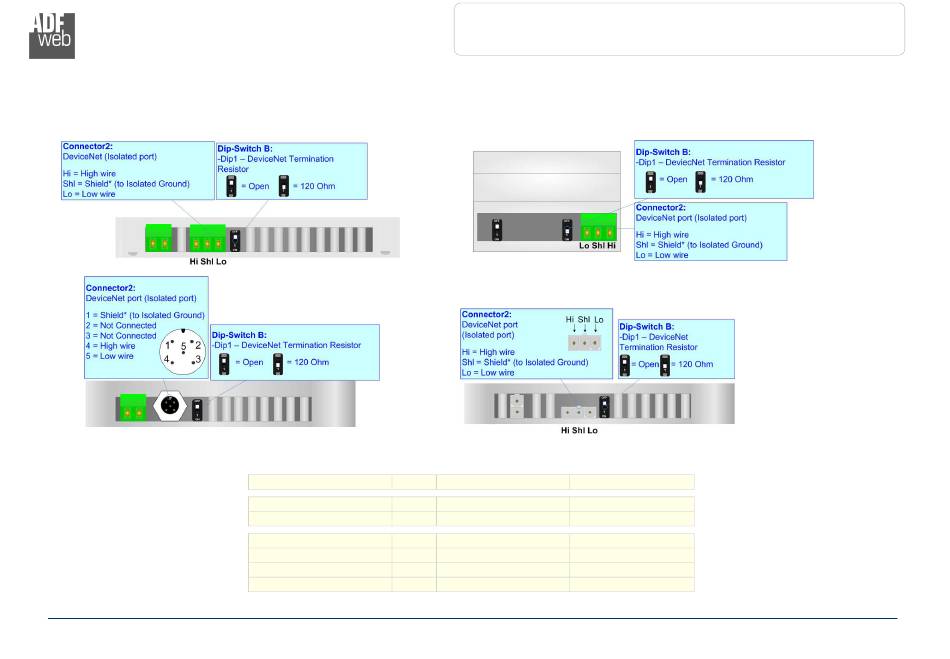

To terminate the DeviceNet line with a 120Ω resistor it is necessary that the Dip1 of 'Dip-Switch B' is at ON position.
Cable characteristics:
ADFweb.com S.r.l.
DC parameter:
AC parameters:
Length
User Manual Ethernet / DeviceNet Master
Document code: MN67154_ENG
Impedance
70
Ohm/m
Impedance
120
Ohm/m
Delay
5 ns/m
Baud Rate [bps]
Length MAX [m]
125 K
500
250 K
250
500 K
100
Revision 1.100
Page 14 of 33
