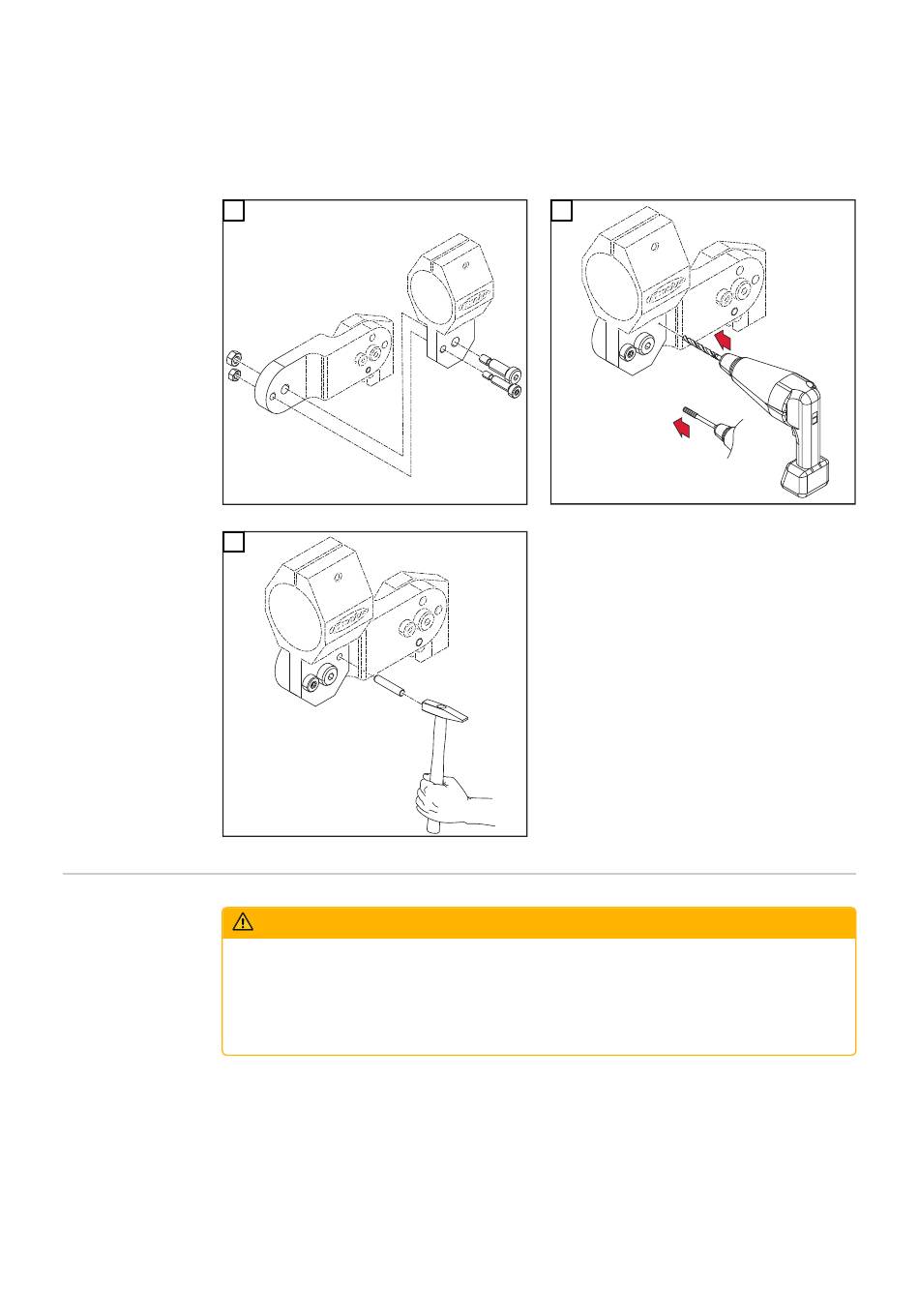

IMPORTANT! Drill a Ø5.8 mm hole for the mounting bracket and use a reamer to
enlarge the hole so it can accommodate the dowel pin (Ø6G7).
IMPORTANT! The mounting bracket must be fitted using an M8 shoulder screw
and an M6 screw. After screwing the mounting bracket in place, another dowel
pin (Ø6 mm) must bei driven in to secure it.
1
3
Fitting the
mounting brack-
et (individually)
Danger due to work that has been carried out incorrectly.
This may result in serious injury and damage to property.
▶
▶
IMPORTANT! Drill a Ø5.8 mm hole for the mounting bracket and use a reamer to
enlarge the hole so it can accommodate the dowel pin (Ø6G7).
IMPORTANT! The mounting bracket must be fitted using an M8 shoulder screw.
The required bracket must then be positioned and two dowel pins (Ø6 mm) driv-
en in to secure it.
WARNING!
This installation must only be carried out by trained and qualified person-
nel.
Observe the safety rules in the power source operating instructions.
English
2
1
Reibahle /
Reamer /
Alésoir /
Alesatore / 2
Escariador /
Alargador
Ø6G7
Bohrer /
Drill /
Foret /
Punta del
trapano /
Broca /
Broca
Ø5,8
