Fronius Robacta Operating Instructions Manual page 8

Installation and commissioning

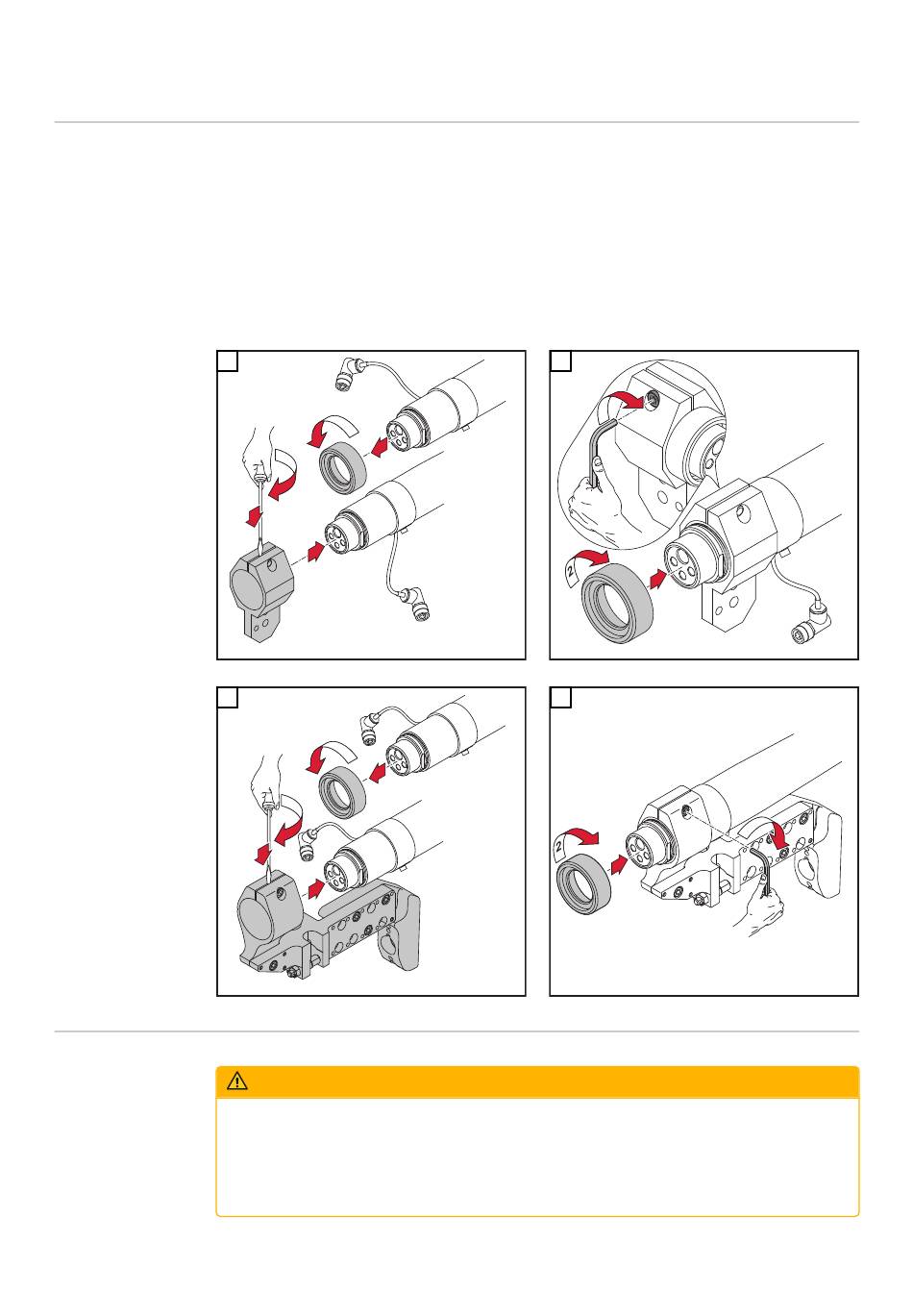

Fitting the IMPORTANT! The Robacta Twin comes with a clamp fitted as standard.
clamp/adjusting
clip The Robacta clamp and Robacta adjusting clip are for fitting the Robacta hose
pack to the robot or to the welding machine.
The adjusting clip supports TCP correction on the robot. The Robacta adjusting
clip can be adjusted in such a way that the position of the arc is maintained dur-
ing a corrective movement by the robot. The robot therefore needs no additional
corrective movement in the x or y direction.
1
1
Fitting the
mounting brack-
et (standard)
Danger due to work that has been carried out incorrectly.
This may result in serious injury and damage to property.
▶
▶
8
1
2
4
4
3
5
1
2
4
4
3
5
WARNING!
This installation must only be carried out by trained and qualified person-
nel.
Observe the safety rules in the power source operating instructions.
