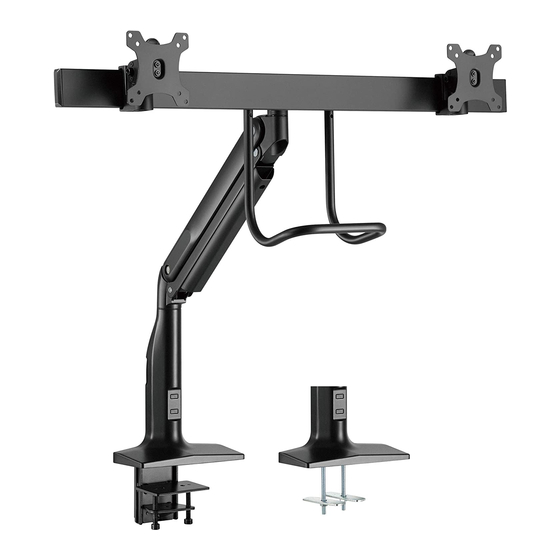

Pneumatic Arm Dual Monitor Desk Mount with Pull Handle
Instruction Manual
SKU: STAND-V102H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V102H
Summary of Contents for Vivo STAND-V102H
- Page 1 Pneumatic Arm Dual Monitor Desk Mount with Pull Handle Instruction Manual SKU: STAND-V102H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (D) to base (A) using M6x12 flat head bolts (R), and tighten with 4mm Allen wrench (T). Insert clamp bolts (H) into clamp bracket (G) as shown, then place clamp plate (F) on top of assembled clamp. - Page 4 STEP 2 Insert the adjustable arm (B) into the socket of the base, then secure using the 4mm Allen wrench (T) or a flat-blade screwdriver. Install rear cover (C) to clamp brace if the clamp option was used. STEP 3 Assemble monitor arm (I) to adjustable arm (B) using M6x12 bolts (P) with the 4mm Allen wrench (T).
- Page 5 STEP 5 Install the VESA plates (K) to monitors using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the rounded edges of the rear brackets are facing up. STEP 6 Pull back the latch on each support bracket on monitor arm (I), then place the monitors with VESA plates onto the support brackets.
- Page 6 STEP 7 While holding the arm in the horizontal position, adjust the gas spring tension using the 6mm Allen wrench (U). CAUTION - To avoid damage to the monitor and mount, always keep the arm in a horizontal position while making adjustments. STEP 8 Remove cable covers from base and adjustable arm.
- Page 7 STEP 9 Tighten or loosen the tilt joints using the 6mm Allen wrench (U). Slightly loosen the monitor arm for leveling using the 4mm Allen wrench (T) if needed. Adjust the monitor position as desired.
