Chapter 6: Maintaining Your Protector Demonstration Hood
3
2
4
Component Identification
Guardian 500 Installation Procedure
1. The enclosure comes prepared to except the Guardian™ 500
Airflow Monitor.
2. First remove the large 1.19" dia. gray hole plug. See Figure 2. See
Figure 3 only to reference internal assembly of the airflow monitor.
Locate the elbow, locknut, and washer and install it in the 1.19" dia.
hole per Figure 6-2 and Figure 6-3. The enclosure baffle pivots
down to install the elbow, washer and locknut.
3. Cut the 1" hose supplied with the kit to 15.5" approximate length and
install it between the airflow sensor and the elbow.
4. Secure the Guardian 500 Airflow Monitor to the enclosure with
double stick tape as shown in Figure 6-4. The airway passage
between the alarm module and the enclosure is now complete.
5. Locate the metal hose cover and install with double stick tape per
Figure 6-4.
6. Locate the power supply transformer. One end should already be
connected to the two-pin connector labeled 15 VDC on the back of
the alarm module and through the strain relief bushing. If
disconnected, then reconnect to power the airflow monitor. Plug the
115V power supply into a standard 115V duplex receptacle, the
back of the accessory FilterMate portable exhauster or the back of
the accessory light. For 230V, plug into a standard receptacle with
your specific outlet plug. (It is recommended that the airflow
monitor be connected directly to the FilterMate switched
auxiliary outlet so the airflow monitor is powered at the same
time.)
7. Installation is now complete.
Product Service 1-800-522-7658

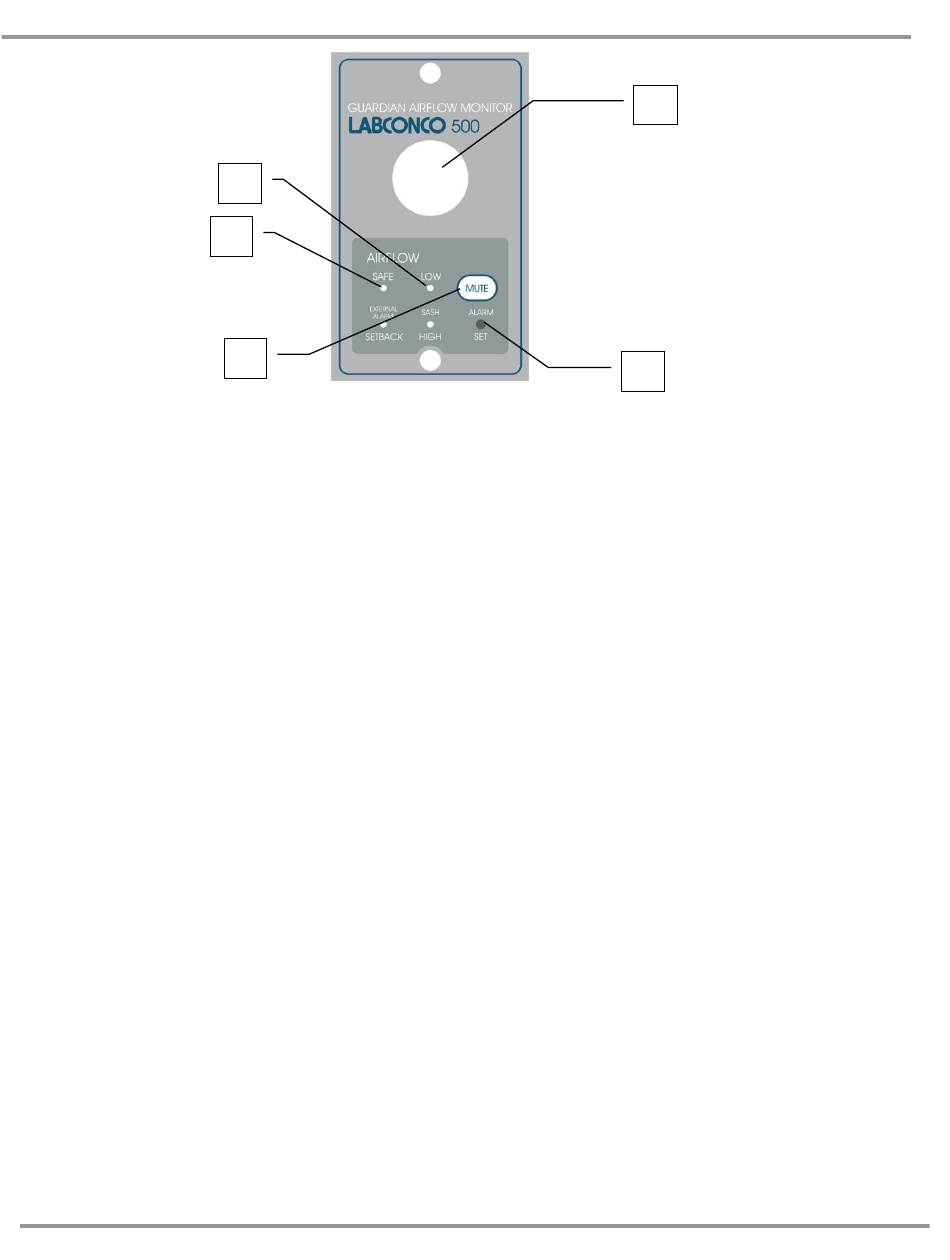

Figure 6-1
