Chapter 3: Getting Started
Connecting to the Exhaust System
WARNING: The weight of the exhaust ductwork system must be
supported independently of the superstructure or damage may
occur.
The exhaust system should be installed by a qualified HVAC
contractor.
The exhaust connection on the Demonstration Hood has been designed to
accept a 2" x 10" (5.1cm x 25.4cm) nominal transition adapter. See
Chapter 7 for ordering accessory transition adapters. Labconco
manufactures transition adapters for either top or bottom exhaust and for
both 5" dia. hose or 6" dia. duct. Review Chapter 2 for remote blower and
FilterMate Portable Exhauster exhaust prerequisites and review Chapter 7
for ordering blower exhaust equipment. For your convenience several
exhaust options are shown in Figures 3-2, 3-3, 3-4, 3-5 and 3-6. Consult
Labconco Customer Service should you require help sizing your blower for
the exhaust volume and system static pressure loss.
8

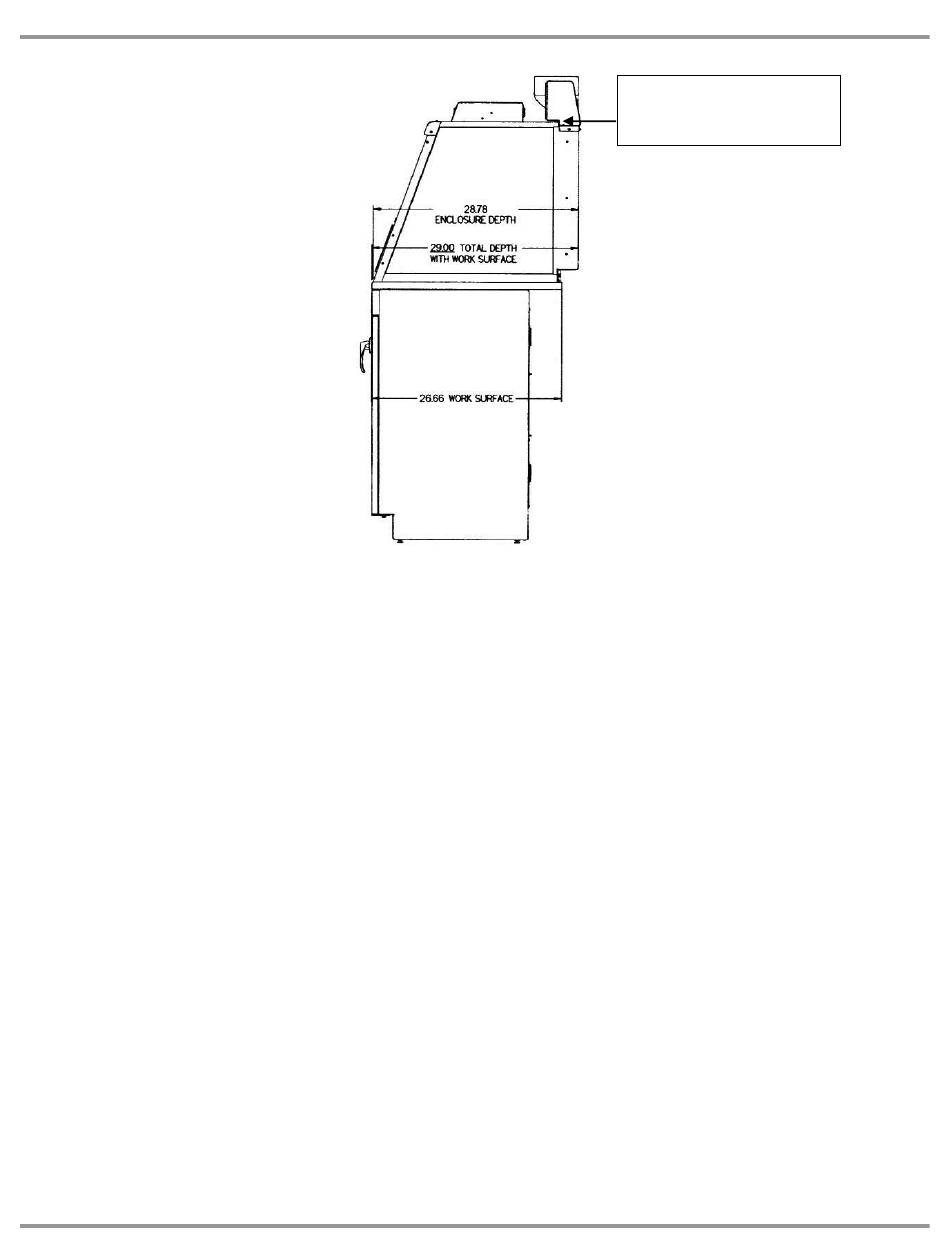

Figure 3-1
Side View of Typical Installation
Airflow monitor moved
forward per Chapter 6.
