USER MANUAL
MODEL:
KT-208 / KT-208WM
8" Touch Panel
P/N: 2900-301633 Rev 5
www.kramerav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT-208 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer KT-208

Summary of Contents for Kramer KT-208

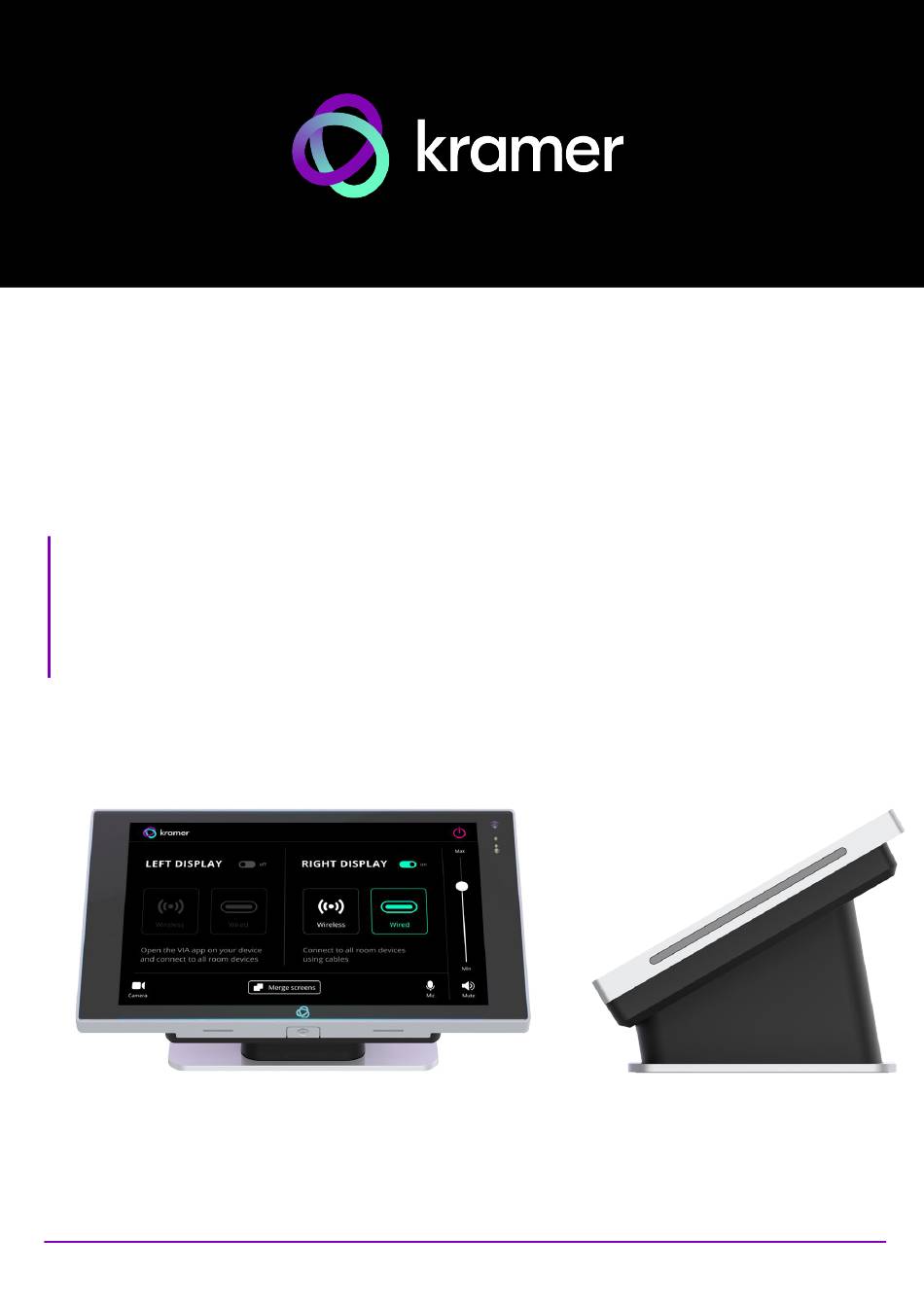

  • Page 1 USER MANUAL MODEL: KT-208 / KT-208WM 8" Touch Panel P/N: 2900-301633 Rev 5 www.kramerav.com...

  • Page 2: Table Of Contents

    Kramer Electronics Ltd. Contents Contents Introduction Getting Started Overview Typical Applications Defining KT-208 / KT-208WM 8" Touch Panel KT-208 Tabletop Mount KT-208WM On-Wall Mount Mounting the KT-208 / KT-208WM Mounting KT-208 on a Table Mounting KT-208WM on a Wall Connecting Options...

  • Page 3: Introduction

    European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/quality/environment.

  • Page 4: Safety Instructions

    The ambient light sensor can automatically adjust panel brightness based on the environment. See Display Settings to enable automatic brightness. The Laser proximity sensor will detect nearby motion to wake the panel up without requiring a touch. KT-208 / KT-208WM – Introduction...

  • Page 5: Overview

    KT-208 / KT-208WM is a touch panel that is ideal for any 24/7 Kramer−supported commercial AV or control application and features a user−friendly, fully customizable graphical user interface configured by Kramer software.

  • Page 6: Typical Applications

    Kramer Electronics Ltd. Typical Applications KT-208 / KT-208WM is ideal for the following typical applications: Control user interface in meeting and conference rooms, boardrooms, and auditoriums. • • Presentation of room scheduling. KT-208 / KT-208WM – Introduction...

  • Page 7: Defining Kt-208 / Kt-208Wm 8" Touch Panel

    Insert a pin and hold for 22 seconds to reset the device to factory default values. Micro USB Port For connecting to an adjacent on-wall USB device and for firmware upgrade. KT-208 / KT-208WM – Defining KT-208 / KT-208WM 8" Touch Panel...

  • Page 8: Kt-208 Tabletop Mount

    M2.5 screw. M3.2 Screw Opening For securing the wall mount bracket to the gang box. M3.2 Screw Opening For securing the wall mount bracket to the gang box. KT-208 / KT-208WM – Defining KT-208 / KT-208WM 8" Touch Panel...

  • Page 9: Mounting The Kt-208 / Kt-208Wm

    You may need to cut an opening in the table, if you need to pass cables from underneath. 1. Secure the stand to the table using the two 5/32” screws provided. KT-208 / KT-208WM – Mounting the KT-208 / KT-208WM...
  • Page 10 M2.5 screw. The table stand and touch panel are now ready for use. For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/KT-208WM. Using third-party cables may cause damage! KT-208 / KT-208WM – Mounting the KT-208 / KT-208WM...

  • Page 11: Mounting Kt-208Wm On A Wall

    5. Insert the M2.5 screw below the touch panel and secure the touch panel to the wall mount bracket. For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/KT-208WM. Using third-party cables may cause damage! KT-208 / KT-208WM – Mounting the KT-208 / KT-208WM...

  • Page 12: Connecting Options

    Kramer Electronics Ltd. Connecting Options You can power the KT-208 or KT-208WM using any or all of the following options: 1. Connect the PoE-enabled LAN RJ-45 connector to your local area PoE-enabled network. 2. Connect the power adapter to the 12V DC connector on the rear side. The power adapter is optional: It can be purchased separately.

  • Page 13: Controlling Kt-208 / Kt-208Wm

    Using Navigation Buttons or Gestures By default, KT-208 / KT-208WM run the Kramer Control agent and display its login screen at start- up. If available, you can also use the navigation buttons displayed at the bottom of the screen or set up your device to use gesture-based navigation.

  • Page 14: Using The Home Page

    Kramer Control. When the touch panel starts, the Kramer Control agent runs automatically. To exit the Kramer Control agent, enter the PIN (default 9428). If the PIN button is not displayed, swipe up from the Kramer icon at the bottom of the screen to bring up the PIN entry pop-up.

  • Page 15: Basic Settings Of Kt-208 / Kt-208Wm

    208WM Essential First Steps To exit the Kramer Control agent, enter the PIN (default 9428). If the PIN button is not displayed, swipe up from the bottom of the screen to bring up the PIN entry pop-up. To re-open the Control Agent click the icon on the Home page.

  • Page 16: Connecting To Wi-Fi Or Ethernet

    5. Select a Wi-Fi SSID, check Advanced options and enter the Wi-Fi information in the fields that appear, then press Connect. 6. If you are using 802.1X authentication, then add the certificate information. 802.1X is enabled. KT-208 / KT-208WM – Basic Settings of KT-208 / KT-208WM...

  • Page 17: Installing An 802.1X Certificate

    After installing the certificates, see Connecting to Wi-Fi or Ethernet on page for instructions on using the certificates. Ethernet must be disabled before setting-up Ethernet certificates. KT-208 / KT-208WM – Basic Settings of KT-208 / KT-208WM...

  • Page 18: Changing The Automated Firmware Update

    5. To change the time that the system checks for updates, press Set check time and select a new time. 6. Press OK to close the window and then press SET. Changing (or clearing) the URL will disable the updates. KT-208 / KT-208WM – Basic Settings of KT-208 / KT-208WM...

  • Page 19: Manually Updating The Firmware

     Defining KT-208 / KT-208WM 8" Touch Panel on page 7). To upgrade the firmware 1. Download the firmware update file from the Kramer website at https://www.kramerav.com/product/KT-208#Tab_Resources. Verify that you are using the correct KT-208 / KT-208WM firmware file as there maybe ...

  • Page 20: Changing The Automated Kramer Control Update

    5. Press Set check time to select a new time. 6. Press OK to close the window and then press SET. Changing (or clearing) the URL will disable the updates. KT-208 / KT-208WM – Basic Settings of KT-208 / KT-208WM...

  • Page 21: Setting The Display And Keyboard Language

    5. If you are using multiple languages, the order in which they are listed represents the priority assigned to them, change the order by dragging languages. 6. Press On-screen keyboard to select keyboard languages. The keyboard language has been set. KT-208 / KT-208WM – Basic Settings of KT-208 / KT-208WM...

  • Page 22: Using The Kramer Control Agent (Connecting To Brain)

    When the touch panel starts, the Kramer Control agent runs automatically (it is pre-installed on KT-208 / KT-208WM). If an interface has been defined, it will be displayed. If not, it will display the Kramer Agent welcome screen where you can enter the interface’s IP.

  • Page 23: The Kramer Control Agent Settings

    • (check box) By default, the Kramer Control box is checked, setting the tablet in Immersive Mode: In Immersive (full screen) mode, the system bars are hidden, and users must swipe up/down and enter a PIN to exit the Control Interface. If you are using a generic webpage (such as www.google.com), Immersive mode must be disabled.
  • Page 24 3. Lock Tablet (and USB) Enable/disable the PIN that restricts access to the Kramer Control agent and USB. Press Lock Tablet to change the PIN and view more options. USB locking is optional. Lock Tablet (slider) •...

  • Page 25: Using The Kramer Control Agent's Api

    Example: Setting the Launch URL in the Control Agent a) Open a browser window on a computer connected to the same network as the touch panel. b) Example: To set the Launch URL in the Kramer Control agent (on the touch panel), use the following format: https://<IP of the touch panel>...
  • Page 26 If more than one interface is defined in the Brain, the Brain’s IP and port must be followed by two parameters: /?Interface=<interface ID>&page=<page ID>. For example: https://192.168.0.56:9804/launchkramerurl?192.168.2.53:8001/?interface=e84f5fb8-c5a3- 4675-9006-d79d3e6cfe59&page=5913c07a-9a41-4fac-9870-e87b1ef719df KT-208 / KT-208WM – Using the Kramer Control agent (connecting to Brain)

  • Page 27: Methods Of Setting The Control Interface Url

    When the touch panel starts, the (pre-installed) Kramer Control agent runs automatically. You will need to set up its connection with the Kramer Brain, so that it can display the desired control interface. There are 3 possible methods of setting the interface IP in the Kramer Control agent: 1.
  • Page 28 Kramer Electronics Ltd. 2. Controlling the Kramer Control agent by API call This method of changing settings of the Kramer Control interface can be done remotely, without using the touch panel. For more information see Using the Kramer Control Agent’s API on page 25.
  • Page 29 5. Navigate back to the Builder, double click on the touch panel (in the Devices list) and paste the URL from the previous step to the Kramer Control URL. Assign it a Friendly Name. Figure 19: Kramer Control URL in the Builder 6.
  • Page 30 Kramer Electronics Ltd. Figure 20: System Events window open on Initialization actions Every time the Brain reboots or connects to the touch panel the interface will be updated. KT-208 / KT-208WM – Using the Kramer Control agent (connecting to Brain)

  • Page 31: Advanced Settings

    1. If the screen is locked, swipe up from the bottom to bring up the PIN entry pop-up and enter the PIN (default 9428). 2. From the Home page, open the Settings screen 3. Select Security Password to enable and enter the password. KT-208 / KT-208WM – Advanced Settings...

  • Page 32: Factory Reset & Reboot

     Insert a pin into the pinhole on the back (see Defining KT-208 / KT-208WM 8" Touch Panel on page 7) and hold for 22 seconds to reset the device to factory default values.  A second pinhole on the top, can be used to restart the device by inserting a pin for a few seconds.

  • Page 33: Modifying Display Settings

    The Content field in the Home page will be changed to the storage location of your content. The home page’s Content field defines the auto-start link to Kramer Control. Changing the value in this field is not recommended as it will disable Kramer Control. KT-208 / KT-208WM – Advanced Settings...

  • Page 34: Switching To Native Android Mode

    The Content field in the Home page will be changed to the storage location of your content. The home page’s Content field defines the auto-start link to Kramer Control. Changing the value in this field is not recommended as it will disable Kramer Control. Switching to Native Android Mode Switching to native Android mode turns the device into a regular android device, allowing you full control of its content.

  • Page 35: Technical Specifications

    (4 pcs) Weight KT-208: 1.35kg (includes tabletop stand) KT-208WM: 1kg Accessories Optional Power adapter. KT-208 Tabletop mount unit. KT-208WM On-wall mount unit and panel mount plate Specifications are subject to change without notice at www.kramerav.com KT-208 / KT-208WM – Technical Specifications...
  • Page 36 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
