Kramer KT-107 Quick Start Manual

KT-107 Quick Start Guide
This guide helps you install and use your KT-107 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

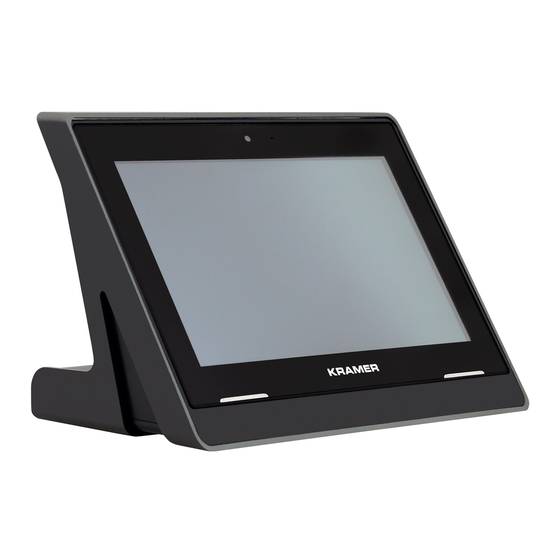

KT-107 Touch Panel
AC/DC adapter

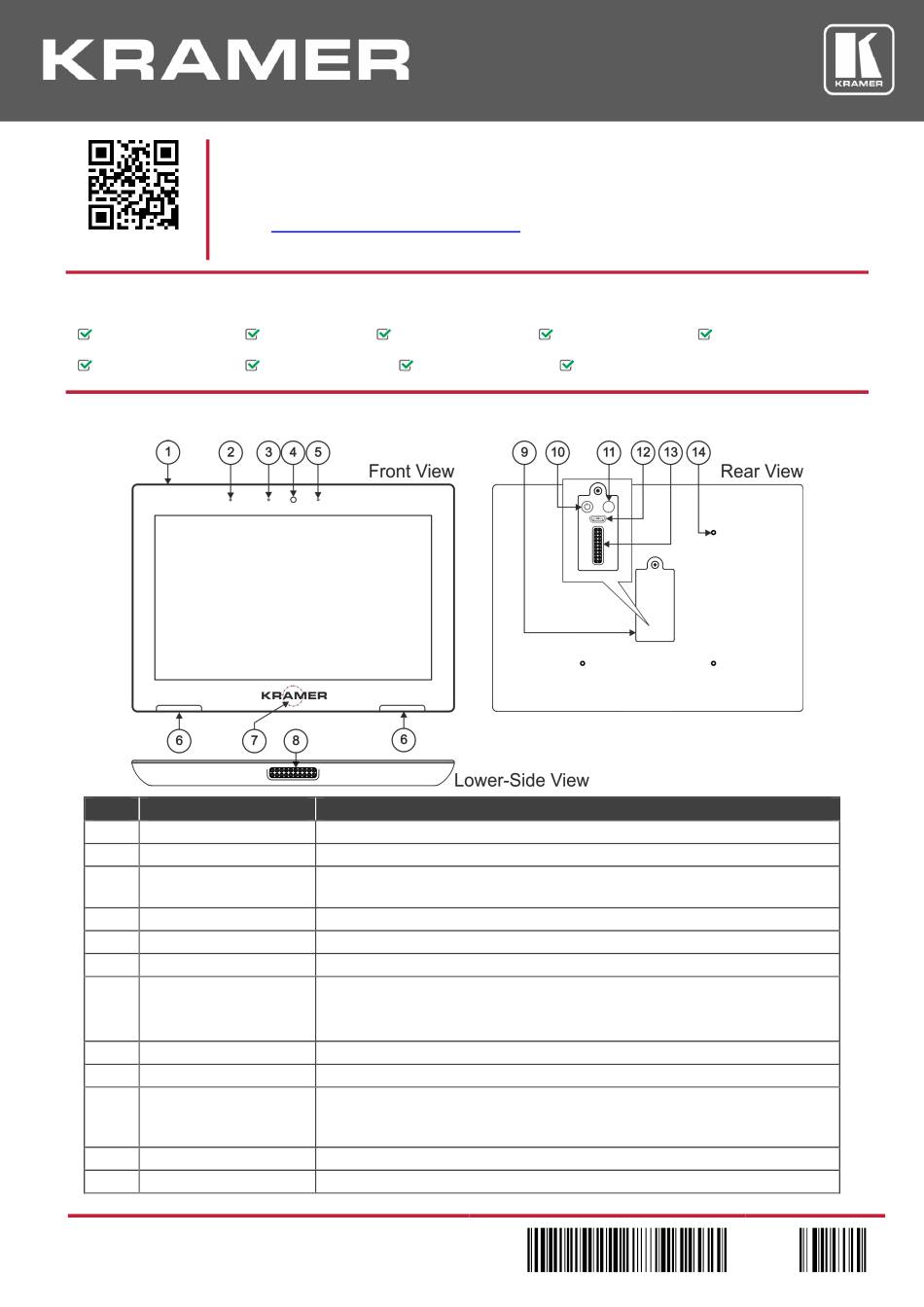

Step 2: Get to know your KT-107
# Feature
1 Hidden Reset Button
2 Light Sensor
3 Activity RGB LED
4 Camera
5 Microphone
6 Speakers
7 Control Button
8 Tabletop Mount Connector
9 Cover
10 Power Button
11 Volume-up Button
12 Micro USB Port
KT-107 Quick Start (P/N: 2900-300935QS REV 3)
www.kramerav.com/downloads/KT-107
Tabletop mount On-wall mount unit
Installation screws Panel mount plate
Function
Located on top-side. Insert a pin and hold for a few seconds to reset KT-107.
Automatically adjusts the screen brightness according to the room lighting conditions.
Lights green when powered, flashes green when charging the battery, lights red when
camera on.
For remote room viewing or video conferencing.
For audio communication, recording or conferencing.
To output the sound.
Press and hold (for 2 seconds) to open the pop-up menu which lets you power down
the unit, reboot it or return to the Home-page. The Control button is password
protected (default: Kramer).
For connecting to the tabletop mount.
Covers the wall mount connections and power button.
Press to power on the KT-107. When powered, press briefly to open the pop-up menu
and power down the device, reboot it or return to the Home-page. Press and hold to
power down the device immediately. This button is also used for firmware upgrade.
Used for firmware upgrade. Use also to increase KT-107 speaker volume.
For connecting to an adjacent on-wall USB device and for firmware upgrade.
to download the latest user manual and check if firmware
1 Quick start guide
1 right-angle OTG USB cable
P/N:
2 9 0 0 - 3 0 0 9 3 5 Q S
1 C-USB/MicroB cable
Rev:
3
