Kramer KT-1010 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

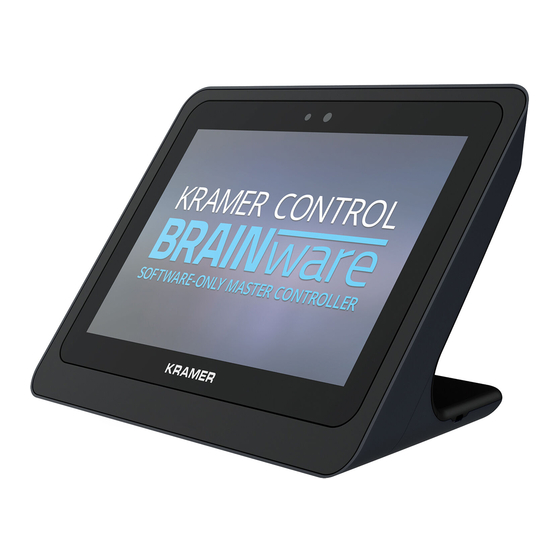

KT-1010 Touch Panel
KT-1010RB Touch Panel
(Reduced Bandwidth)
Tabletop mount
Step 2: Get to know your KT-1010 / KT-1010RB
# Feature
1 Volume setup button (+/-)
2 Up/Down (/) Keys
3 Exit Button
4 SD Card Slot and Cover
5 Power LED
6 3 Add-on USB Module Slots
7 2 Speakers
8 4 VESA Mounting Screw Holes (75x75mm)
9 12V DC Input with Cable Security Lock
10 Ethernet PoE RJ-45 Connector
11 USB Type A Port
12 Micro USB Port
13 2 Control I/O Ports
14 Power ON/OFF Switch
15 Headphone 3.5mm Mini Jack
16 Camera
17 Microphone
KT-1010, KT-1010RB Quick Start

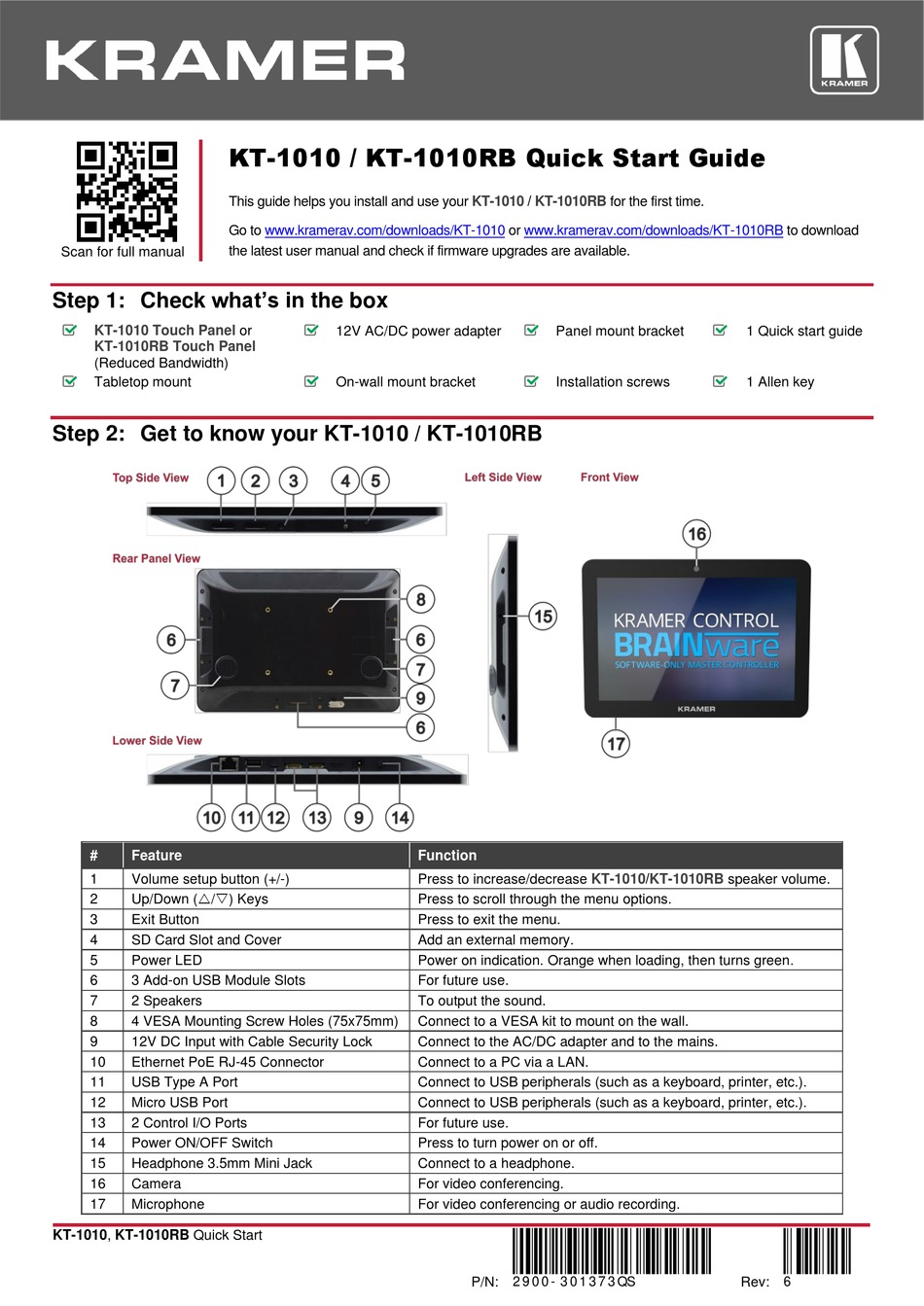

KT-1010 / KT-1010RB Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/KT-1010
the latest user manual and check if firmware upgrades are available.
or 12V AC/DC power adapter
On-wall mount bracket
KT-1010 / KT-1010RB
or www.kramerav.com/downloads/KT-1010RB
Panel mount bracket
Installation screws
Function
Press to increase/decrease KT-1010/KT-1010RB
Press to scroll through the menu options.
Press to exit the menu.
Add an external memory.
Power on indication. Orange when loading, then turns green.
For future use.
To output the sound.
Connect to a VESA kit to mount on the wall.
Connect to the AC/DC adapter and to the mains.
Connect to a PC via a LAN.
Connect to USB peripherals (such as a keyboard, printer, etc.).
Connect to USB peripherals (such as a keyboard, printer, etc.).
For future use.
Press to turn power on or off.
Connect to a headphone.
For video conferencing.
For video conferencing or audio recording.
P/N: 2 9 0 0 - 3 0 1 3 7 3 QS
for the first time.
1 Quick start guide
1 Allen key
speaker volume.
Rev: 6
