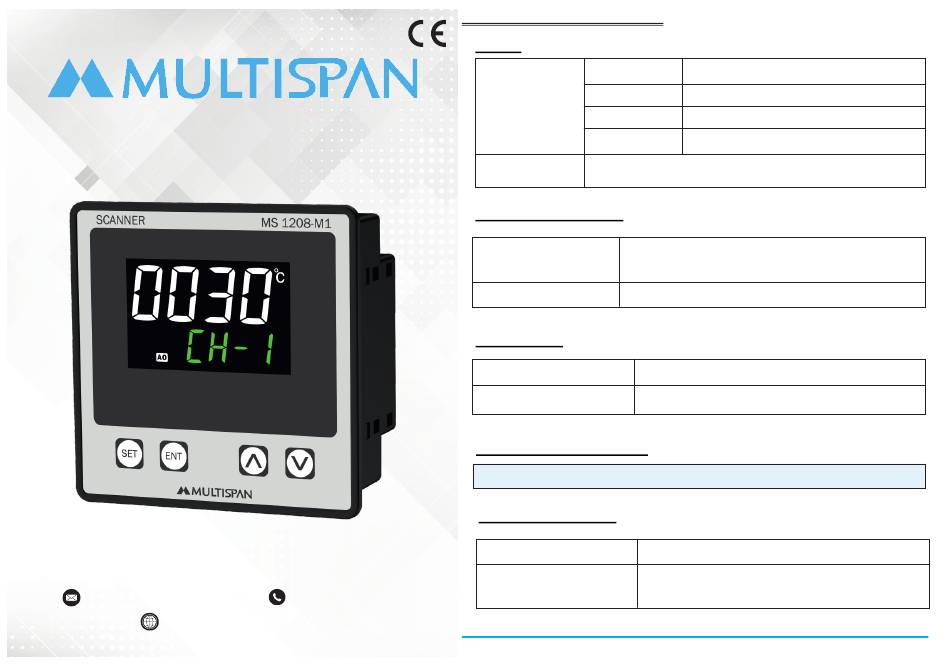

User Manual
MS-1208-M1
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
export@multispanindia.com
www.multispanindia.com
Technical Specification
+91-9978991483
INPUT:
Input
J
Input Types
K
PT-100
Resolution
J,K,PT-100/3W = 1°C
DISPLAY, KEY & LED:
Display
UPPER : 4 Digit 7 Seg 0.68", White LED
LOWER : 4 Digit 7 Seg 0.43", Green LED
Key
SET, ENT, DEC, & INC
DIMENSION:
101 (H) x 101 (W) x 54 (D) mm
Size
92 (H) x 92 (W) mm
Panel Cutout
OUTPUT SPECIFICATION:
RS-485 Modbus Output
AUXILIARY SUPPLY:
Supply voltage
Power consumption
(VA RATING)
Range
0 to 600°C DP Selectable
0 to 1200°C DP Selectable
-99 to 400°C DP Selectable
100 To 270V AC,50/60 Hz,
Approx 3VA @ 230V AC MAX,
Page 2
