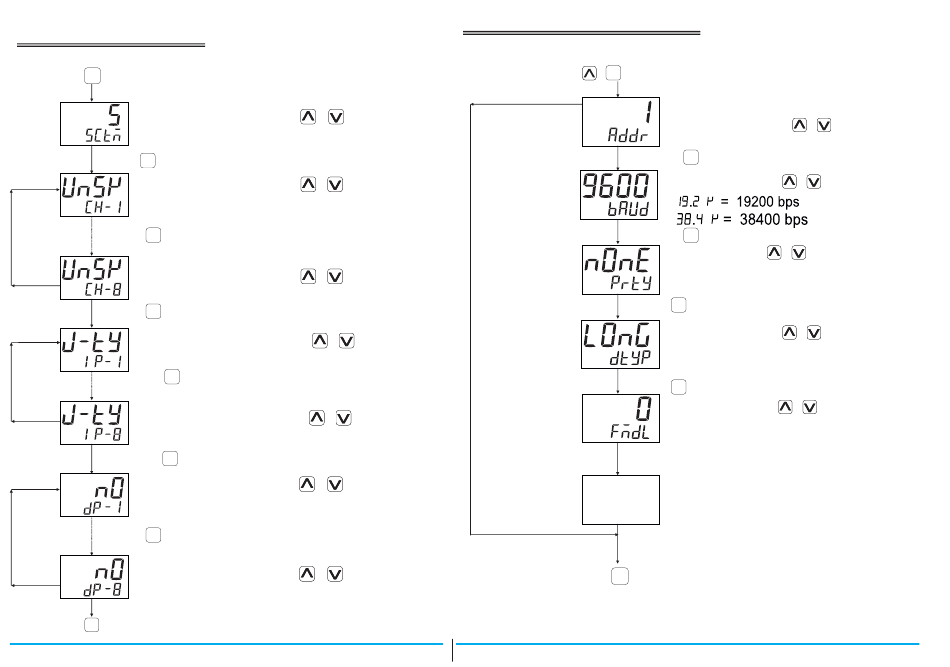

Parameter Menu
Press key for 3 Sec to enter in menu
SET
Display shows scan time use
(1 to 99)
Press key to go to next parameter
SET
Channel Skip or Unskip using
(Repeat the same procedure for all 8 channels)
Press key to go to next channel
SET
Channel Skip or Unskip using
Press key to go to next parameter
SET
Display shows sensor type. Use
(K type
& RTD)
Press key to go to next channel
SET
(Repeat the same procedure for all 8 channels)
Display shows sensor type.Use
Press key to go to next parameter
SET
Channel DP YES or NO using
(Repeat the same procedure for all 8 channels)
Press key to go to next channel
SET
Channel DP YES or NO using
Press key to save & exit
ENT
Modbus Parameter
& key to change it.
Modbus Address
& Key to change it.
& Key to change it.
& key to change it.
& key to change it
& Key to change it.
& Key to change it.
Page 5
Press + key for 5 sec to set modbus parameter
SET
Set modbus address using
(1 to 127)
Press key to go to next parameter
SET
Select baudrate using
Press key to go to next parameter
SET
Select parity using
Even
Odd
Press key to go to next parameter
SET
Select data type using
Flot
sign integer
Press key to go to next parameter
SET
Set frame delay using
(0 TO 99m Second)
1
1 Bit 2 Bit
stbt
Press key to save & exit
ENT
& key to change it
& Key to change it
& Key to change it
& Key to change it
& key to change it
