PV = Process Value
SV = Set Value

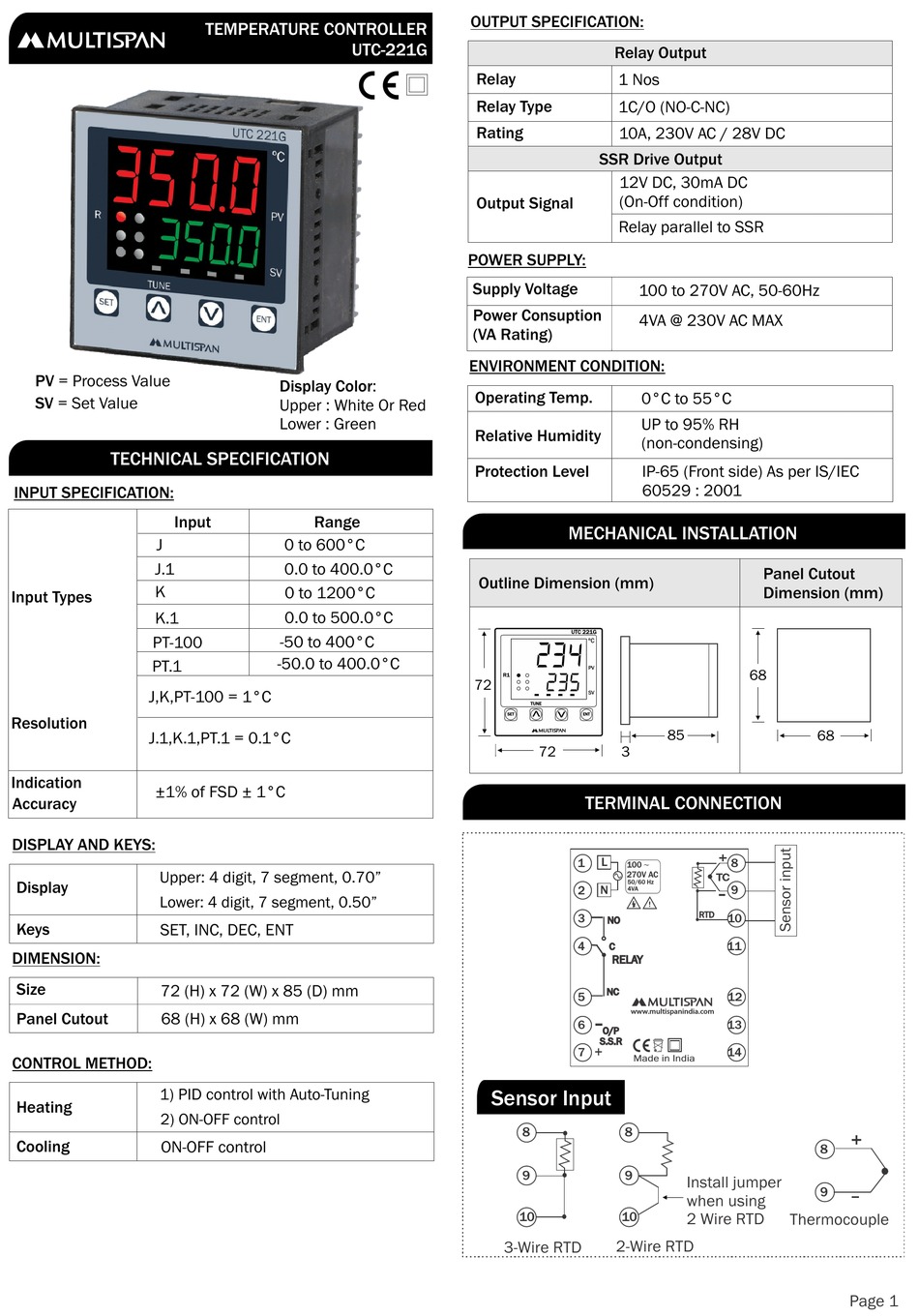

TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.70"
Display
Lower: 4 digit, 7 segment, 0.50"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 85 (D) mm
Panel Cutout
68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
Cooling
ON-OFF control

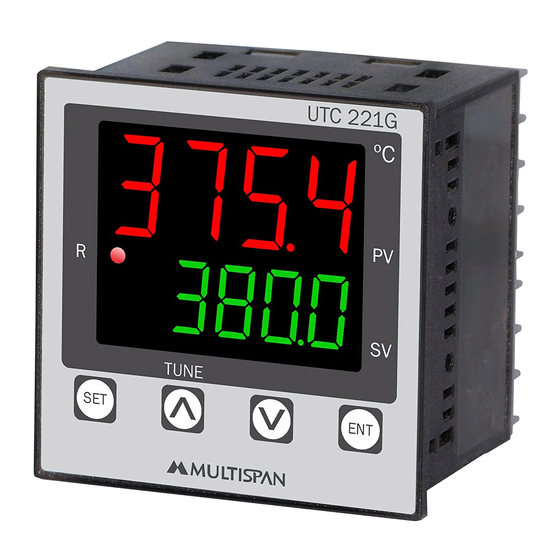

TEMPERATURE CONTROLLER
UTC-221G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
(On-Off condition)
Output Signal
Relay parallel to SSR
POWER SUPPLY:
Supply Voltage
100 to 270V AC, 50-60Hz
Power Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 221G
ºC
3 2 4
PV
R1
235
72
SV
TUNE
SET
ENT
72
3
TERMINAL CONNECTION
L
1
100
270V AC
50/60 Hz
2
N
4VA
3
NO
4
C
RELAY
NC
5
www.multispanindia.com
-
6
O/P
S.S.R
7
Made in India
Sensor Input
8
8
9
9
10
10
2-Wire RTD
3-Wire RTD
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
68
85
8
~
TC
9
-
!
RTD
10
11
12
13
14
Install jumper
when using
2 Wire RTD
Thermocouple
68
8
9
Page 1
