Maximum Bike Weight Rating: 150 lbs; Rated for Class III, 2 inch receiver style hitches. Carrier empty weight is 100 lbs. Approved for
TOOLS REQUIRED
Phillips Head Screw Driver
5/32" Allen Wrench
1/2" Wrench or Socket
3/4" Wrench or Socket
7/16" Wrench or Socket
7/8" Wrench or Socket
Adjustable Wrench (optional)
THIS ADD-ON MANUAL AND PARTS MUST BE USED IN COMBINATION WITH PARTS FROM THE ORIGINAL
PARTS LIST (MODEL #B02741)
REF. QTY.
DESCRIPTION
TT
1
44" TRAY
UU
2
42" BAR
VV
3
16" BAR
WW
10
5/16" X 5" CARRIAGE BOLT
XX
2
5/16" X 4.5" HEX BOLT
YY
4
1/4"-20 X 5" HEX BOLT
ZZ
2
1/4"-20 X 4.5" HEX BOLT
L & II
10
FLAT WASHER
Copyright© 2025, Lets Go Aero, Inc., All rights reserved.
011425Rev

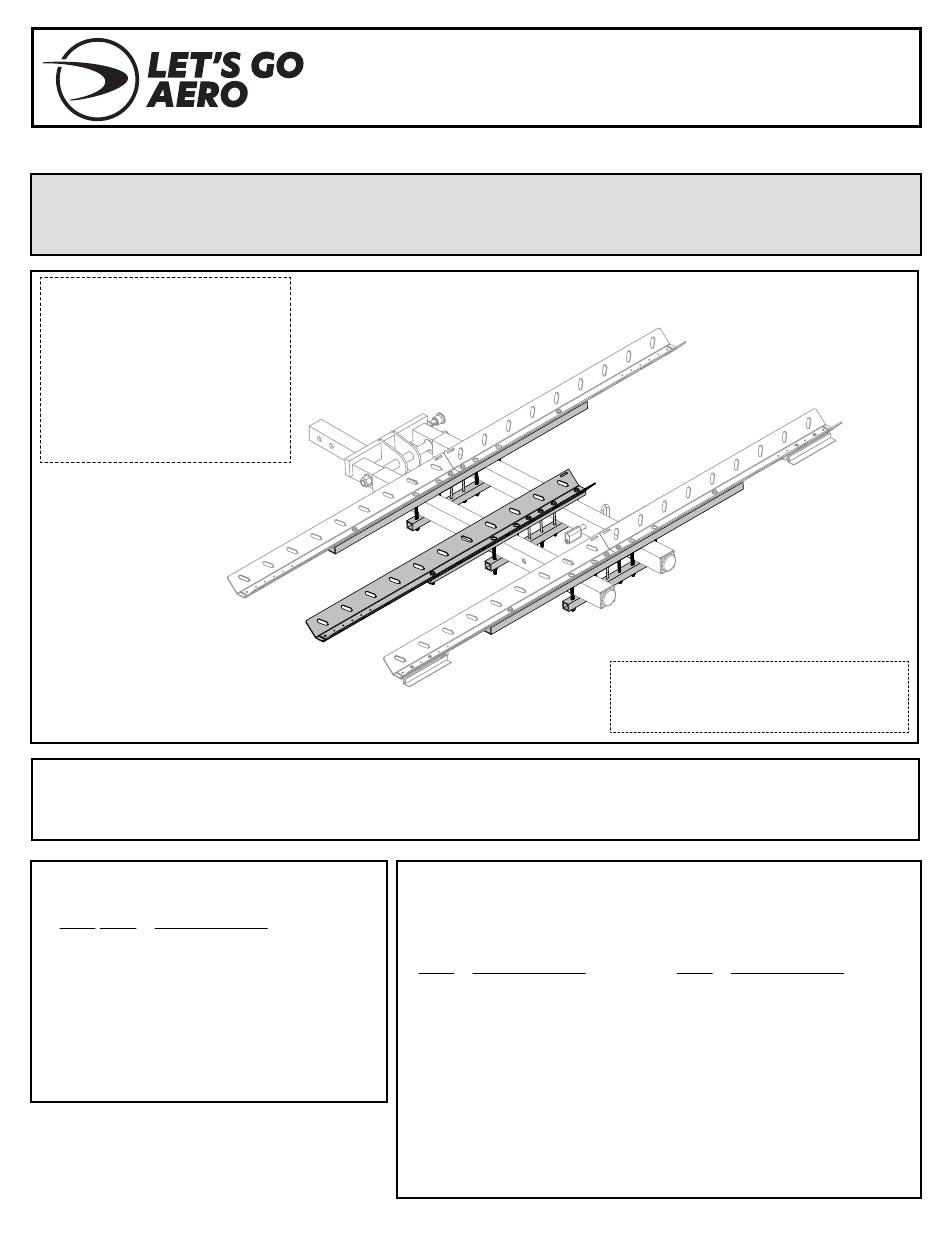

Heavy-Duty Upfit for TriQuad Carrier (model #B02691, sold separately)
PRODUCT MANUAL
Installation & Safe Use Operation
RV trailer use. Not rated for use with hitch extension related devices.
Be sure to review all recommended guidelines before use.
IMPORTANT!
TRIQUAD CARRIER #B02691, SOLD SEPARATELY
These parts below are included with the TriQuad Carrier (Model #B02691)
REF.
A
H
L
M
N
O
T
U
V
W
PARTS RE-USE QUICK REFERENCE
and are for re-use in this add-on assembly manual.
DESCRIPTION
TWINTUBE SPINE
SLIDE TUBES
5/16" WASHER
5/16" LOCK NUT
SAFETY CABLE
TRAY
LONG BAR
SHORT BAR
1/4-20 X 1.5" BUTTON
HEAD BOLTS
RAMP/TRAY BRACKET
Page 1 of 6
TriQuad
HD Upfit
™
NOTE: Extra hardware may be included.
Discard unused hardware after assembly.
REF.
DESCRIPTION
Y
1/4-20" LOCK NUT
CC
LED LIGHT BRACKET
DD
LED LIGHTS (L & R)
HH
WIRE HARNESS
II
1/4 FLAT WASHER
PP
WIRE LOOM CLAMP
#B02741
Patent Protected.
Advertisement
Related Manuals for Let's Go Aero TriQuad HD Upfit B02741
Summary of Contents for Let's Go Aero TriQuad HD Upfit B02741
- Page 1 TriQuad HD Upfit ™ Heavy-Duty Upfit for TriQuad Carrier (model #B02691, sold separately) #B02741 PRODUCT MANUAL Installation & Safe Use Operation Maximum Bike Weight Rating: 150 lbs; Rated for Class III, 2 inch receiver style hitches. Carrier empty weight is 100 lbs. Approved for RV trailer use.
-
Page 2: Installation Prep
STEP 1 TOOLS NEEDED: 5/32” ALLEN WRENCH & 7/16” WRENCH INSTALLATION PREP: [Fg. 15] Disconnect the Safety Cable [N] the TwinTube. Remove LED Lights [DD] from LED Light Bracket [CC]. Disconnect the LED Light Wareharness [HH] from the vehicle. Unbolt and remove Trays [O] from Slide Tubes [H]. - Page 3 STEP 2 CONT. TOOLS NEEDED: 1/2” WRENCH OR SOCKET & ??? II & Y L & M II & Y [Fg. 2a] STEP 3 TOOLS NEEDED: 1/2” WRENCH OR SOCKET & ??? Secure two Trays [O] (WITH ATTACHED LED LIGHT BRACKETS [CC]) to the Slide Tubes [H] using one (1) 42in Bar [UU], (1) 16in Bar [VV] and following hardware sections: 5/16in Carriage Bolts: Four (4) 5/16”...
- Page 4 STEP 4 TOOLS NEEDED: 1/2” WRENCH OR SOCKET Centered between the tray assemblies from Steps 8 & [Fg. 4] 9 secure one (1) Tray [TT], secure to the Slide Tubes ZZ & II [H] using one (1) Short Bar [U] (26in, Thin), (1) 16in Bar [VV] and following [Fg.
- Page 5 STEP 14 TOOLS NEEDED: 7/16” WRENCH OR SOCKET IMPORTANT!: When installing the LED Lights [DD] to the carrier, the LED Light with the blue wire **[Fg. 17b] must be installed to the drivers side and the LED Light with the yellow wire to the passenger side. Affix the LED Lights [DD] to the LED Light Brackets [CC] as shown (the blue wire to drivers side and the yellow wire to the passenger side).
-
Page 6: Carrier Operation
CARRIER OPERATION For TriQuad ramp use, slide-out operations, bike mounting and locking, and carrier fold operation, refer to your original TriQuad (#B02691) Manual. Let’s Go Aero Enclosed Carrier, Cargo & Bike Rack Guidelines Use of third party accessories with Let’s Go Aero cargo carriers will lead to the lapsing of Let’s Go Aero’s warranty and liability for any material damage or accidents.
