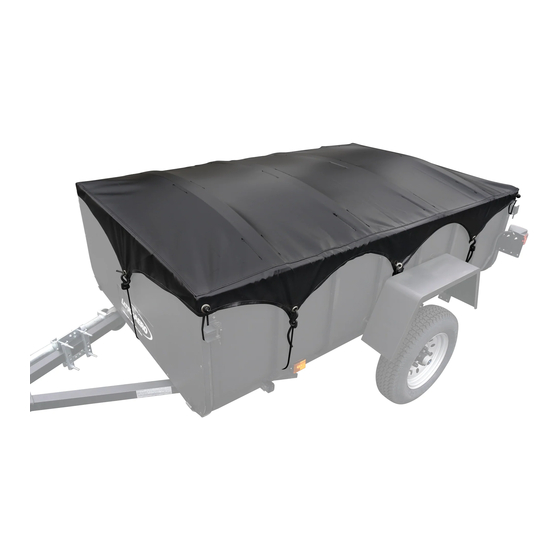

Summary of Contents for Let's Go Aero Seal Skin Tonneau Cover
Page 1
Seal Skin™ Tonneau Cover Part No. T01229 Accessory Soft Cover for LittleGiant & SpecOps Trailers ASSEMBLY AND OPERATION PARTS LIST Qty Description SEAL SKIN™ COVER BATONS BUNGEE CORD WITH HOOK CLIP & DEE SELF-DRIVING TEK SCREW SMALL BUNGEE WITH TOGGLE STEP 1: Insert three (3) Bungee Cords with Hook sets [C] between the trailer frame tube and the trailer body on each side of the trailer as shown [Figure 1].
Page 2
STEP 2: Using one (1) self driving Tex Screw [E], mount one (1) Clip & Dee [D] underneath the trailer Frame Angle on the back of the trailer. [Figure 3] Run the one (1) Bungee Cable With Hook [C] through the Clip & Dee trapping the Toggle Ball end of the Bungee Cord underneath the Trailer.
Page 3
Step 5: NOTE: Users with Rack Bar accessories (sold separately) should read the section “USE WITH RACK BAR ACCESSORIES” on page 5 before attaching the cover proceeding with this step. With the Support Batons [B] in place on the Seal [Figure 8] Skin cover [A], carefully turn the Cover face up and lay the Cover over the trailer as shown [Figure 8].
Page 4
Step 7: [Figure 11] *SHOWN WITHOUT COVER FOR CLARITY C-CHANNEL C-CHANNEL [Figure 12] *SHOWN WITHOUT COVER FOR CLARITY [Figure 13] *SHOWN WITHOUT COVER FOR CLARITY C-CHANNEL NOTE: Illustrations are shown without the Seal Skin Cover [A] for clarity. Working with one end at a time, insert both ends of C-CHANNEL each Support Baton [B] into the C-Channel track located on the top of either side of the trailer side...
Page 5
USE WITH RACK BAR ACCESSORIES Four (4) velcro Accessory Flaps are sewn into the cover to allow for Rack Bar Mounts (sold separately). RACK BAR (SOLD SEPARATELY) To use with Rack Bar mounts, align the mounts on the trailer to the Accessory Flaps on the cover. Once positioned, attach the cover (STEPS 5-8) under the Rack Bars and then close the velcro flap over each vertical mounting bar to seal the cover.
