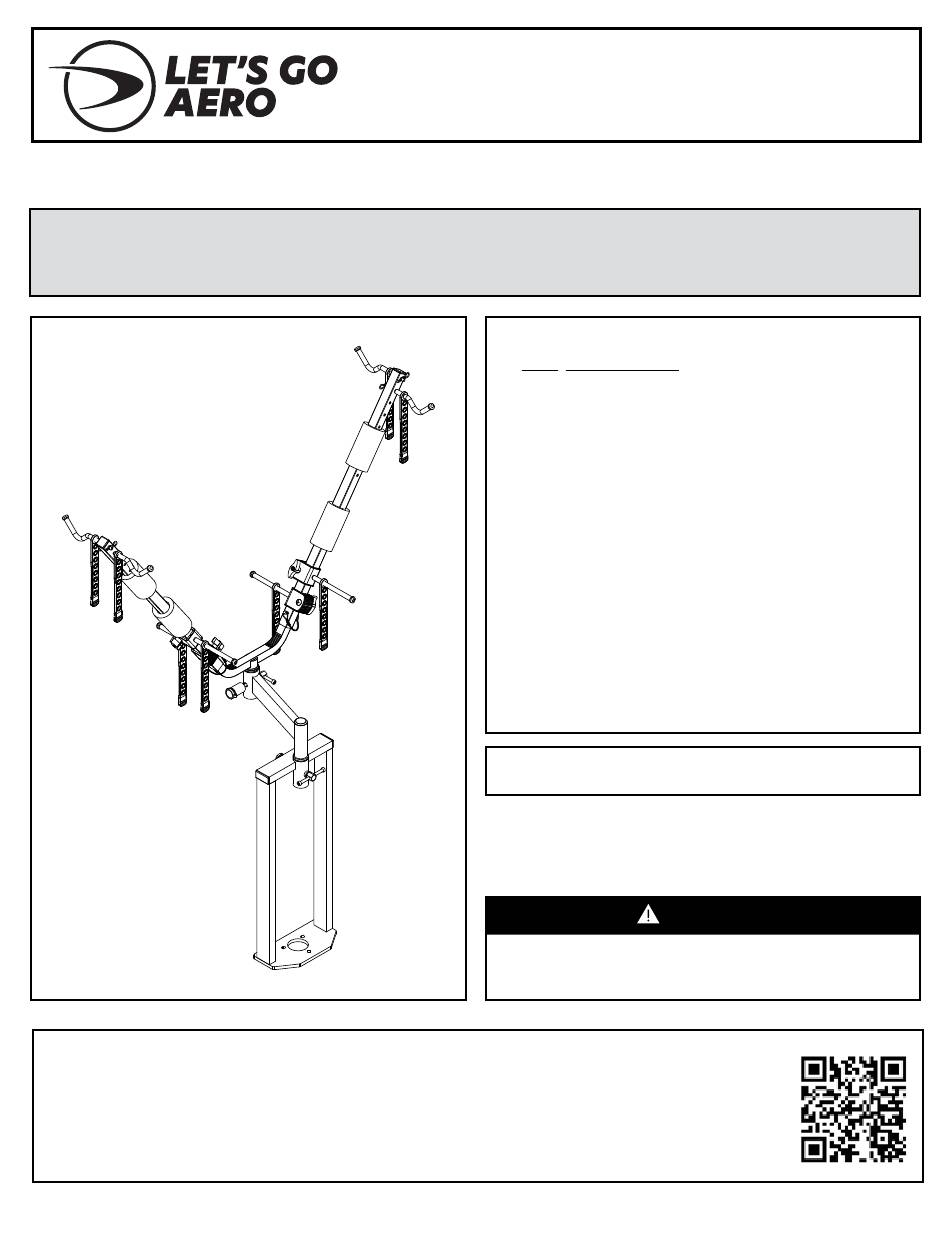

PRODUCT MANUAL
Installation & Safe Use Operation Highlights
Page 1 of 6
JACK-IT

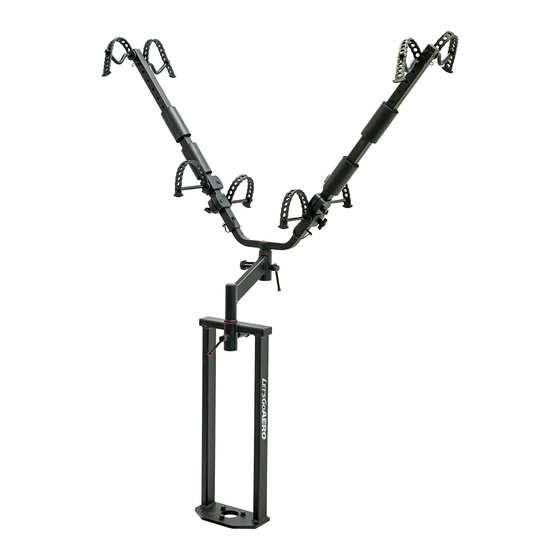

TwinSpin™ 2-Bike A-Frame Mount Carrier

PARTS

QTY. DESCRIPTION
A
1
POWER TOWER
B
3
3/8IN X 1.5IN HEX BOLT
C
3
3/8IN SPLIT WASHER
D
3
3/8IN WASHER
E
1
ROTATING STINGER
F
2
RED NYLON RING
G
2
SPIN PIN
H
2
1/2IN SPLIT WASHER
I
2
1/2IN FLAT WASHER
J
2
LOCK
K
1
STEM
L
2
WING
M
4
UPPER WHEEL CRADLE
N
4
LOWER WHEEL CRADLE
O
8
RUBBER STRAP
P
8
RETAINER CLIP
Q
2
WIRE LOCK
WAX
R
1
S
1
CABLE

Tools Needed:

9/16" Wrench or Socket
For More Information & Accessories,
Visit our Website - www.LetsGoAero.com
For Technical Support & Product Questions Contact Us at
877-464-2376 or 719- 630-3800
Email: Support@LetsGoAero.com
CAUTION:
This product may effect the turning radius on some
vehicles when bicycles are loaded. Always confirm
available turning radius before travel.
TS
®
#B02424

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JACK-IT TS TwinSpin B02424 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Let's Go Aero JACK-IT TS TwinSpin B02424

  • Page 1 JACK-IT ® TwinSpin™ 2-Bike A-Frame Mount Carrier #B02424 PRODUCT MANUAL Installation & Safe Use Operation Highlights Maximum Weight Rating: 40 lbs per bike, Maximum Tire Size: 2.75in PARTS QTY. DESCRIPTION POWER TOWER 3/8IN X 1.5IN HEX BOLT 3/8IN SPLIT WASHER 3/8IN WASHER ROTATING STINGER RED NYLON RING...
  • Page 2 STEP 1 Tools Required: 9/16” Socket or Wrench Remove the Tongue Jack from the coupler on the trailer (customer supplied). Place the tongue jack through the Power Tower and secure with three (3) 3/8in x 1.5in Hex Bolts, three (3) 3/8in Split Washers, and three (3) 3/8in Flat Washers as shown.
  • Page 3 STEP 3 In the same manner as Step 2, install the Stem [K] with a Red Nylon Ring [Fg. 3] [F] into the Stinger [E] using one (1) included No-tool Spin Pin [G], one (1) 1/2in Split Ring Washer [H] and one (1) 1/2in Flat Washer [I] as shown. [Fg.
  • Page 4 STEP 6 Insert two (2) Upper Wheel Cradles [M] with Rubber Straps [Fg. 6] [O] facing in opposite directions into the upper holes of the Wing [L] as shown. [Fg. 6] Secure each Wheel Cradle [M] with a Retainer Clip [P]. STEP 7 Slide both Wings [L] onto the Stem [K] [Fg.
  • Page 5 Operation: Bicycle Mounting Hang bicycles by the tires on the Upper [Fg. 8a] Wheel Cradles [M] with the chain rings to the outside. [Fg. 8 & 8a] Adjust the Foam Bumpers located on the Wings [L] to protect the frame of the bicycle.
  • Page 6 LOCKING BICYCLES Wrap the Cable [S] around the bicycle frame and slide the small loop through the large loop on the Cable to create a closed loop around the bicycle. [Fg. 11] Secure the the small loop of Cable [S] onto the Spin Pin [G] and apply the Lock [J].
