Let's Go Aero PegBoard B01588 Assembly And Operation

ASSEMBLY AND OPERATION

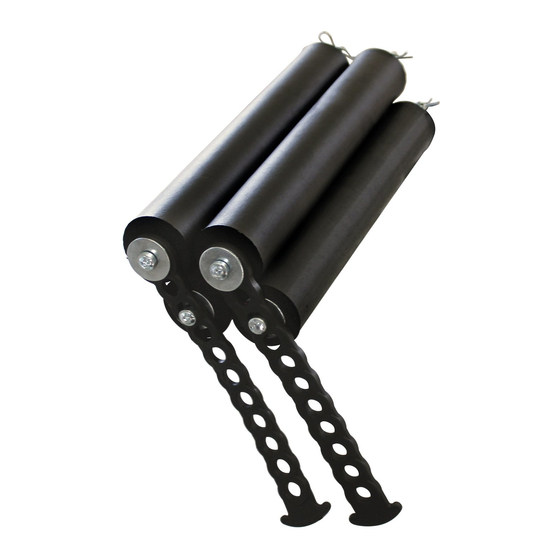

PARTS LIST

Qty Description
A 2 Upper Foam Peg with Strap
B 2 Lower Foam Peg
C 4 Retainer Clip

Preparation

Remove Upper Wheel Cradles from your VRack
Bicycle Carrier on one side only. On the same side,
depending on your VRack model, untighten the lower
Wheel Cradles and slide them down until they are out
of the way (if applicable).
TIP: For simple gear access use the side located
furthest from the vehicle.

Step 1:

Using one Upper Foam Peg with the attached Adjustable Rubber Strap [A],
remove the pre-attached Retainer Clip [C] and slip the same thin end of the
Peg into the first hole at the top of the VRack Wing. Re-insert the Retainer
Clip to secure the Peg to the Wing.
NOTE: While using the holes located closest to the top is recommended,
actual placement of the Pegs along the Wings may vary depending on the
equipment to be transported.

Step 2:

On the same VRack Wing, repeat Step 1, this time using a Lower Foam Peg
[B] that does not have a strap on the 3rd hole down from the top leaving a
"one hole" gap between the Upper & Lower Pegs [A & B]. This is the tightest
possible Peg position and is ideal for snowboard & ski transport.
NOTE: Lower Peg [B] position may vary depending on thickness of the
equipment to be transported. Always use the tightest possible Peg position.
C
B
Page 1 of 3
PegBoard™
Part No. B01588
Padded Ski, Snowboard & Tool Option
for VRack™ Model Bicycle Carriers
A
A
WING
A
B
PB Manual-073117
Copyright © 2017 Lets Go Aero Inc.
C
C
