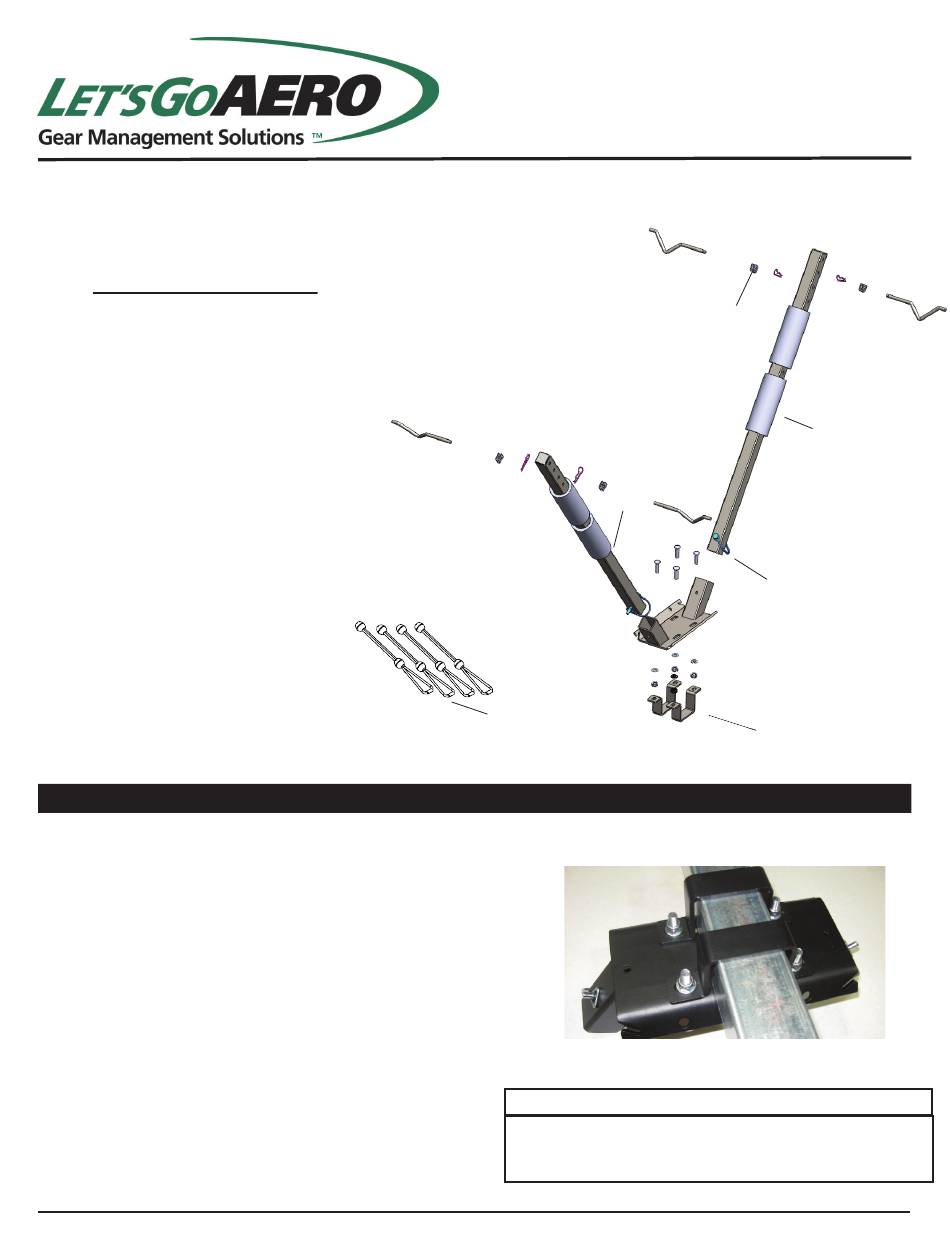

Parts List
Description
WingMan Base
Hat Brackets
Carriage Bolts & Hard-
ware sets
Wing with Pads
Wire Lock Pin
Double Toggles
Wheel Cradle Assembly
Wheel Cradle
Toggle Balls
Hair Pin Clip
Assembly
Step 1: Attachment of WingMan Base Plate to 2" Square
Tube Surfaces
Locate the WingMan base, the two Hat brackets and the four
5/16" carriage bolts, washers and locking nuts.
Position the WingMan base on the top surface of the tubing
mount and attach the two Hat brackets around the tubing and
onto the bottom of the WingMan base with the locking nuts and
washers.
Tighten the four bolt/nut combinations so that even amounts
of bolt thread appear below each of the locking nuts, as the
Hat Bracket compresses the WingMan base plate against the
top surface of the tubing. Tighten the nuts until the tabs on the
Hat bracket start to defect, or until 12 foot pounds of torque is
achieved.
BVK093 090815
U.S. Patent No: D684917
Qty
1
2
4
2
2
4
4
4
4
WingMan™ 2-Bike Carrier
Wheel Cradle
Double
Toggles
Periodically check the carriage bolt tension in the event any
loosening has occurred.
Part No. BVK093
User Manual
Assembly
Wing with
Pads
Wire Lock Pins
Hat Brackets
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Let's Go Aero WingMan BVK093
Summary of Contents for Let's Go Aero WingMan BVK093
- Page 1 WingMan™ 2-Bike Carrier Part No. BVK093 User Manual U.S. Patent No: D684917 Parts List Description WingMan Base Wheel Cradle Hat Brackets Assembly Carriage Bolts & Hard- ware sets Wing with Pads Wire Lock Pin Wing with Pads Double Toggles Wheel Cradle Assembly Wheel Cradle Toggle Balls Hair Pin Clip...
- Page 2 WingMan™2-Bike Carrier Step 2: Assemble Wings Step 3: Attach Wheel Cradle Assembly Slide Wings into the Base pockets and secure the Determine the approximate center-to-center distance Wings to the Base with the Wire Lock Pins. between the hubs of the bike wheels and attach the wheel cradles to the Wings with the Hair Pin Clips to match this distance.
-
Page 3: Product Registration
WingMan™2-Bike Carrier Before Transit: Attempt to shake the carrier to verify the carriage bolts are tight. Verify that the safety pins are indeed locking the Wings to the Base Pockets. Verify the Toggles are securing your bicycles wheels and frame to the carrier as explained earlier. WINGMAN V2 RACK GUIDELINES The WingMan™...
