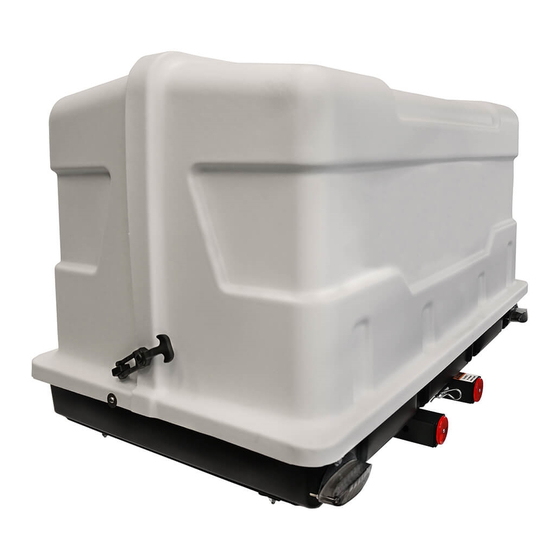

The GearDeck™17 Cargo Carrier is a highly versatile, modular system for multi-use purposes. The TwinTube®
UBI hitch rack is the structural foundation for the GearDeck capsule. Assembly consists of the TwinTube® UBI
installation on the hitch receiver, followed by installation of the GearDeck™ 17 capsule on the TwinTube® UBI.
Part One
TwinTube UBI® Installation Page 2
Part Two
GearDeck™ 17 Installation Page 7
Installation Tips:
•
Keep this manual for future reference.
•
The GearDeck™ 17 system fits a 2" size receiver style hitch and requires a minimum
of a Class II tow rating. If your vehicle has a Class II, 1.25" size hitch, an adapter may
be used.
•
Keep in mind that the TwinTube® UBI is a precision built product and some consideration
of "alignment" is necessary when first assembling the system. The TwinTube® UBI
uses "symmetry" in a balanced manner, so when bolting the system together for the
first time, tighten all hardware in a two step process - first tighten the assembly to set
the components in position and then, when the TwinTube® UBI is installed, securely
tighten all hardware.
If this product was purchased from a dealer, all documentation MUST be furnished to the customer.
U.S. And International Patent Numbers: 6,409,203; 6,609,725; 6,945,550;6,910,609; Patents Pending
HDK796/HDK802 0415
G
D
ear
i
n
. HDk796 / HDk802
Tem
o
User Assembly and Operation Manual
Part Three
Safe Use and Operation Page 9
™ 17 c
eck
arGo
T
elescopinG
(aka GD 4117-WB / GD 4117-BB)
c
arrier
s
ysTem
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Let's Go Aero GearDeck 17
Summary of Contents for Let's Go Aero GearDeck 17
- Page 1 ™ 17 c arGo arrier elescopinG ysTem . HDk796 / HDk802 (aka GD 4117-WB / GD 4117-BB) User Assembly and Operation Manual The GearDeck™17 Cargo Carrier is a highly versatile, modular system for multi-use purposes. The TwinTube® UBI hitch rack is the structural foundation for the GearDeck capsule. Assembly consists of the TwinTube® UBI installation on the hitch receiver, followed by installation of the GearDeck™...
-
Page 2: Item Description
® uBi nsTall iTcH eceiver ® i ilenT iTcH nsTallaTion The TwinTube® UBI system features separate components that extend and enhance the load carrying Two Silent Hitch Pins are included with TwinTube® UBI capabilities of a receiver style hitch. to prevent the inherent rattle that occurs when placing an accessory device (in this case, TwinTube®... - Page 3 The two 44" Wings (F) form the mounting surface of Place the Fixed Tubes (E) between the top of the V- the TwinTube UBI®. The Wings are adjustable for Plates (B) and place the Top Plate (C) on top. Install different platform widths, but they must be at least a 1/2" Shoulder Bolt (P), two 1/2" Washers (Q) and a 12” apart to support a load properly. 1/2" Locking Nut (R) in each hole (2 per Tube). Use a The first Wing (F) should be mounted as close 3/4" Wrench and a 3/4" Socket to position tighten the to the Top Plate (C) of the Spine Assembly as bolts.
- Page 4 ™ 17 c Attach the Safety Cable (L) to the passenger side nsTall apsule V-Plate (B) and the Safety Cable Retainer (U) on The GearDeck ™ 17 system is completed with the assembly of the GearDeck™ 17 capsule’s tray and lids. the Frame using the Quick-Links attached to the cable. This will ensure that the Frame cannot slide arTs DenTificaTion off the Spine inadvertently. To remove the Frame Tools Needed Parts List and carrier from the Spine, simply undo one Quick...
- Page 5 & o peraTion Place the Tray over the wings of the TwinTube® Be sure to follow these guidelines to prevent possible hazards from misuse. UBI and line up the holes in the tray with the holes in the wings. Place the D-Ring Tie Downs Vehicle and Hitch Receiver Compliance over the outer most set of holes on each end of This GearDeck™ 17 Cargo Carrier fits 2" size hitch receivers and is rated for a Class II tow capability or higher (Class II,...
