ASSEMBLY AND OPERATION
STEP 1:
Starting on one side of the Carrier. Remove the existing two (2) outer
floor bolts as shown. [Fg. 1]
Set the existing washers and nuts aside; the bolt may be discarded.
STEP 2:
Secure the PRO Bike Mount [A] into the carrier using the
supplied 5/16 x 18 Hexhead Bolts [B] and the existing washers
and Nuts removed in Step 1. [Fg. 2]
Copyright© 2021, Lets Go Aero, Inc., All rights reserved.
H02240-122021rev
BlackBox PRO Two Bike Mounts

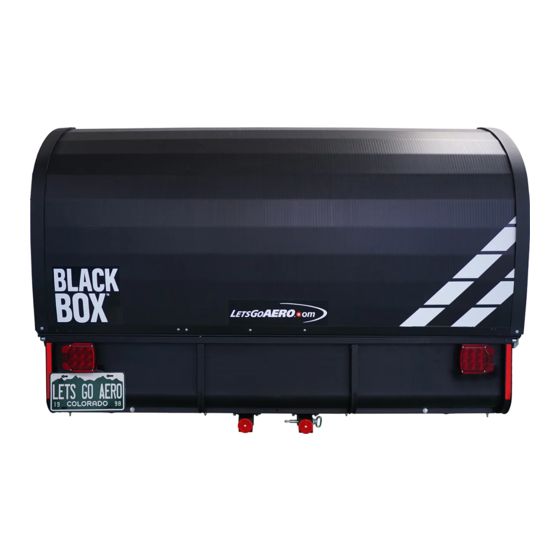

Custom Fit Accessory For Black Box PRO Enclosed Carrier
For More Information & Accessories,
Visit our Website - www.LetsGoAero.com
Contact Us at 877-474-2376 or 719-630-3800
Email Support@LetsGoAero.com
TOOL: METRIC ALLEN TOOL #5, 3mm SOCKET WRENCH
PAGE 1 OF 2
Part No. H02240
(Sold Separately #B02196)
PARTS LIST
Qty Description
A
2
PRO BIKE MOUNT
B
4
5/16 X 18 HEXHEAD BOLT
C
8
PINS
D
4
RUBBER STRAPS
BUTTON HEAD
BOLT
[Fg. 1]
B
B
A
Revision Date: 12/20/21
[Fg. 2]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Let's Go Aero BlackBox PRO
Summary of Contents for Let's Go Aero BlackBox PRO
- Page 1 BlackBox PRO Two Bike Mounts Part No. H02240 Custom Fit Accessory For Black Box PRO Enclosed Carrier (Sold Separately #B02196) ASSEMBLY AND OPERATION PARTS LIST Qty Description PRO BIKE MOUNT 5/16 X 18 HEXHEAD BOLT PINS RUBBER STRAPS For More Information & Accessories, Visit our Website - www.LetsGoAero.com...
- Page 2 STEP 3: Install one (1) Pin [C] into each [Fg. 3] [Fg. 4] available location on the PRO Bike Mount [A] by pulling the ‘Knobs’ out and inserting the Pins. [Fg. 3 & 4] HANDLE TIP: Pins should ‘click’ when fully seated.
