Overview
4. Overview
®
This Intesis gateway allows to integrate M-Bus devices into Modbus TCP systems easily.
The aim of this integration is to make M-Bus devices accessible from a Modbus control system or device to get
the same behavior as if the M-Bus device was part of the Modbus installation.
For this, the Intesis gateway acts as a Modbus TCP server device in its Modbus interface, allowing it to read/write
points from the Modbus client device(s). From the M-Bus point of view, the gateway acts as an M-Bus level
converter and Master device (EN-1434-3). The gateway performs the readings of the M-Bus slave device(s) by
automatic continuous polling, or on demand (to reduce battery consumption).
The gateway configuration is carried out through the Intesis MAPS configuration tool.

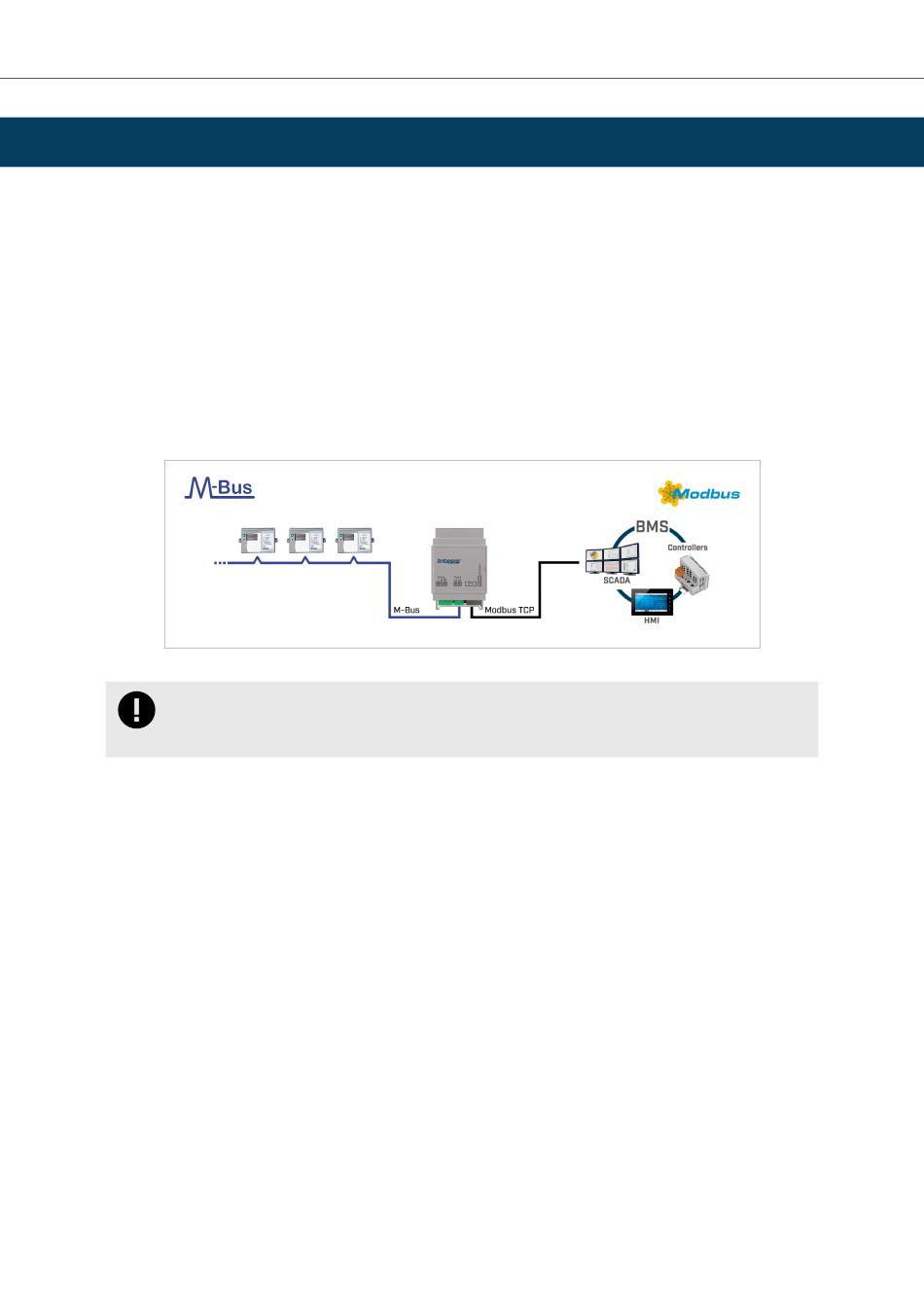

Figure 1. Integration of M-Bus devices into Modbus TCP installations
IMPORTANT
This document assumes that the user is familiar with Modbus and M-Bus technologies and their
technical terms.
4.1. Inside the Package
Items included:
• Intesis INMBSMEBxxx0100 Protocol Translator Gateway
• Installation guide
4.2. Gateway Main Features
• Embedded level converter. Direct connection to M-Bus devices with no extra hardware required.
• Scan function: detect M-Bus devices and their available registers automatically.
• Import/Export of M-Bus device templates.
• Baud rate configurable within the M-Bus allowed range (300 to 9600 bps. The devices are normally configured
at 2400 bps).
• Specific parameters and timeouts are available to maximize compatibility with any possible peculiarity
between different meter manufacturers.
• Availability of variables for communication errors, both at meter and general level, helping you to know if the
communication with one or more meters has failed.
• Flexible configuration using the Intesis MAPS configuration tool.
