Intesis MAPS Configuration and Monitoring Tool M-BUS to Modbus TCP Server Gateway
8.2.5. Configuration Tab
Select the Configuration tab to configure the connection parameters. This window contains three subsets of
information: General (gateway general parameters), Modbus server (Modbus interface configuration), and M-Bus
(M-Bus interface parameters).

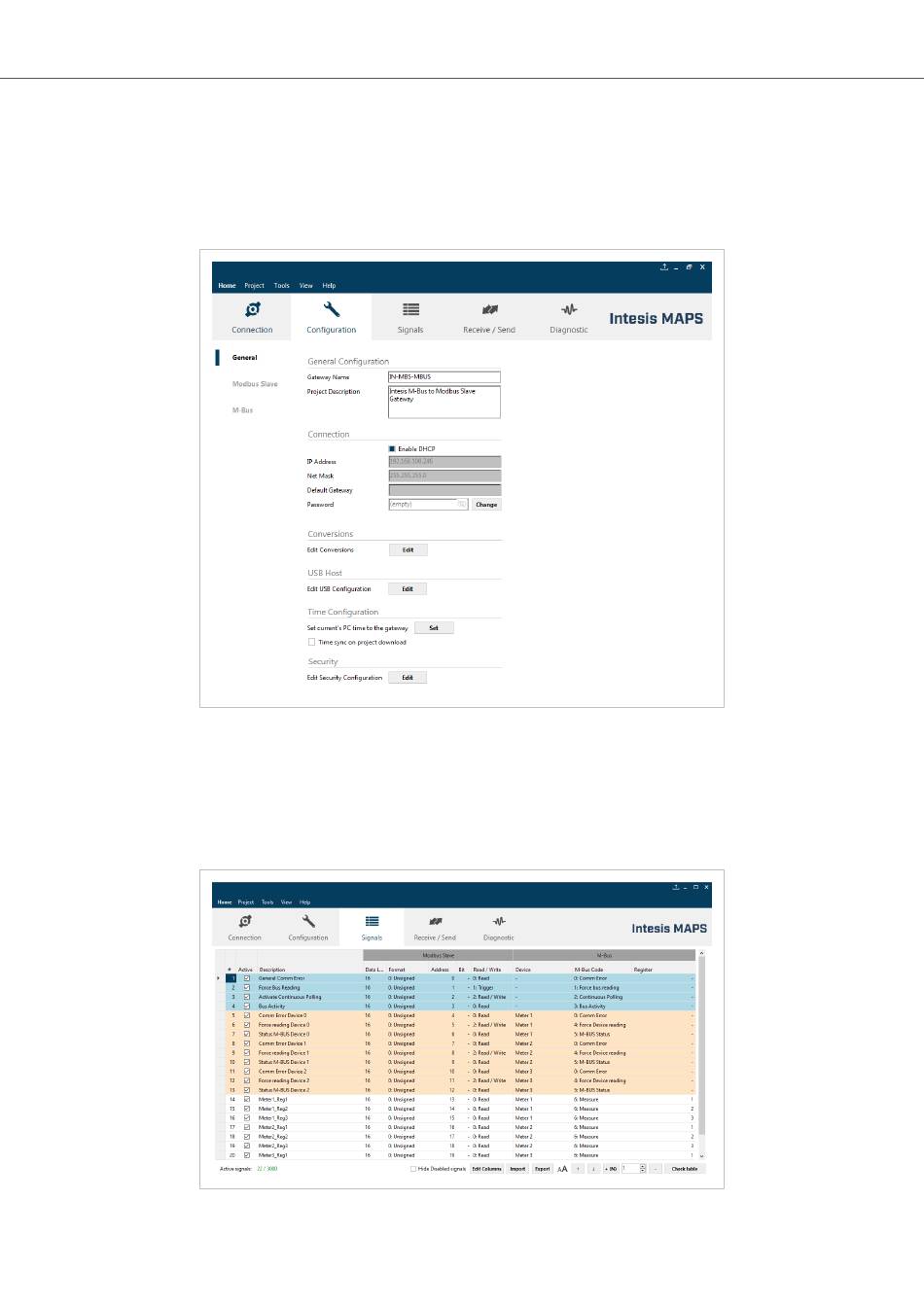

Figure 6. Configuration tab window
8.2.6. Signals Tab
All available objects, object instances, their corresponding Modbus register, and other main parameters are
listed in the Signals tab. More information on each parameter and how to configure it can be found in the Intesis
MAPS user manual.
Figure 7. Signals tab for the Modbus - integration
USER MANUAL Version 1.0.2 Page 19 of 22
