Truflo — TKS | TK3S Series
®
In-Line Paddle Wheel Flow Meter Sensor

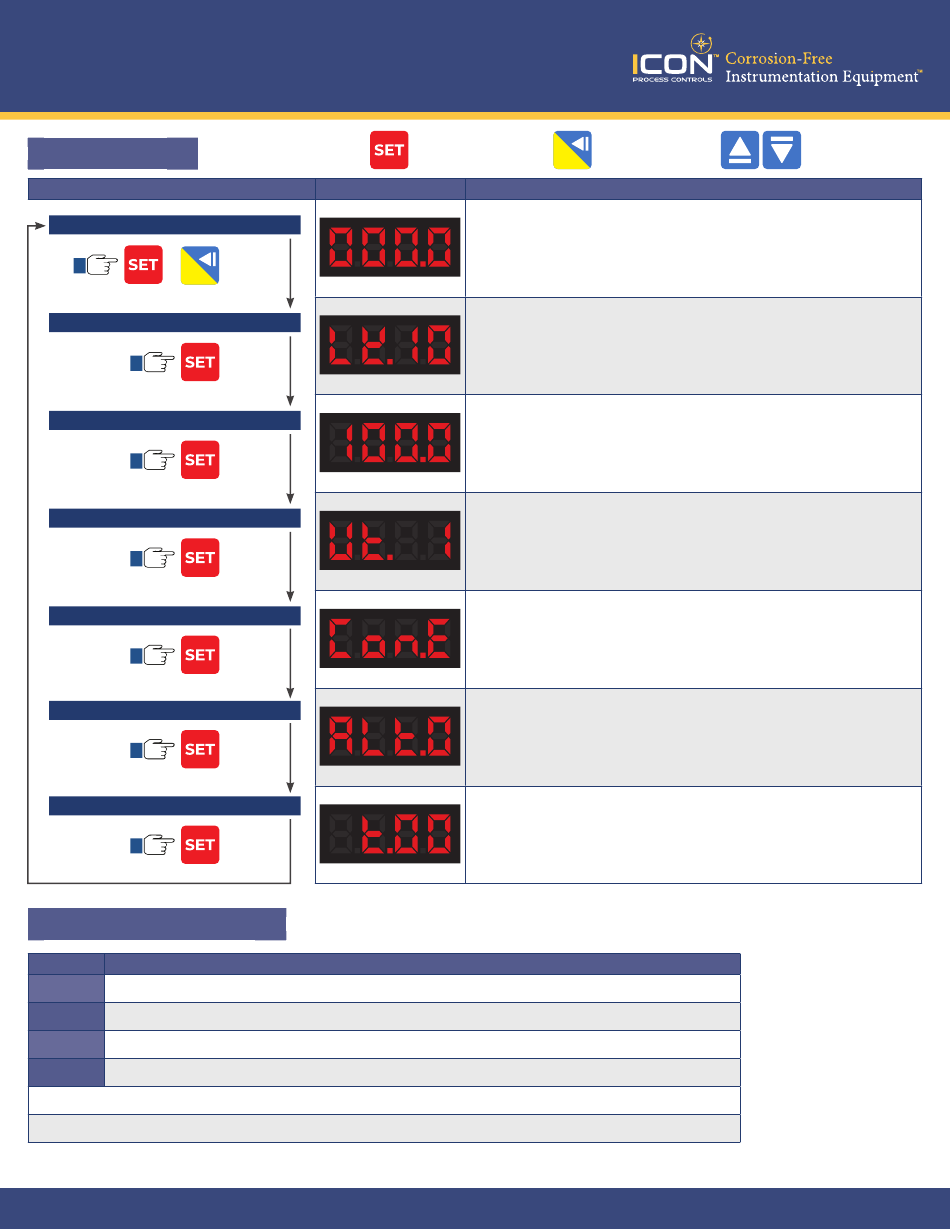

Programming
STEPS
Home Screen
1
+
F
Lock Settings
2
K Factor
3
Flow Unit
4
Pulse Output Control
5
Alarm Mode Setting
6
Alarm Output Delay
7
Alarm Mode Selection
ALt No.
ALt = 0
≥
CV SV — ▶ Relay ON | CV < [SV - d] — ▶ Relay OFF
ALt = 1
CV ≤ SV — ▶ Relay ON | CV > [SV + d] — ▶ Relay OFF
ALt = 2 ≥ ≥
[SV + d] CV
ALt = 3 ≥ ≥
[SV + d] CV
24-0564 © Icon Process Controls Ltd.
DISPLAY
▶
��
3 Sec .
▶
▶
▶
▶
▶
▶
▶
[SV - d] — ▶ Relay ON : CV > [SV + d] or CV < [SV - d] — ▶ Relay OFF
[SV - d] — ▶ Relay OFF: CV > [SV + Hys] or CV < [SV - d] — ▶ Relay ON
▶
d = Hysteresis — Acts like a buffer ± around Alarm Set Point
CV: Current Value (Flow Rate) | SV = Set Value
Select/Save/Continue
F
Home Screen
Lock Settings
Factory Default: Lk = 10
Otherwise meter will enter Lockout Mode*
K Factor Value
Enter K Factor value depending on pipe size.
Refer to Page 7 for K-Factor Values
Flow Unit
Ut.0 = Liter | Ut.1 = Gallon (Factory Default)
Pulse Output Control
Con.E = One Pulse/Gal (Factory Default)
Con.F = Paddle Pulse ▶ Frequency Max 5 KHZ
Alarm Mode Setting
Factory Default: ALt = 0
Range: 0~3 | Refer to Alarm Mode Selection ( See below)
Alarm Output Delay
Factory Default: t = 20
Range: 01 ~ 99 Secs
Description
Move Selection Left
OPERATION
| Ut.2 = Kiloliters
Change Digit Value
