In-line paddle wheel flow meter sensor

Truflo

— TKS | TK3S Series

In-Line Paddle Wheel Flow Meter Sensor

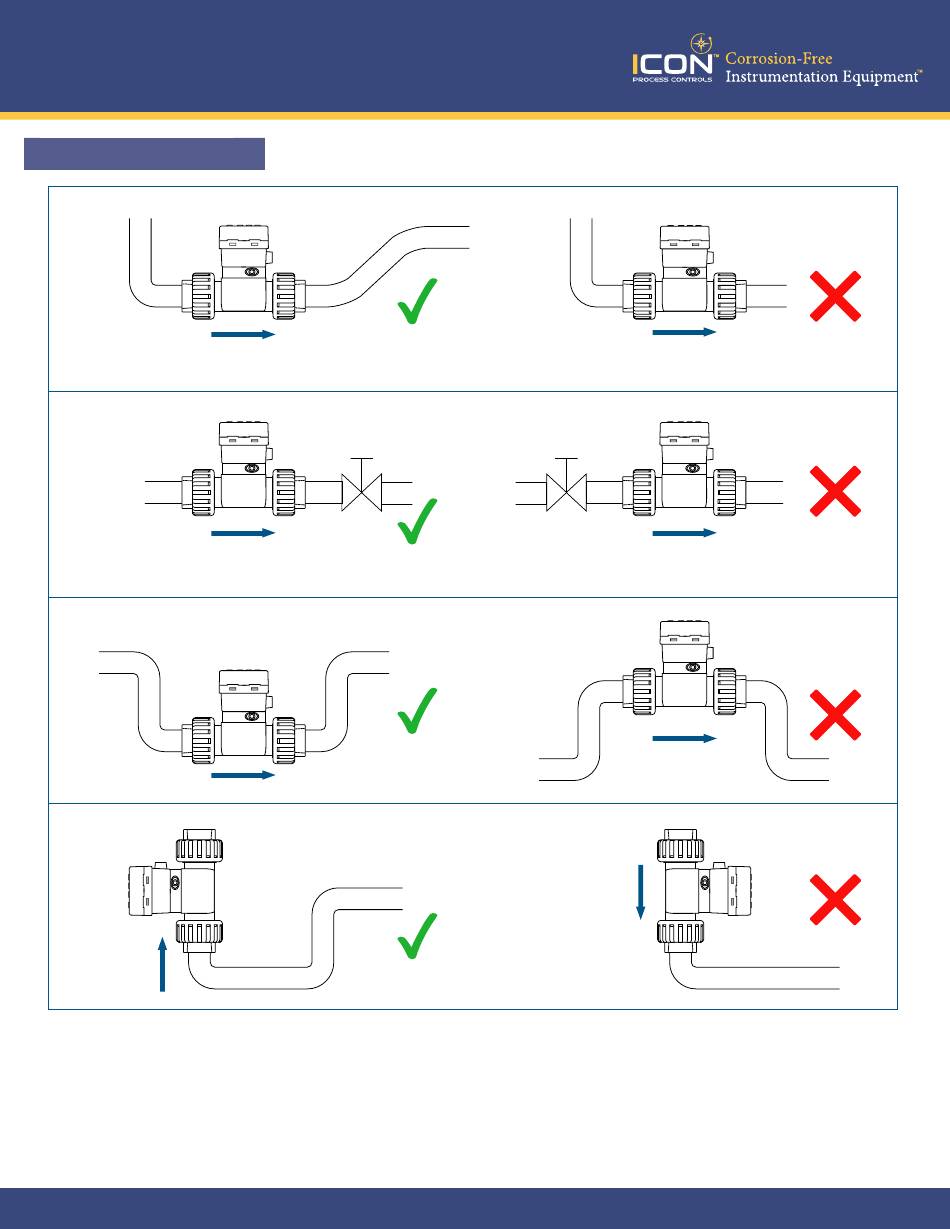

Installation Position

10x

Please Ensure Full Pipe

TK Series can be installed in a horizontal or vertical direction.

Please ensure enough length of straight pipe to avoid turbulence that can effect readings.

Note: Min 10x Pipe Diameters Upstream 3x Pipe Diameters Downstream.

A Plastic Basket Strainer, Bag Filter or Y Strainer Filtering Device upstream to Avoid the Paddle Wheel from being damaged by the solids or

ﬁbers - max 10% Particle Size - Not to Exceed .5mm Cross Section or Length.

Please do not ﬂush the pipe after the Flow Meter is installed with Compressed Air this may damage the ceramic shaft and will Void Warranty.

24-0564

CORRECT

INCORRECT
