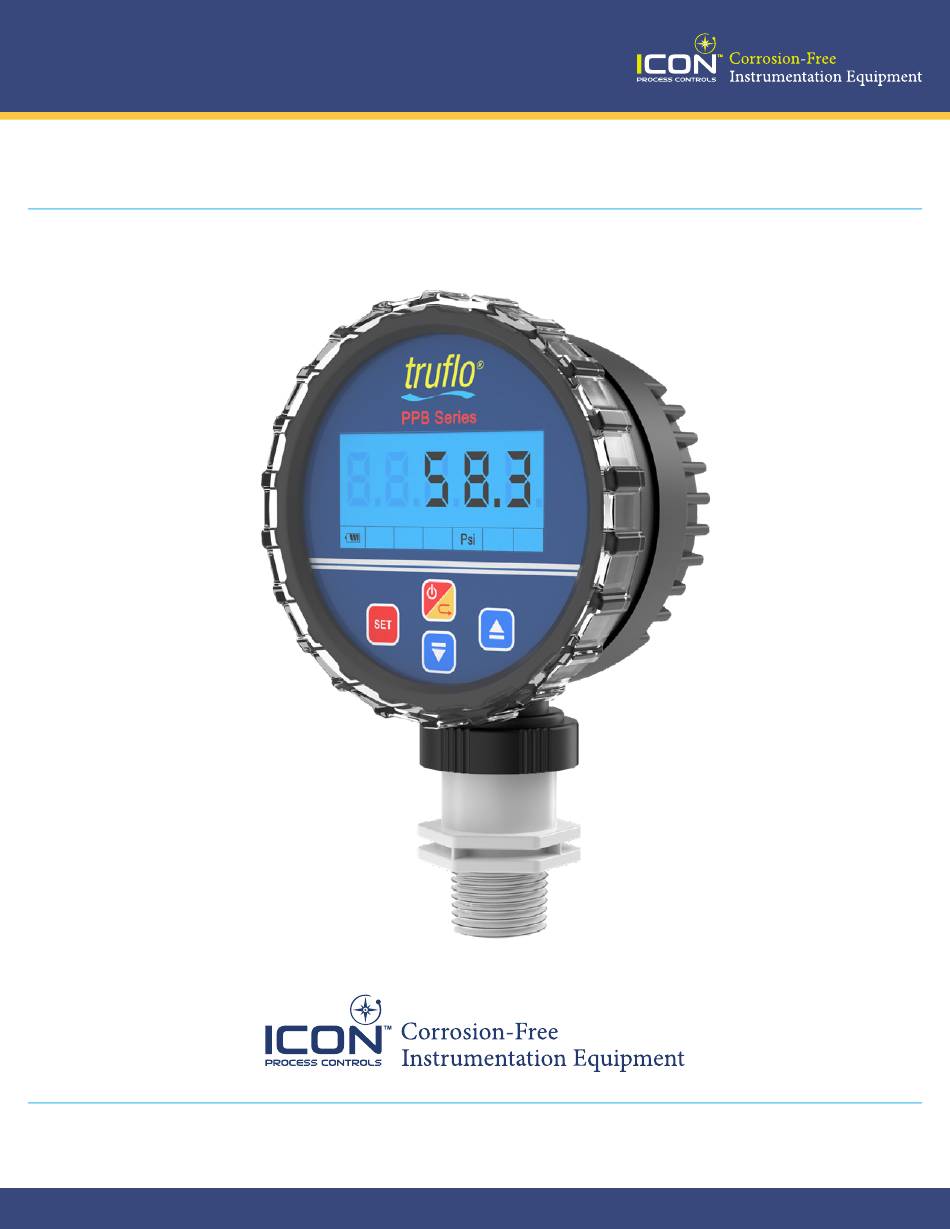

Battery Operated Digital Pressure Gauge
Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
1
24-0388 © Icon Process Controls Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Truflo PPB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Icon Process Controls Truflo PPB Series

Summary of Contents for Icon Process Controls Truflo PPB Series

  • Page 1 Truflo — PPB Series ® Battery Operated Digital Pressure Gauge Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 24-0388 © Icon Process Controls Ltd.

  • Page 2: Safety Information

    Failure to do so could result in equipment damage, failure and/or personal injury. Ensure only qualified personnel are permitted to install and maintain this instrument. Please Ensure Full Pipe PPB Series can be installed in a horizontal or vertical direction. 24-0388 © Icon Process Controls Ltd.

  • Page 3: Technical Specifications

    SS : 1/4" - 1/2" MNPT | 1/2" FNPT || PVDF & PP : 1/2" MNPT | 1/2" FNPT Operating Temperature -40 ~ 248 F | -40 ~ 120 Protection Class IP67 | NEMA 4X Model Selection *Optional Part Number Description PPB-10-PP-K 0-145 Psi ,1/2" MNPT, PPB Digital Pressure Gauge 24-0388 © Icon Process Controls Ltd.

  • Page 4: Push Button Function

    Lck.11 to Enter this Mode 3 Sec . �� Alarm Settings 3 Sec . Battery Notification Voltage of Battery Symbol Status 3.0V Full Scale < 3.0V Mild Scale < 2.8V Low Scale Dimensions 54.50 84.00 24-0388 © Icon Process Controls Ltd.
  • Page 5 = 600 Secs. St.E = Eco Mode: Sampling Frequency 1/4Hz St.n = Normal Mode: Sampling Frequency 1Hz Sampling Frequency Selection ▶ E | n | F St.F = Stable Mode: Sampling Frequency 16Hz (Default) 24-0388 © Icon Process Controls Ltd.

  • Page 6: Alarm Settings

    OPERATION Home Screen ▶ Home Screen �� 3 Sec . *Note : Change Lock to Lck.11 to Enter this Mode Display Offset Value ▶ Set Display Offset Value ** Use to change Values ▶ 24-0388 © Icon Process Controls Ltd.

  • Page 7: Warranty

    Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
