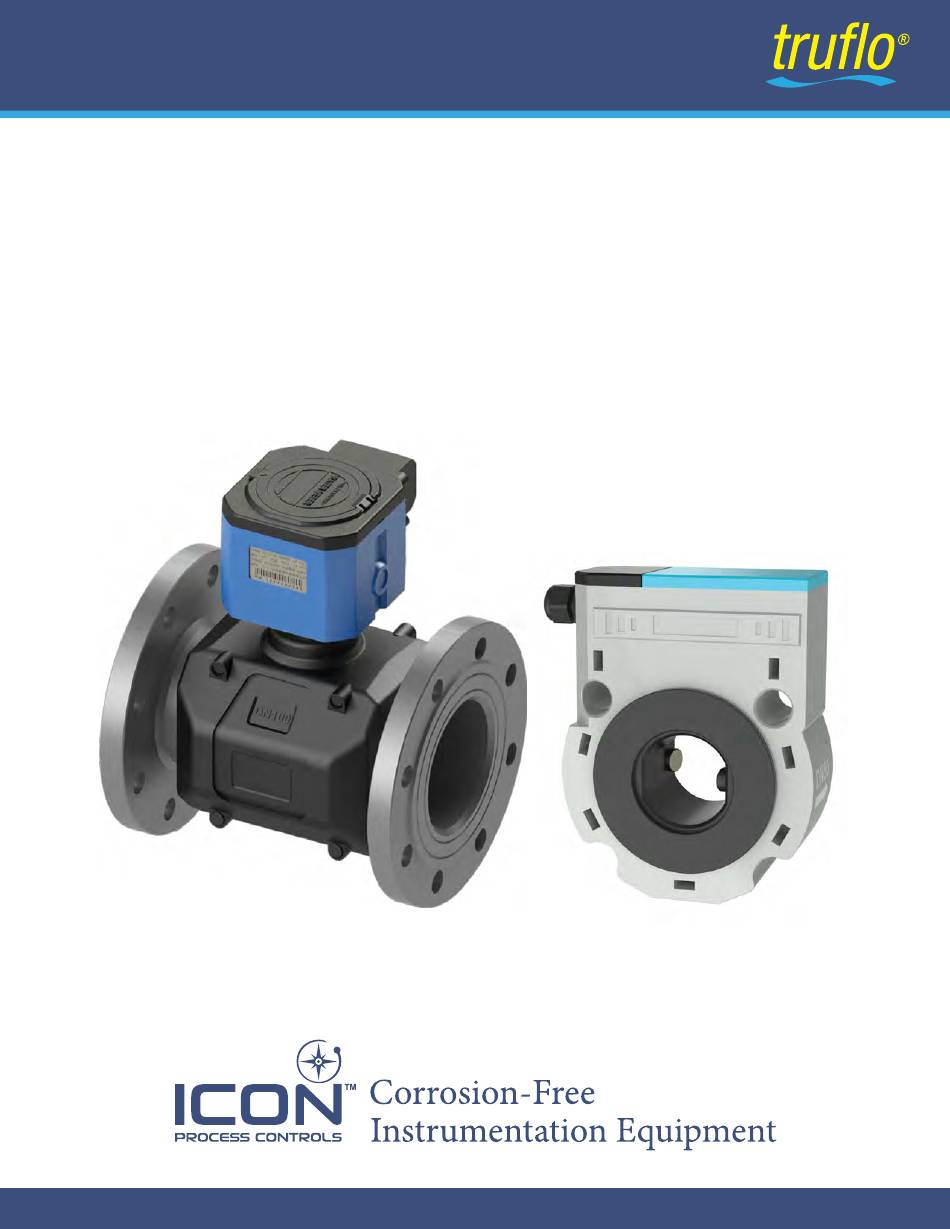

- Page 1 UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) ® UltraFlo H2O Series Ultrasonic Flow Meter Operating Manual www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
-
Page 2: Table Of Contents
U FM- H2O Series Ultrasonic Flow Meter (Battery Operated) Table of Contents Safety Information Technological Progress Introduction Technical Specifications Installation Instructions Correct Install Position Dimensions Flow Ranges Performance Error Curve Display Instructions Key Description Menu Instruction Detailed Menu Calibration Method Communication Warranty, Returns &... -
Page 3: Safety Information
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Safety Information Warning | Caution | Danger IMPORTANT! Indicates a potential hazard. Failure to follow all indicates situations or cases which, if not avoided, warnings may lead to equipment damage, injury, or could result in damage or failure of the Products death equipment. -
Page 4: Technical Specifications
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Technical Specifications General Executive Standard ISO4064-2014, GBT778-2018 Accuracy Rating 2 Class Measurable Fluid Water, Sewage, Seawater (Other Liquid need be Customized), Liquid full of Pipeline Fluid Temperature 0.1-30 °C Work Environment Temperature: -30-45°C, Ghumidity: 100% ( RH ) Pressure 200Psi Pressure Loss... -
Page 5: Installation Instructions
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Installation Instructions When installing the meter, the upstream straight pipe line should be 5D, downstream straight pipe line should be 3D, 20D from the pump (D is the pipe diameter), and ensure full pipe. water meter thickness 50.8mm Cut 62.8mm of pipe 2pcs seal gasket thickness 6mm... -
Page 6: Dimensions
UltraFlo ® H2O Series Ultrasonic Flow Meter (Battery Operated) Dimensions Flanged Connection Dimensions (mm) Flange Dimensions (mm) Nominal Pressure Diameter Bolt Hole Flange Class (mm | in) Dia * Qty Thickness,C DN50 | 2" 82.5 82.5 18*4 DN80 | 3" 18*8 DN100 | 4"... -
Page 7: Flow Ranges
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Flow Ranges Flow (GPM) Nominal Turndown Diameter Ratio Starting Minimum Flow Demarcation Flow Common Flow Overload Flow (mm | in) Flowrate Mono Industrial Grade Small Diameter Water Meter (R=200) DN15 | ½" 0.0136 0.0550 0.0880 11.007... -
Page 8: Performance Error Curve
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Performance Error Curve 5. 0 2. 0 -2. 0 -5. 0 Q1 Q2 Error Curve Display Instructions Alarm/Error 6 Digital Instantaneous Infrared Interface Flow Display Leak Detector UFM-H2O Series Wireless Communication Ultrasonic Water Meter Ultrasonic Flow Meter IRDC In Communication... -
Page 9: Menu Instruction
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Menu Instruction There are 4 main menu options for the water meter In then menu M-0, press the modifying key will enter in the sub menu M-01, Press will display sub menu M-02. Press will return to the main menu M-0. -
Page 10: Detailed Menu
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Detailed Menu Main Menu Measured value display and working status DISP Pipeline parameters and history query Chec Communication Settings Com Flow, heat setting and correction Corr M-0 Measured Value Display and Working Status Displays instantaneous flow and positive cumulative flow (the default display window of the water meter) The First Row : Instantaneous Flow... - Page 11 UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Displays battery voltage and total signal strength and signal quality First Line : Instantaneous Flow Second Row : Total Signal Strength / Signal Quality The two digits on the left side of the second line show the total signal strength, the larger the value, the greater the signal strength, and the maximum value is 90 50 means it cannot be used;...
- Page 12 UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) M-1 Pipeline Parameters & Historical Query Enter the Password to Enter the Submenu After pressing " " to exit from any submenu in the M-0 main menu , enter the password: "1111" and confirm to enter the main menu cycle. Press the " "...
- Page 13 UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) RS485/MBUS Communication Baud Rate, Parity Set wave communication baud rate, parity bit Communication data display for M26 debugging Used to verify Communication Tests. M-3 Flow / Heat Setting and Correction Displays the Current Zero Point Value, Low Flow Cutoff Value First Line : current zero point value (time difference) Second Line : low flow cutoff value flow Set Meter Factor...
-
Page 14: Calibration Method
UFM-H2O Series Ultrasonic Flow Meter (Battery Operated) Manually Set the Default Display Window M00 Traffic Type 0 : Indicates positive cumulative flow 1 : Indicates net cumulative flow 2 : Indicates negative cumulative flow Manual Setting to Modify Heat Unit 0 : Indicates that the heat unit is kilowatt hour ( kW h) Calibration Method The water meter is calibrated via constant-flow method. -
Page 15: Warranty, Returns & Limitations
Warranty Icon Process Controls Ltd warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Icon Process Controls Ltd for a period of one year from the date of sale of such products.
