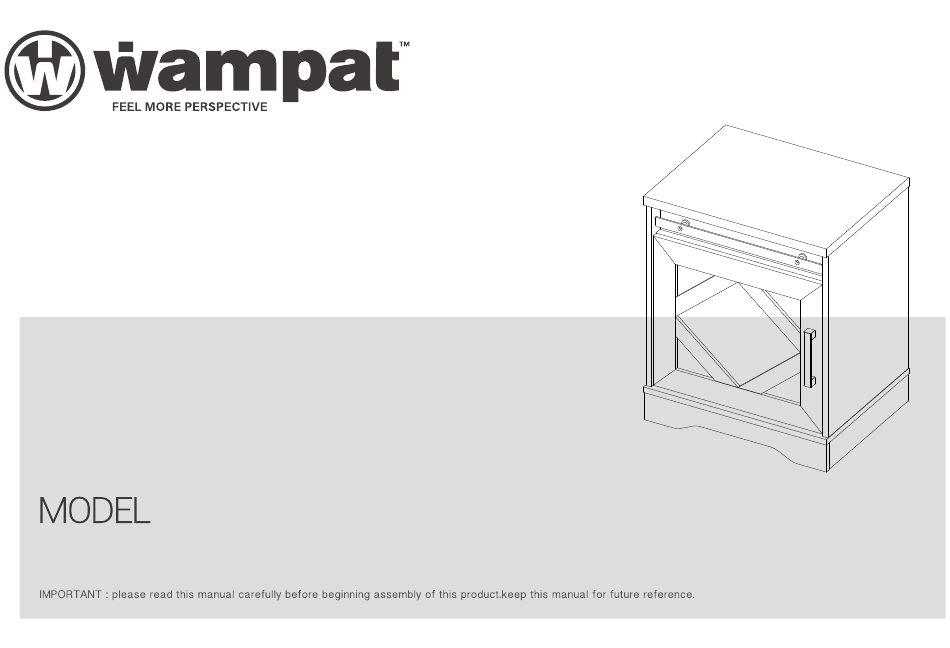

- Page 1 Assembly Instructions W06E3054R W06E3056W...
- Page 4 Shelf support pin Screw Cam bolt Wooden dowel Cam lock x 14 x 17 x 18 Plastic wedge PVC nail with pin Screw Cam lock Handle with bolts with screw x 24 Drawer slider Wrench Wrench Sticker Tools Required (Not included)
- Page 5 x 18 · Screw cam bolts (A) into panels (1,2,3,4,9,13). ３...
- Page 6 Step 1 Step 2 Slider arm Slider bracket · Separate the slide bracket from the slide arm as per diagram.
- Page 7 OPEN Mounting holes · Attach slider arms to panels (3,4) with screws (H) correctly.
- Page 8 · Insert dowels (C) into panel (5). · Attach panel (5) to panels (3,4). · Insert and secure cam locks (B) to panels (5) to lock it.
- Page 9 · Insert dowels (C) into panels (3,4). · Attach panel (2) to panels (3,4) with screws (E) .
- Page 10 · Insert dowels (C) into panels (7,8). · Attach panel (9) to panels (7,8). · Insert and secure cam locks (B) to panels (7,8) to lock it.
- Page 11 · Insert dowels (C) into panel (2). · Attach panels (7,8,9) to part (2). · Insert and secure cam locks (B) to panels (7,8,9) to lock it. · Knock pins (G) into panels (7,8,9).
- Page 12 · Carefully slide part (11,12) into place along the back of the assembly.
- Page 13 · Insert dowels (C) into panels (3,4). · Attach panel (1) to panels (3,4). · Insert and secure cam locks (B) to panels (3,4) to lock it.
- Page 14 · Secure parts (F1) with screws (F2) as per diagram.
- Page 15 · Screw parts (O) to panel (13) using parts (K,L) .
- Page 16 · Attach panels (14,15) to panel (16) with screws (E). · Carefully slide panel (17) into place along the bottom of the assembly.
- Page 17 · Attach part (13) to panels (14,15). · Insert and secure cam locks (J) to panels (14,15) to lock it.
- Page 18 · Attach slider brackets to panels (14,15) with screws (H) correctly.
- Page 19 Slider arm Slider bracket Slider bracket · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws (H) on slider brackets, You can adjust up or down by a few mm.
- Page 20 · Attach part (M) to panel (10) with screws (H) correctly. · Attach part (I2) to panel (10) with bolts (I1) correctly.
- Page 21 · Attach part (10) to panel (3) or panel (4) with screws (H) correctly.
- Page 22 Adjust Height 高さを調節 Adjust front and back 前後を調節 Adjust left and right 左右を調節 7 2 0...
- Page 23 · · Attach panel (5) to panels (3,4) using parts (D). · Stick stickers (P) on the panel (6). 7 2 1...
-
Page 24: Final Assembly
Final Assembly 7 2 2...
