Wampat W06P306FN Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
W06P306FN
W06P306EA

Advertisement

loading
Need help?

Need help?

Do you have a question about the W06P306FN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wampat W06P306FN

Summary of Contents for Wampat W06P306FN

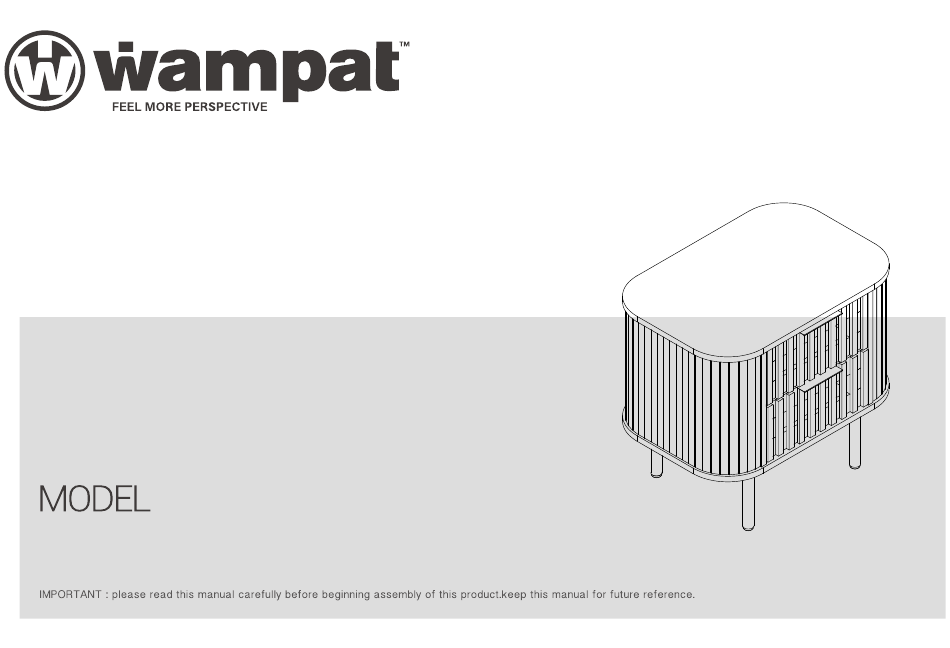

  • Page 1 Assembly Instructions W06P306FN W06P306EA...
  • Page 4 x 14 x 10 Wooden dowel Cam lock Cam lock Cam bolt Bolt Ø8x30mm Ø15x12mm Ø6x34mm 1/4"*28mm Ø15x9mm x 16 x 24 Screw Screw Bolt Coated paper sticker Ø3.5x12mm " Slide Ø4x38mm 1/4"*15mm Tools Required (Not included) Screw Screw Handle Hex Wrench Ø4x50mm Ø3x12mm...
  • Page 5 · Slides must be separated before assembly. · Set aside after separating slides until required for assembly. · Push lever up, then remove runner. ３...

  • Page 6: Mounting Holes

    Mounting Holes The stopper and the groove facing as the same direction x 12 · Attach parts (J) to panels ( 4,5 ) using screws (I) correctly.
  • Page 7 x 14 · Screw cam bolts (A) into panels (1,4,5,8) .
  • Page 8 · Insert dowels (C) into panel (7). · Attach panel (7) to panel (5). · Insert and secure cam locks (D) to panel (7) to lock it.
  • Page 9 · Insert dowels (C) into panel (7). · Attach panel (4) to panel (7). · Insert and secure cam locks (D) to panel (7) to lock it.
  • Page 10 The slot is on the lower side. 2 Person Task · Insert dowels (C) into panels (4,5) . · Attach panel (2) to panel s (4,5) with screws (K) correctly.
  • Page 11 · Attach parts (13) to parts (14) with Bolts (B) correctly.
  • Page 12 x 16 · Attach parts (13) to panel (2) with screws (G) correctly .
  • Page 13 · Carefully slide panel (6) into place along the back of the assembly.
  • Page 14 2 Person Task · Carefully slide panels (3) into panel (2).
  • Page 15 2 Person Task · Insert dowels (C) into panel (4,5). · Attach panel (1) to panels (3,4,5). · Insert and secure cam locks (D) to panels (4,5) to lock it.
  • Page 16 · Attach panels (10,11,12) to panels (8). · Insert and secure cam locks (E) to panels (10,11) to lock it. · Cover cam locks (E) with 8 coated paper stickers (H) to panels (10,11).
  • Page 17 · Attach panels (10,11) to panels (9) using screws (F). · Attach parts (L) to panels (8) using screws (M) correctly.
  • Page 18 Mounting Holes x 12 · Attach parts (J) to panels (10,11) using screws (I) correctly.
  • Page 19 · Pull the inner ball bearing slide on each side all the way out till it stops (may be slightly greasy). · Insert drawers as shown.

This manual is also suitable for:

W06p306ea
