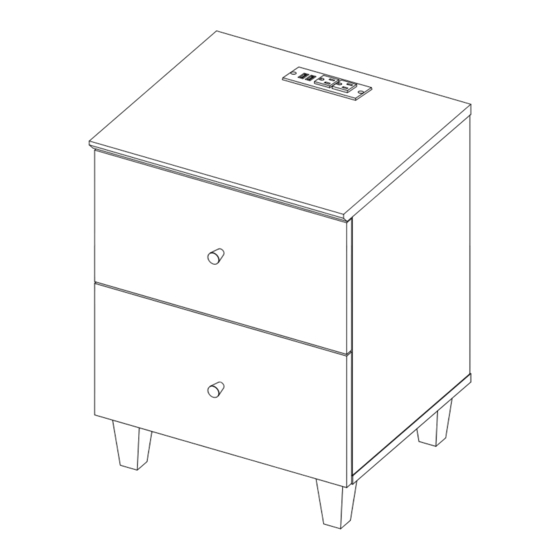

- Page 1 Assembly Instructions W06J3050V W06J305AK W06J305BG Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.
- Page 2 ＿...
- Page 4 x 18 x 24 Screw Wooden dowel Cam bolt Cam lock Screw Plastic wedge Ø4x12mm Ø8x30mm Ø15x11mm Ø6x33.5mm Ø3.5x14mm x 14 x 16 Crash pad Screw Footpads Handle bolt Screw Sticker Ø3x13mm M4x18mm Ø4x35mm Ø10x2mm 25x25mm Handle Cam bolt Cam lock Drawer slider Ø20x23mm Ø6x28mm...
- Page 5 · Screw cam bolts (A) into panels (1,4,5). ３...
- Page 6 Slider arm Slider arm Slider bracket Slider bracket x 12 · Separate the slide bracket from the slide arm as per diagram. · Attach Slider arms to panels (4,5) with screws (D) correctly.
- Page 7 · Insert dowels (B) into Wooden leg (7). · Attach panels (3 ) to Wooden leg (7). · Insert and secure (H) to Wooden leg (7) to lock it.
- Page 8 · Insert dowels (B) into panel (2). · Attach panels (4,5) to panel (2), · Insert and secure cam locks (C) to panel (2) to lock it.
- Page 9 · Insert dowels (B) into panels (4,5). · Then attach panel (3) to panels (4,5) using screws (H). · Stick the skid pad (J) on the bottom of the Wooden leg (7).
- Page 10 ·Carefully slide panel (6) into place along the back of the assembly.
- Page 11 · Insert dowels (B) into panel (4,5). · Attach panels (1) to panels (4,5), · Insert and secure cam locks (C) to panels (4,5) to lock it.
- Page 12 · Secure parts (E) to panels (1,3,4,5) using screws (F).
- Page 13 · Attach socket (R) to panel (1) with screws (L) correctly.
- Page 14 ×2 · Attach panels (9,10) to panel (11) wiht screws (H). · Carefully slide panel (12) into place along the bottom of the assembly.
- Page 15 · Screw Cam bolts (U) into panel (8). · Attach Handle (N) to panel (8) with bolts (G). · Attach panel (8) to panels (9,10). · Insert and secure cam locks (M) to panels(9,10) to lock it. ×2...
- Page 16 ×2 x 12 · Attach slider brackets to panels (9,10) with screws (D) correctly. · Stick part (K) on panels (8) correctly.
- Page 17 Slider arm · Stick stickers (I) on cam locks (C,M). x 14 Slider bracket · Assembled the drawers as per diagram Note :If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm then re-assembled the drawer until they were going in smoothly well.
- Page 18 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
