Wampat W06E4057W Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
W06E4057W W06E4058R

Advertisement

loading
Need help?

Need help?

Do you have a question about the W06E4057W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wampat W06E4057W

Summary of Contents for Wampat W06E4057W

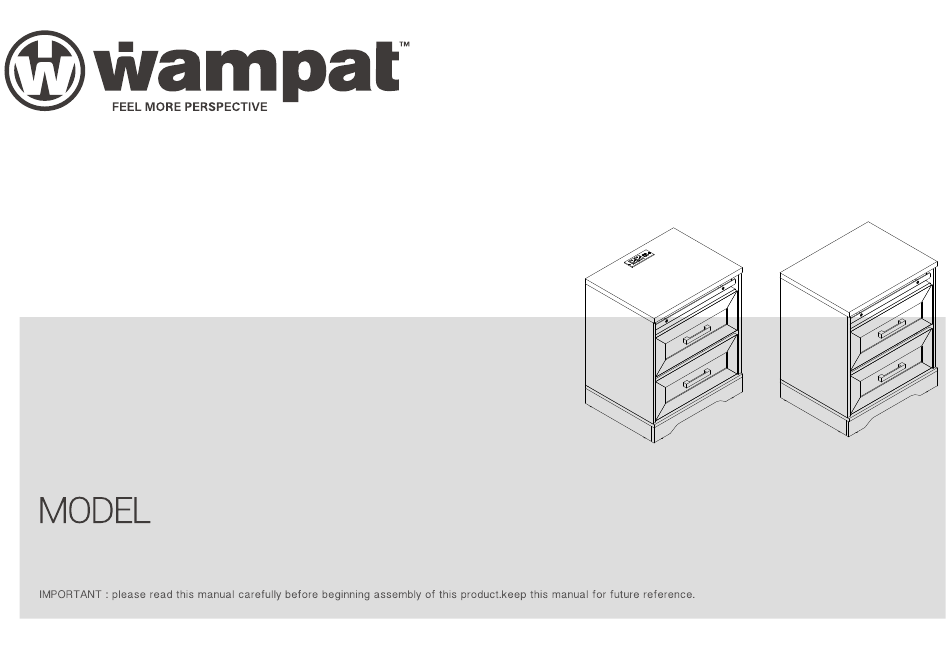

  • Page 1 Assembly Instructions W06E4057W W06E4058R...
  • Page 4 ●The provided glue(H) is to secure When first inserting dowels, locate the Wooden dowel Cam bolt Cam lock Screw wood dowels(A) in place . Ø6x30mm Ø15x9mm Ø6x35mm Ø4x30 appropriate hole for the dowel , place a x 52 x 52 x 52 x 20 small amount of glue in the hole and...
  • Page 5 · Screw cam bolts(B) into panel(3). · Insert dowels(A) into panels(3,5). x 16 · Attach panels(5) to panel(3). · Insert and secure cam locks(C) to panels(5) to lock it. ３...
  • Page 6 · Screw cam bolts(B) into panel(4). · Insert dowels(A) into panel(4). · Attach panels(5) to panel(4). · Insert and secure cam locks(C) to panels(5) to lock it.
  • Page 7 · Screw cam bolts(B) into panel(1). · Attach panels(3,4) to panel(1). · Insert and secure cam locks(C) to panels(3,4) to lock it.
  • Page 8 · Screw cam bolts(B) into panel(10). · Attach panels(3,4) to panel(10). · Insert and secure cam locks(C) to panels(3,4) to lock it.
  • Page 9 · Carefully slide parts(6,20) into place along the back of the assembly.
  • Page 10 x 16 x 12 · Screw cam bolts(B) into panels(2,8). · Insert dowels(A) into panels(7,9).
  • Page 11 · Attach panels(2) to parts(3,4) with screws(E).
  • Page 12 x 12 x 12 · Secure parts( F) with screws(G) as per diagram.
  • Page 13 · Attach panels(7,9) to panel(8). · Insert and secure cam locks(C) to panels(7,9) to lock it. x 16 · Attach panels(7,8,9) to panels(2). · Insert and secure cam locks(C) to panels(7,8,9) to lock it.
  • Page 14 · Insert dowels(A) into panels(13,14,15). · Attach panels(13,14) to panel(15) with screws(D).
  • Page 15 · Screw cam bolts(B) into panel(11). · Screw parts(M,N,O,P,Q) to panel(11) using parts( ,J) .
  • Page 16 · Carefully slide panel(16) into place along the bottom of the assembly. · Attach part(11) to panels(13,14). · Insert and secure cam locks(C) to panels(13,14) to lock it.
  • Page 17 · Insert dowels(A) into panels(17,18). · Attach panels(17,18) to panel(19) with screws(D) . x 16...
  • Page 18 x 16 · Screw cam bolts(B) into panel(12). · Attach part(L) to panel(12) with bolts(K ) correctly.
  • Page 19 · Carefully slide panel(16) into place along the bottom of the assembly. · Attach part(12) to panels(17,18). x 16 · Insert and secure cam locks(C) to panels(17,18) to lock it.
  • Page 20 · Attach part(S) to panel(1) using screws(R).
  • Page 21 · Assembled the drawers as per diagram Slider bracket Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.
  • Page 22 · Assembled the drawers as per diagram Slider bracket Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.

  • Page 23: Final Assembly

    Final Assembly 7 2 1...

This manual is also suitable for:

W06e4058r
