Summary of Contents for Wampat W06E405DW

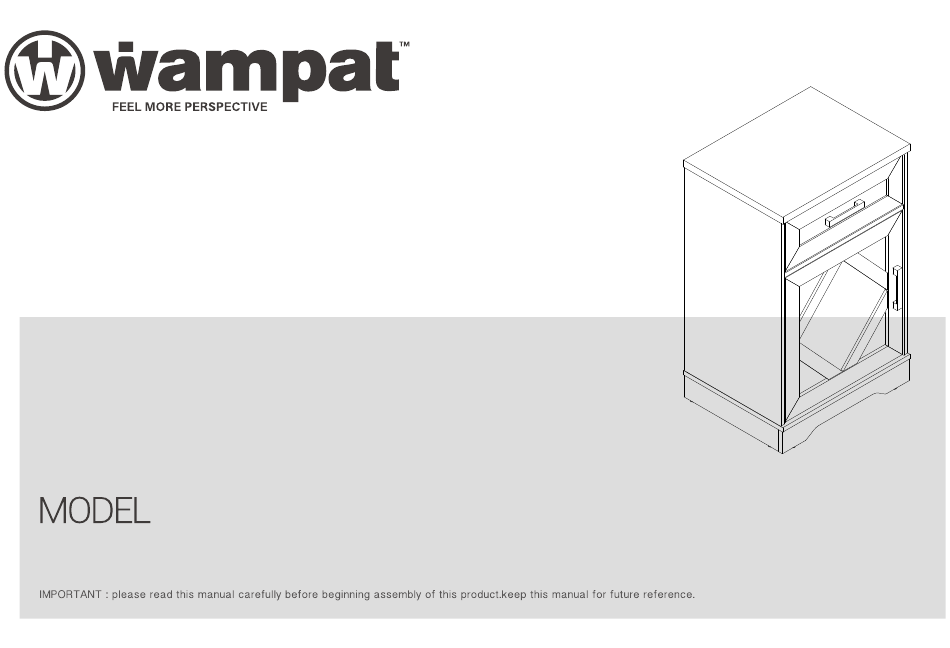

- Page 1 Assembly Instructions W06E405DW W06E405ER...
- Page 4 ●The provided glue(H) is to secure When first inserting dowels, locate the Screw Cam lock Wooden dowel Cam bolt wood dowels(A) in place . Ø4x30 Ø15x9mm Ø6x30mm Ø6x35mm appropriate hole for the dowel , place a x 18 x 18 x 18 small amount of glue in the hole and insert the dowel .
- Page 5 · Screw cam bolts(B) into panels(3,4). · Insert dowels(A) into panels(3,4). ３...
- Page 6 · Attach part(I) to panel(5) with screws(J).
- Page 7 · Attach panels(3,4) to panel(5). · Insert and secure cam locks(C) to panel(5) to lock it.
- Page 8 · Screw cam bolts(B) into panel(1). · Attach panels(3,4) to panel(1). · Insert and secure cam locks(C) to panels(3,4) to lock it.
- Page 9 · Carefully slide part(6) into place along the back of the assembly.
- Page 10 · Screw cam bolts(B) into panels(2,8). · Insert dowels(A) into panels(7,9).
- Page 11 · Attach panels(2) to parts(3,4) with screws(E).
- Page 12 · Secure parts(F) with screws(G) as per diagram.
- Page 13 · Attach panels(7,9) to panel(8). · Insert and secure cam locks(C) to panels(7,9) to lock it. · Attach panels(7,8,9) to panels(2). · Insert and secure cam locks(C) to panels(7,8,9) to lock it.
- Page 14 · Insert dowels(A) into panels(13,14). · Screw cam bolts(B) into panel(10). · Attach part(M) to panel(10) with bolts( K) correctly.
- Page 15 · Attach panels(13,14) to panel(15) with screws(D). · Carefully slide panel(16) into place along the bottom of the assembly.
- Page 16 · Attach part(10) to panels(13,14). · Insert and secure cam locks(C) to panels(13,14) to lock it.
- Page 17 Slider bracket · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.
- Page 18 · Attach panel(11) to panels(3,4) using parts(P).
- Page 19 · Attach part(M) to panel(12) with bolts( L) correctly. · Attach part(N) to panel(12) with screws(O) correctly.
- Page 20 · Attach part(12) to panels(3,4) with screws(O) correctly.
- Page 21 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
-
Page 22: Final Assembly
Final Assembly 7 2 0...
