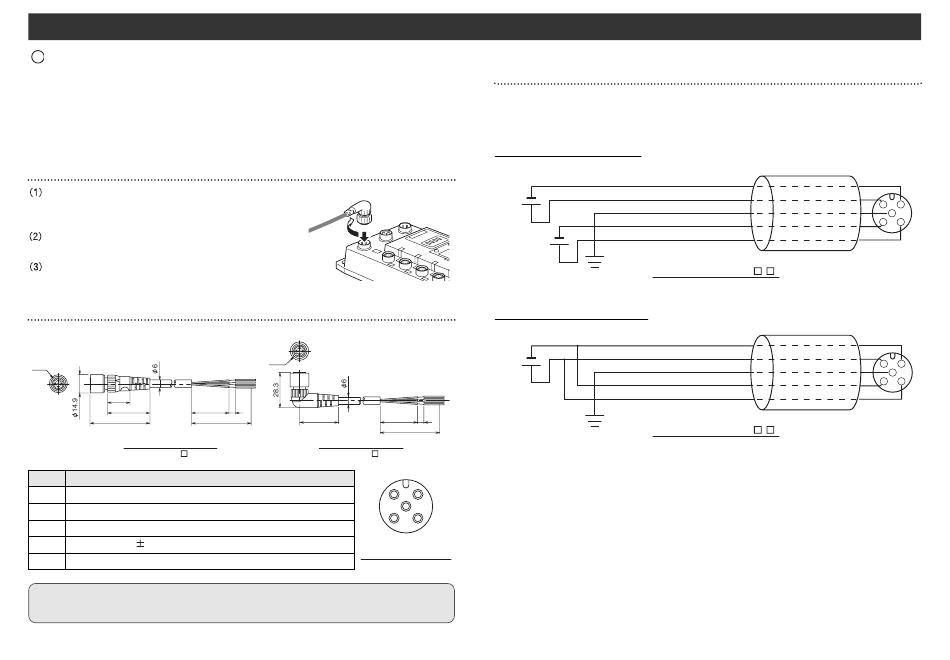

Wiring ( continued )
Power supply wiring
2
Connect the power supply connector cable to the power supply connector of GW unit.
There are two types of cables different in connector shape ---- straight type and angle
type. With this cable, the power is supplied to the output devices such as solenoid valve,
and the input devices such as sensor, and for control. Therefore, there is no need to
supply the power to other units individually.
When selecting the power supply, refer to "Handling precautions" ( page 3 ) in this manual.
Cable connection
Aligning the key groove with the power supply
connector ( plug ) of GW unit, plug the power supply
cable ( socket ).
Tighten the lock nut on cable side by turning it
clockwise by hand.
Confirm that the connector portion does not move.
Pin layout and connection diagram of power supply connector cable for ( unit: mm )
( Pin layout and connection diagram are common to all cables. )
M12
18
34
30
48
Straight connector Type
EX500-AP
-S
Pin No.
Cable color: Signal name
1
Brown: 0V ( for solenoid valves/output )
2
White: DC24V+10%/-5% ( for solenoid valves/output )
3
Blue:
0V ( for input and control )
4
Black: DC24V 10% ( power supply for input and control )
5
Gray: Ground
NOTE
D type ground (Third-type grounding ) should be performed for ground terminal.
12
M12
5
31.3
30
50
Angle connector Type
EX500-AP
-A
1
5
4
Socket Connector Pin Layout
Separate wiring for power supply for solenoid valves/output and
for input and control of GW/SI
Both single power supply and two power supply systems can be adopted, however, the
wiring shall be made separately ( for solenoid valves/output and for input and controlling
GW/SI ) for either system.
A. Two power supply system
24VDC
24VDC
B. Single power supply system
24VDC
5
50
2
3
Brown: 0V ( for solenoid valves/output )
White: DC24V ( for solenoid valves/output )
Gray: Ground
Blue:
0V ( for input and control )
Black: DC24V ( for input and control )
Cable Part No. : EX500-AP
-
Brown: 0V ( for solenoid valves/output )
White: DC24V ( for solenoid valves/output )
Gray: Ground
Blue:
0V ( for input and control )
Black: DC24V ( for input and control )
Cable Part No. : EX500-AP
-
2
1
5
3
4
Power supply
connector
2
1
5
3
4
Power supply
connector
13
