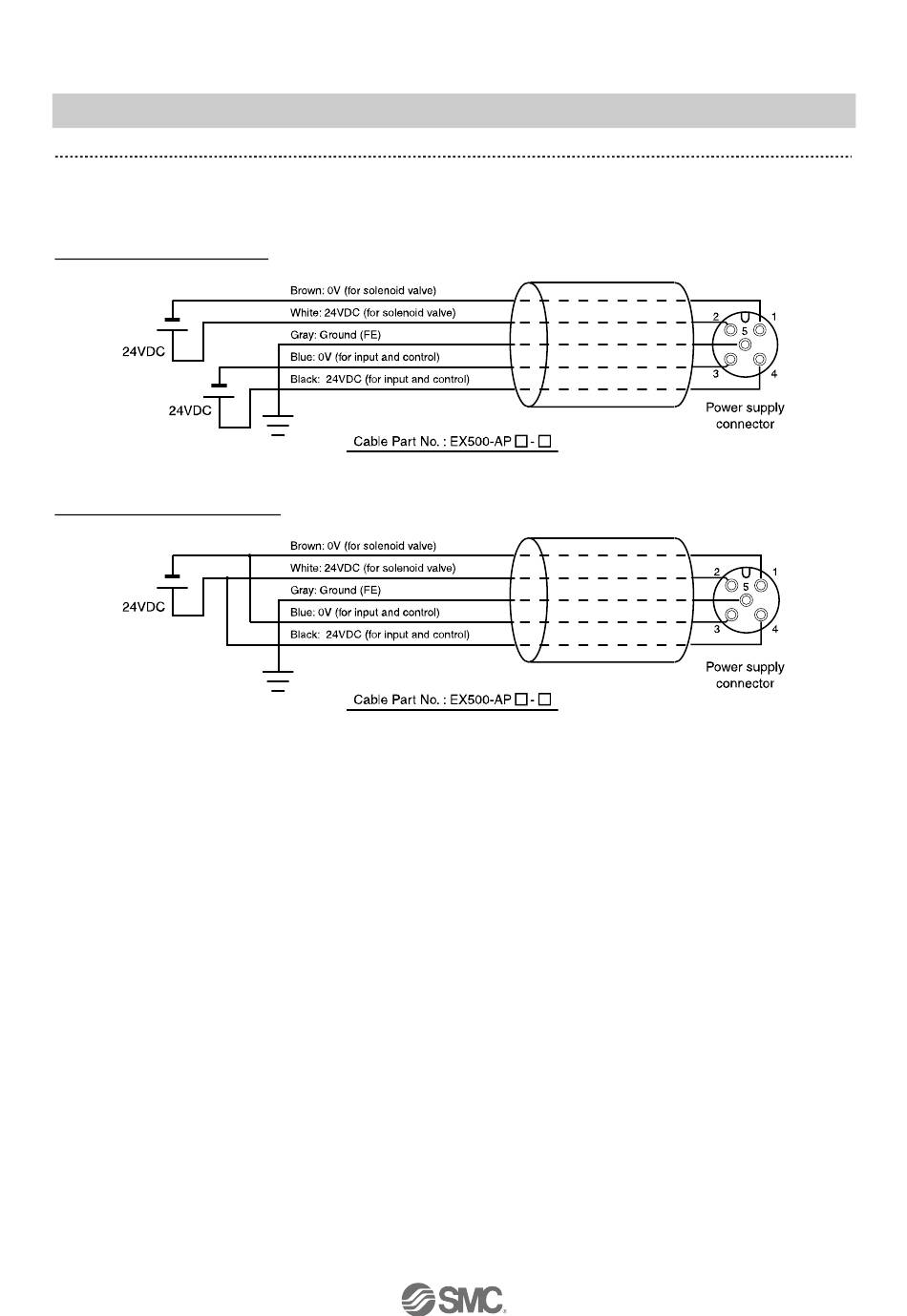

Separate wiring for power supply for solenoid valves/output and for input and control of GW/SI
Both single power supply and two power supply systems can be adopted, however, the wiring shall be made
separately (for solenoid valve and for input and control) for either system.
A. Dual power supply system
B. Single power supply system
-14-
No.EX##-OMO0019
