Product Summary

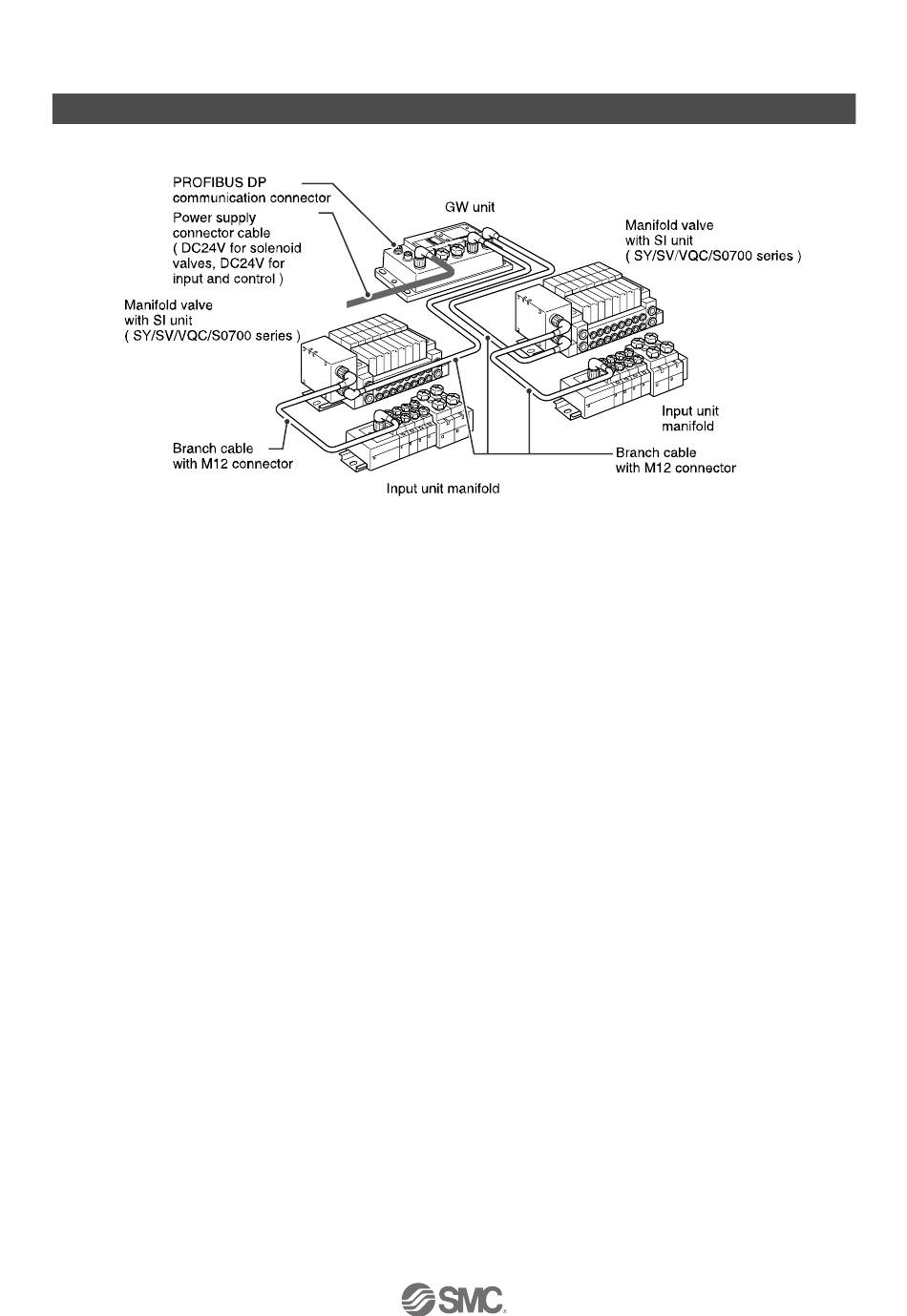

■System configuration
The fieldbus system is connected to open fieldbus (PROFIBUS DP) realizes the reduced wiring and
decentralized installation of I/O devices. The signals to/from fieldbus are exchanged by GW unit, and the
signals to/from decentralized I/O devices are collected and delivered by GW unit.
The maximum number of connections of manifold valve/Input unit manifold is 16/branch x 4 branches = 64
points each for output and input.
As the cables with connectors are used for all wirings among devices, the system complies with the IP65
environment.
-8-
No.EX##-OMO0019
