Seagull Models Oracle Turbo Raven Assembly Manual page 16

Oracle Turbo Raven 63" ARF 15-20cc Aerobatics/3D
8.
Cut of excess cable as shown.
9.
10.
11.
16

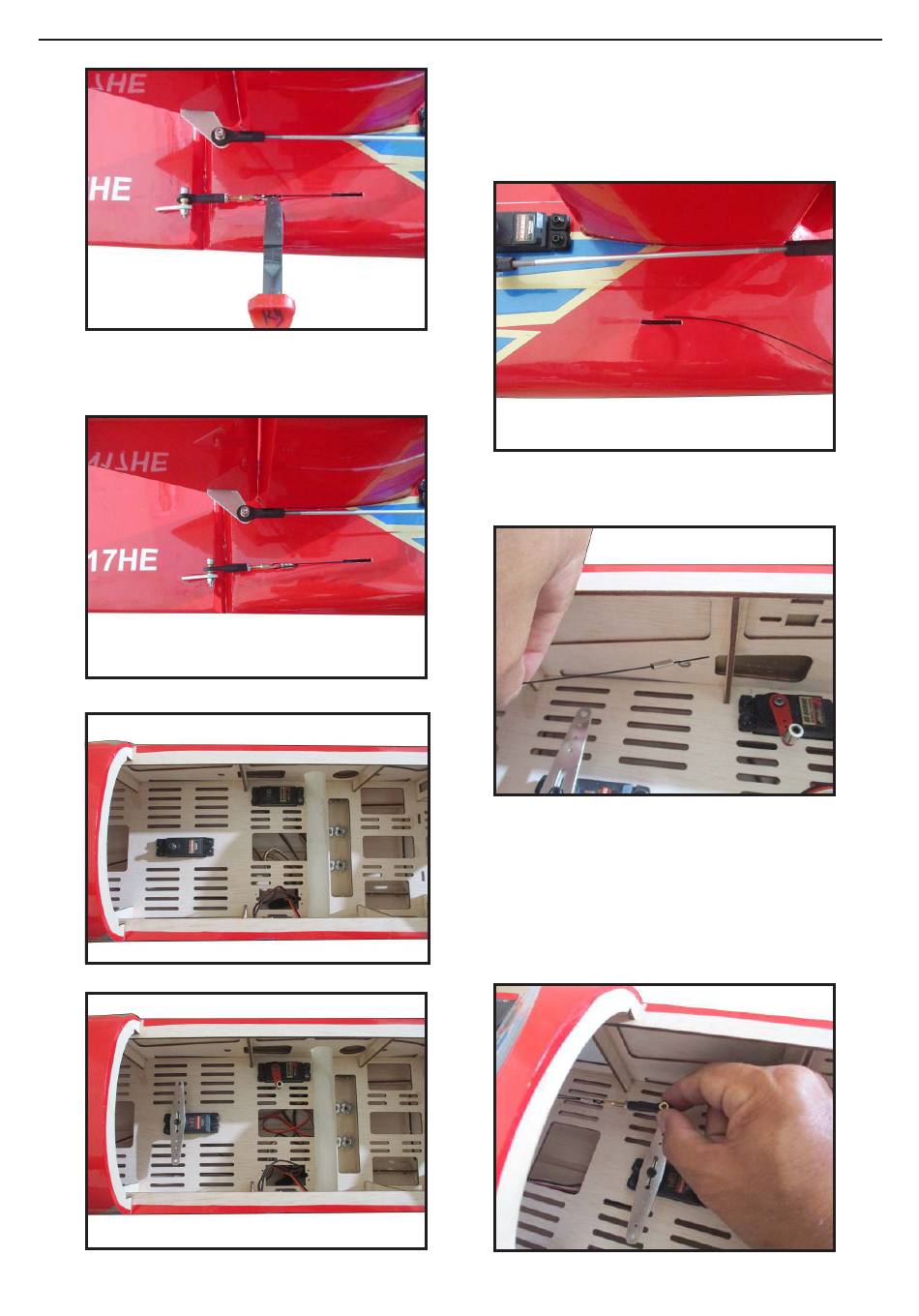

Feed one rudder cable through the pre
installed cable exit tube in the rear of the
fuse toward the front of the fuse. Repeat
for other side.
12.
hread cable through brass swage tube.
13.
hread cable through the threaded
coupler hole, and back through the brass
swage tube as shown.
Loop the cable back through the brass
swage tube and pull tight.
14.
Instruction Manual.
