Setting Up Oracle Roving Edge Device

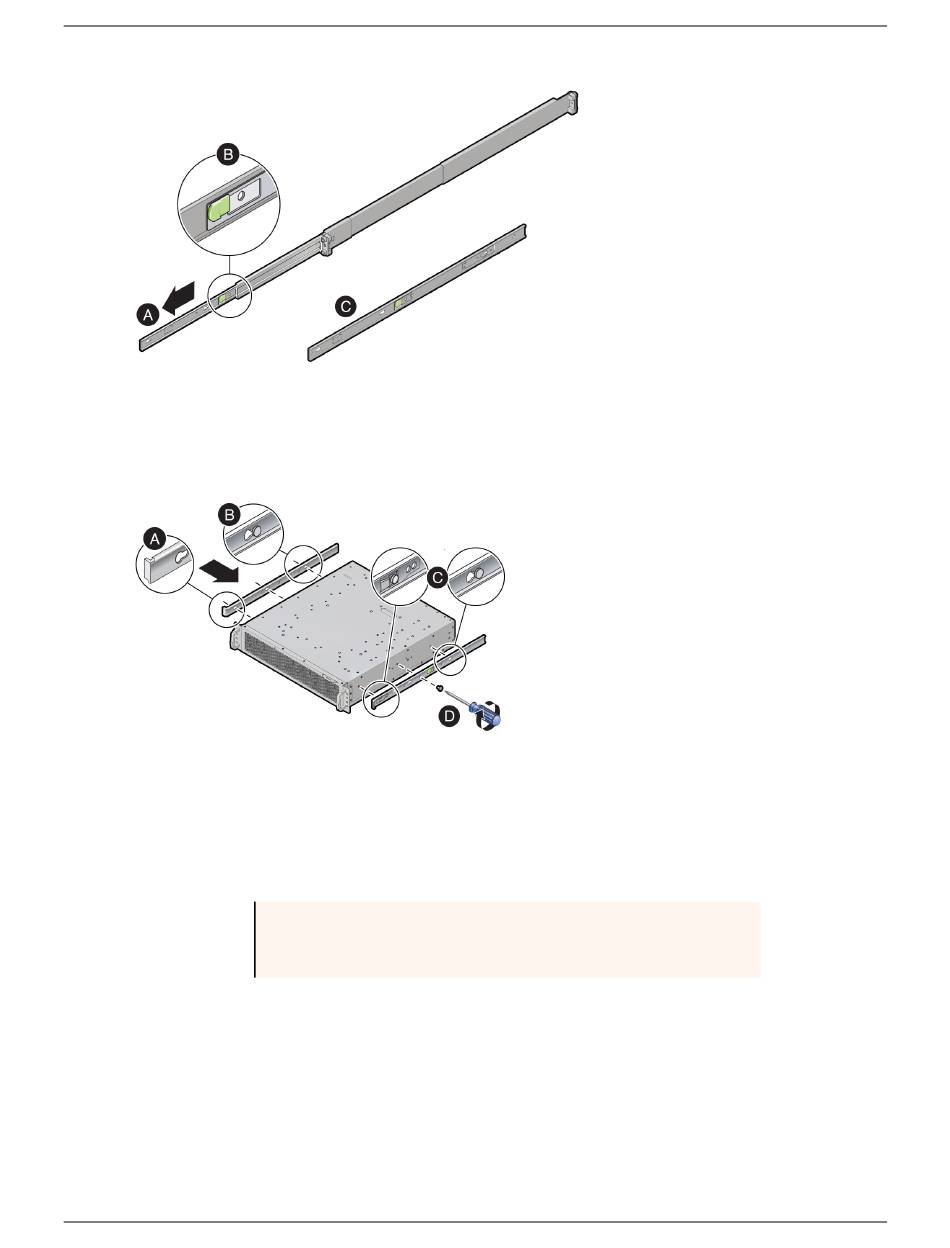

a. Pull the mounting brackets out of the slide-rail brackets.
b. Press the release lever to release the locking mechanism.
c. Remove the mounting brackets from side-rails.
2. Attach the mounting brackets to the device.
a. Position the mounting brackets against the device so that the slide-rail stop is at the front of the device.
b. Line up the keyhole openings on the mounting bracket with the locating pins on the side of the device.
c. Push the mounting brackets forward until they lock in place with an audible click.
d. Secure the mounting brackets by installing one M4 screw to each side of the device.
3. Identify the location in the rack where you want to place the device.
Roving Edge Device requires two rack units (2U) of vertical space.
4. If your rack posts aren't labeled, mark the mounting holes on the front and rear posts to ensure a level installation.
5. Attach the two slide-rails to the rack.
Oracle Cloud Infrastructure Roving Edge Device Setup Guide
Caution:
To reduce the risk of personal injury, stabilize the rack cabinet, and if
available, extend the anti-tilt bar before you install the server.
