OPT7 AURA PRO WITH SOUNDSYNC Installation Manual page 2

FRONT FRONT
24 24
' ' ' '

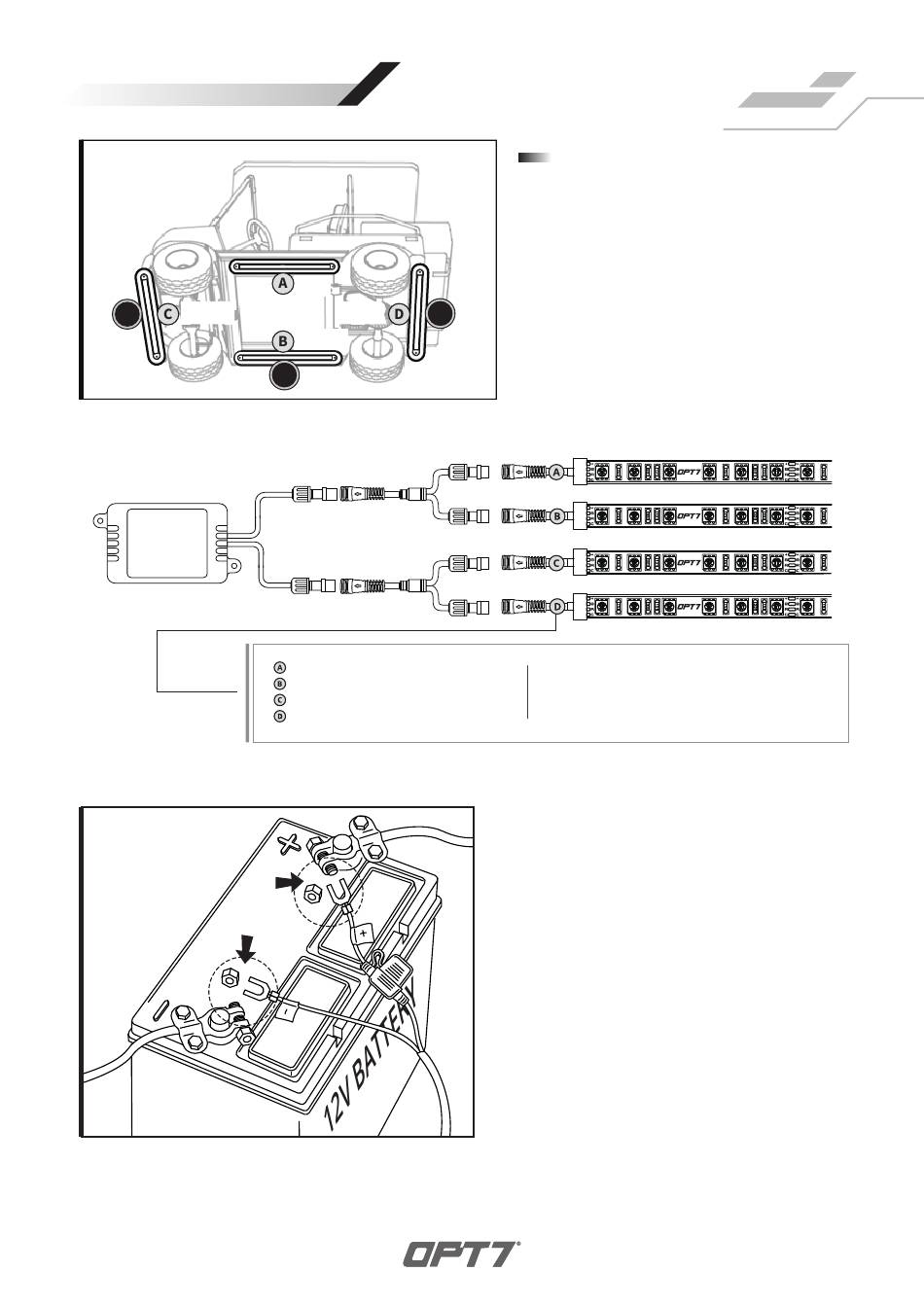

As shown below, connect all the LED bars to the control box with the included extension cables.
INSTALLATION
LEFT LEFT
REAR REAR
24 24
' ' ' '
RIGHT RIGHT
36 36
' ' ' '
1 × 36" LED Bar + 8ft extension wire
1 × 36" LED Bar + 8ft extension wire
1 × 24" LED Bar + 8ft extension wire
1 × 24" LED Bar + 18ft extension wire
STEP 1
Decide where to locate the control box
and ensure wiring has enough length
for light bars to be installed in desired
location.
IMPORTANT:
The extension wires are on the led bar. Lay
out the bars to measure the length prior to
install for a successful installation.
HOW TO CONNECT
POWER HARNESS
TO YOUR VEHICLE
- Connect the Red wire (+) of power
harness to the vehicle battery's
positive terminal.
-
Connect the Black wire (-) of power
harness to the vehicle battery's
negative terminal or an unpainted
area on your vehicle's frame.
