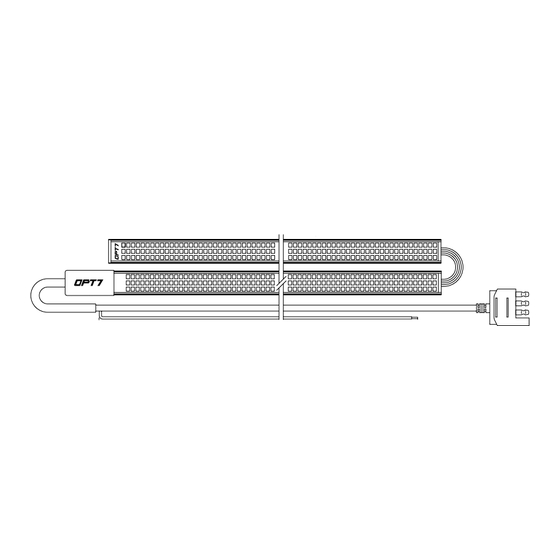

- Page 1 REDLINE PARLUX TRIPLE TAILGATE LIGHT BAR ( 2PC ) INSTALLATION GUIDE WHAT'S INCLUDED 10 ft 3.2 ft Triple Redline LED Bar Plastic Aligner Scotch-Lok Mounting Adhesive Wiring Connectors Clips Promoter...
-
Page 2: Installation
INSTALLATION STEP1 Test the Redline LED Bar for functionality before mounting on vehicle. STEP2 Remove the tailgate from vehicle to prep the area. STEP3 Thoroughly clean the area where the Redline LED Bar will be mounted. ADHESION ADHESION STEP4 PROMOTER PROMOTER OPTION 1 ______ _... - Page 3 INSTALLATION STEP4 OPTION 2 ______ _ For optimal installation of the Redline LED Bar, carefully plan and mark the desired bracket mounting locations, taking placement into consideration to ensure a straight application. STEP5 Securely mount the Redline LED Bar to your vehicle using the provided screws and clips to ensure a solid installation.
- Page 4 ALL MODELS 2015-2020 WITH BLIS/BACKUP CAMERA/ASSIST SENSOR Hello Fellow OPT7-ites, Introducing the Redline Quick Connect Harness to Flat 4-Pin Extension Adapter Harness The OPT7 Redline Quick Connect Expansion Adapter Harness is purpose-built to be used as a trailer accessory for 15-20 F150 all models. It provides a...
- Page 5 LARIAT 2015-2018 NO BLIS/BACKUP CAMERA/ASSIST SENSOR Hello Fellow OPT7-ites, Introducing the Redline Quick Connect Harness to Flat 4-Pin Extension Adapter Harness The OPT7 Redline Quick Connect Expansion Adapter Harness is purpose-built to be used as a trailer accessory for 15-18 F150 models. It provides a plug-and-play...
-
Page 6: Hard Wiring
Green/Right Turn & Brake Right Turn & Brake DISCLAIMER OPT7 Lighting is not liable for damages, injuries, or death while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
