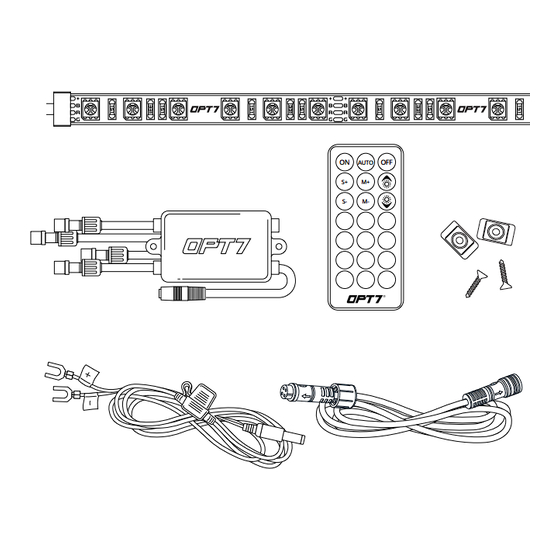

- Page 1 GRILLE INSTALLATION GUIDE MAIN COMPONENTS LIGHT STRIPS AUTO MOUNTING KIT AURA CONTROL BOX REMOTE EXTENSION WIRES HARDWIRE POWER HARNESS...
- Page 2 INSTALLATION STEP 1 Decide where to locate the light strips and ensure wiring has enough length for control box to be installed in desired location. As shown below, connect all light strips to the control box with the included extension cables. FUSE EXTENSION WIRE Connecting to more than 10 AMP will override the kit and cause early failure,...
- Page 3 INSTALLATION STEP 2 Secure Control box in desired location with Velcro or zipties. * CONTROL BOX NOT WATERPROOF Ensure the control box is safely and securely hidden from exposing elements of moisture. STEP 3 Secure the light strips using the zip ties to tie all the wiring away from the moving components.
- Page 4 Dimmer 8 Levels Color Selection 12 Colors DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
