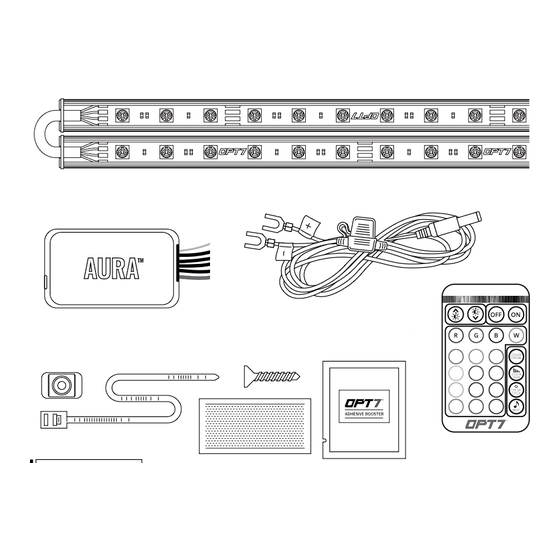

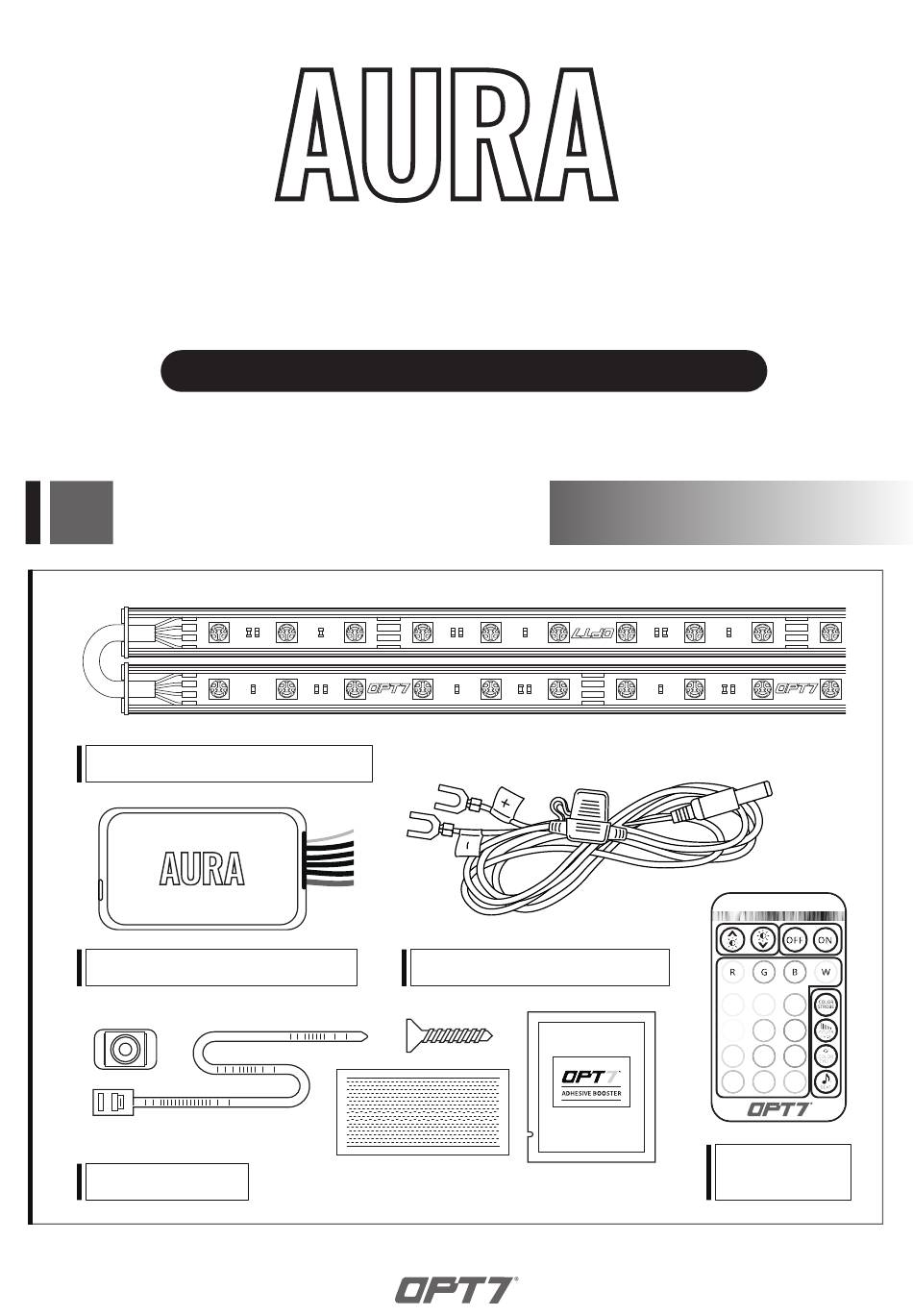

- Page 1 UNDERBODY WITH UNLOCK & DOOR ASSIST /8PC INSTALLATION GUIDE MAIN COMPONENTS RIGID LIGHT BARS 18''×4 & 24''×4 HARDWIRE POWER HARNESS AURA CONTROL BOX HAND INCLUDES - MOUNTING KIT HELD REMOTE WIRE MOUNTS, SELF-TAPPING SCREWS, BOOSTER, VELCRO, ZIP TIES...
-
Page 2: Installation
INSTALLATION STEP 1 Decide where to locate the control box and LEFT LEFT ensure wiring has enough length for light bars to be installed in desired location. FRONT FRONT REAR REAR IMPORTANT: RIGHT RIGHT The control box must be installed inside the vehicle as it is not waterproof. - Page 3 INSTALLATION STEP 2 Secure Control box in desired location with Velcro or zipties. * CONTROL BOX NOT WATERPROOF Ensure the control box is safely and securely hidden from exposing elements of moisture. STEP 3 Secure the light bars using the zip ties to tie all the wiring away from the moving components.
- Page 4 AUX WIRING FOR A DOOR/DOME LIGHT Please scan to see a detail instruction on Door Assist Sync or go to https://wintis.ladesk.com/549690-AURA-Door-AssistAUX-Installation-Guide CONTROL WIRE FOR A DOOR UNLOCK LIGHT Please make sure the control wire (wire with the yellow sticker) is connected to an ;...
- Page 5 METHOD : 1 STEP 3 Connect the control wire (red) to the trigger wire. Then connect the light bar to the control box and use CONTROL CONTROL WIRE WIRE METHOD : 2 STEP 1 the vehicle . STEP 2 IMPORTANT DRL has to be an independent signal, it cannot be a shared signal with fog light, high beam, parking light or turn light.
- Page 6 LED strip to test if it works . DISCLAIMER OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation.
