OPT7 AURA PRO INTERIOR Manual

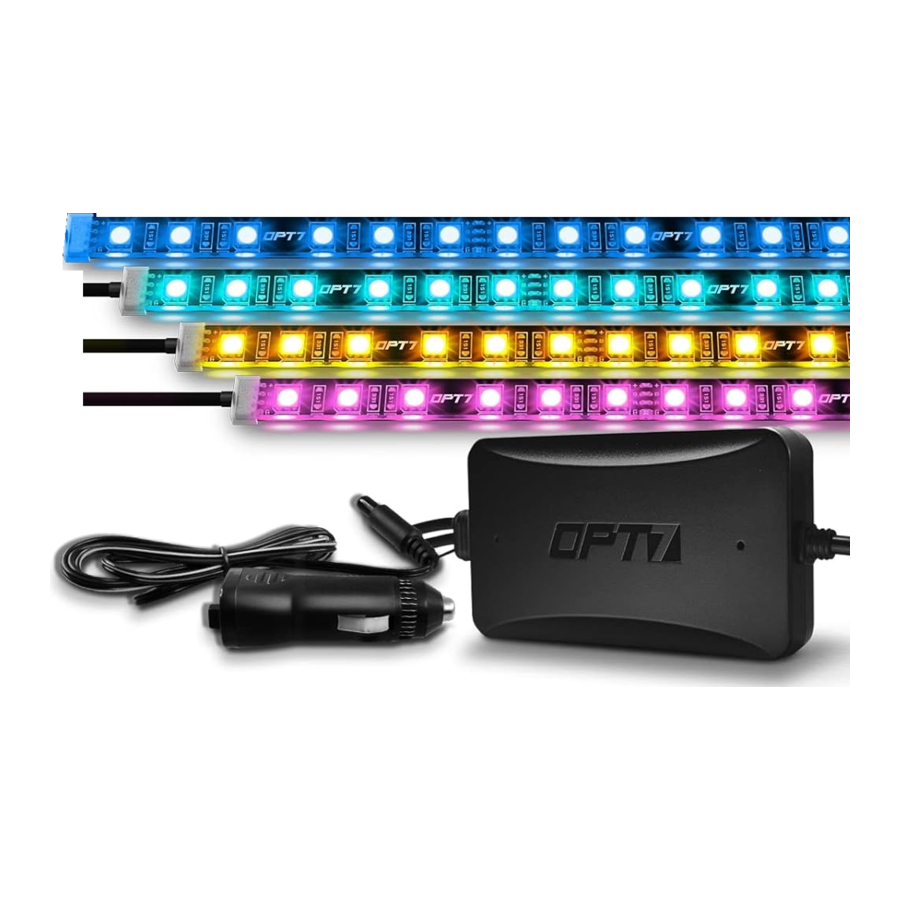

COMPONENTS

INSTALLATION

STEP 1
Inspect kit to ensure all contents was included.

STEP 2
Decide where to locate the light strips and ensure wiring has enough length for control box to be installed in desired location.

The control box must be installed inside the vehicle as it is not waterproof. Avoid installation areas of the engine bay + heated surfaces.

EXAMPLES

1. Connecting to more than 10 AMP will override the kit and cause early failure, ensure it is 10AMPs or less!!
2. Please ensure that the LED bars or strips/control box/wiring all are mounted in areas where will not exceed 85℃ or 185℉.

STEP 3
Scan the QR code on the back of the control box to download the app.

STEP 4
Secure Control box in desired location with Velcro or zipties.

* The control box is NOT waterproof. Tuck it away from the elements.

STEP 5
Secure the light pods using the zip ties to tie all the wiring away from the moving components.

The LED connectors are not waterproof. You will need to use HEAT SHRINK TUBE (not included) or ELECTRICAL TAPE around the LED connectors to ensure the longevity of the lighting kit.

STEP 6
Open the "OPT7 Connect" App, pair your smart phone to the control box, and pick your desired color!

Please ensure that the led bars or strips/control box/wiring all are mounted in areas where will not exceed 85C or 185F.

AUX WIRING FOR A DOOR/DOME LIGHT

Please scan to see a detail instruction on Door Assist Sync or go to https://wintis.ladesk.com/549690-AURA-Door-AssistAUX-Installation-Guide

OPT7 CONNECT APP

QR CODE TO DOWNLOAD

Download the free "OPT7 CONNECT" App

• App iOS (12+) available on App Store


• Android (6 +) available on Google Play



OPT7 CONNECT APP:

• Colors
• Modes
• Door Assist
• Support
• Ability to control up to 4 devices at once

OPT7 recommends installation for safety and guidance.
Modified installations or installation recommendations not specified by OPT7 Lighting will void product warranty.
