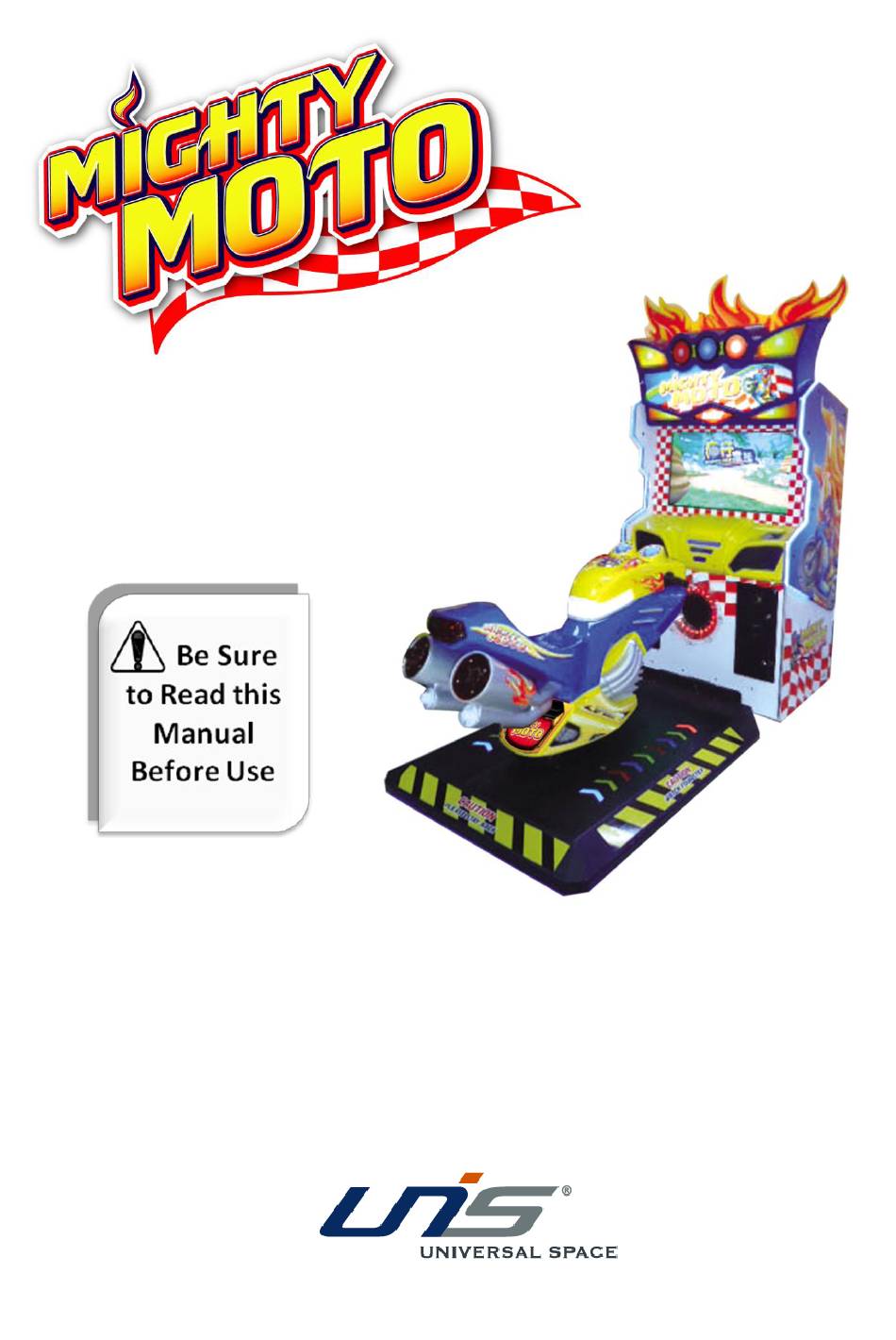

- Page 1 Operation Manual www.universal-space.com...
-
Page 2: Table Of Contents
Operation Manual Rev. 1.0 CONTENT Important Safety Instructions ................. 1 1. SPECIFICATIONS ..................... 5 2. PACKAGE CONTENTS ....................6 3. PART NAMES ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................12 6. GAME OPTION ....................... 16 7. - Page 3 Operation Manual Rev. 1.0 Thank you for purchasing [MICHTY MOTO] from UNIVERSAL SPACE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
-
Page 4: Important Safety Instructions
Operation Manual Rev. 1.0 IMPORTANT SAFETY INSTRUCTIONS To ensure the safe usage of this product, carefully read and understand these instructions before operating your game. Save these instructions for future reference. Use this product only as described in this manual. Other uses not recommended may cause fire, electric shock or personal injury. - Page 5 Operation Manual Rev. 1.0 Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...
-
Page 6: Specifications
Operation Manual Rev. 1.0 1. SPECIFICATIONS Rated power supply： 110V 50/60Hz Mix. Power consumption： ： 230W Max. Power consumption： 380W Dimensions： W1000× D2000× H2100(mm) Weight： About 260Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice. -
Page 7: Package Contents
Operation Manual Rev. 1.0 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1 x Body Assembly Following accessories Part No. Name Spec. Qty. Illustration Note AC power 10A/250V 1.8m M110-807-000 （T6A/250V） Choose by Fuse M110-416-000 Φ5-20mm... -
Page 8: Part Names
Operation Manual Rev. 1.0 3. PART NAMES Lamp Assy. 上灯箱 上灯箱 32”LCD display Oil dial Car Assy Chassis Assy. 组件 Cabinet... -
Page 9: Set Up & Installation
Operation Manual Rev. 1.0 4. SET UP & INSTALLATION Notice This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid Place the unit on a dry level surface ... -
Page 10: Level Adjustment
Operation Manual Rev. 1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction. To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm. -
Page 11: Transporting The Game
Operation Manual Rev. 1.0 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE Be careful not to damage the machine during transport. ... -
Page 12: Connecting Power
Operation Manual Rev. 1.0 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. ... -
Page 13: How To Play
Operation Manual Rev. 1.0 5. HOW TO PLAY Main screen: Select the character Select track... - Page 14 Operation Manual Rev. 1.0 5. HOW TO PLAY Get ready for great game: Games countdown :...
-
Page 15: Starting The Game
Operation Manual Rev. 1.0 5. HOW TO PLAY Starting the Game: The current use props Cycles Props launch Game player The current rate Remaining time Game state Props description：Launch props • Red missile.for three，can attack opponents, blow up the opposition. •... - Page 16 Operation Manual Rev. 1.0 5. HOW TO PLAY Props description：trap props Poison.If trample, screen be temporarily Banana. If trample , temporarily can't control keep out. the direction • • 。 • Banana .If trample ,Flat tire, slow down. Mines.If trample,blow up. •...
-
Page 17: Main Board
Operation Manual Rev. 1.0 6. GAME OPTION 6.1 Switches control singal efer the attached I/O chart and the schematic. To adjust DIP, please refer the the I/O chart. The initial setting is in capitalization. Main board ：... -
Page 18: Handling Precautions
Operation Manual Rev. 1.0 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3. -
Page 19: Main Assembly
Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION 8.1 Main Assembly： Part No. Code Name Qty. Spec. Note FXMT-01-00(M) Wooden box M110-001-000 Assembly FXMT-02-00 M110-002-000 Lamp Assy. Assembly FXMT-03-00 M110-003-000 Side lamp Assy. Assembly FXMT-04-00 M110-004-000 Front Assy Assembly FXMT-05-00 M110-005-000 Cabinet Assembly FXMT-06-00... - Page 20 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION Each Part Drawing:...
- Page 21 Operation Manual Rev. 1.0 Code Part No. Name Qty. Spec. Note FXMT-HM-02 M110-601-000 Organic lamp box clear acrylic FXMT-02-07 M110-602-000 light shield Clear PVC FXMT-02-05 M110-101-000 Light POP install plate Black oil FXMT-02-03 M110-102-000 Lamp board holder Q235 M110-501-000 FXMT-01-14（M） Lamp plate FXMT-02-04 M110-103-000...
- Page 22 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION 8.4 Moto Assembly:...
- Page 23 Operation Manual Rev. 1.0 Code Part No. Name Qty. Spec. Note Dial PVC FXMT-06-19 clear PVC M110-609-000 Dial cover FXMT-HM-14 M110-610-000 clear PVC Dial shell FXMT-06-20 ABS chrome M110-611-000 CJMTC-04-07 M110-612-000 Head box cover Head cover plastic FXMT-06-03 ABS yellow M110-613-000 Head Translucent plastic...
- Page 24 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION 8.6 Counter & Wire box： Coin counter Ticket counter Bass Volume Test Ticket reset AC 110V Fuse...
- Page 25 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION Part No. Code Name Qty. Spec. Note 23000000005 Counter M110-403-000 C-012 DC12V 22403000001 M110-404-000 Pot. knob Black 21709000002 M110-405-000 Pot. Conncet board VR.PCB M110-406-000 22402030002 Button PB：11C02R M110-407-000 Button PB：11C02R 22402010002 M110-408-000 21901000010 Fuse Ф5×20mm T6A 250VAC M110-409-000...
- Page 26 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION 8.7 Electrical part：...
- Page 27 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION Part No. Code Name Qty. Spec. Note 22006000060 M110-412-000 T5 tube MXT5-Y8C 6400K 220V 22006000018 M110-413-000 T5 tube MXT5-Y14C 6400K 220V 21602000029 Power supply M110-414-000 EPT-S150S12 M110-804-000 20740803006 LED lamp board HHXYS-LED01.PCB(V1.0) M110-805-000 22803010001 GC2.2 M110-806-000...
- Page 28 Operation Manual Rev. 1.0 8. OVERALL CONSTRUCTION 8.8 Game menu： Front ：...
- Page 29 Operation Manual Rev. 1.0 Back ：...
- Page 30 Operation Manual Rev. 1.0 Part No. Code Name Spec. Qty. Note 1162× 558.5 FXMT-HM-02 Lamp menu M110-701-000 (6mm clear PVC) 988.7× 436.7 FXMT-HM-01 Lamp PVC menu M110-702-000 (2mm clear PVC) 913× 557 FXMT-HM-08 Display menu M110-703-000 (PVC100u glue) 922× 480 FXMT-HM-07 Speaker menu(front) M110-704-000...
- Page 31 Operation Manual Rev. 1.0 30× 6(white PVC100u TY-HM-11 Fuse T5A M110-725-000 glue) 30× 6 (white PVC100u TY-HM-17 AC110V M110-726-000 glue) 0.5(white PVC100u TY-HM-19 M110-727-000 110V nameplate glue) High voltage decal 41× 42 TY-HM-36 M110-728-000 (white PVC100u glue)) (small） 66× 66 TY-HM-33 No touching decal M110-729-000...
