Summary of Contents for Universal Space MR.WOLF

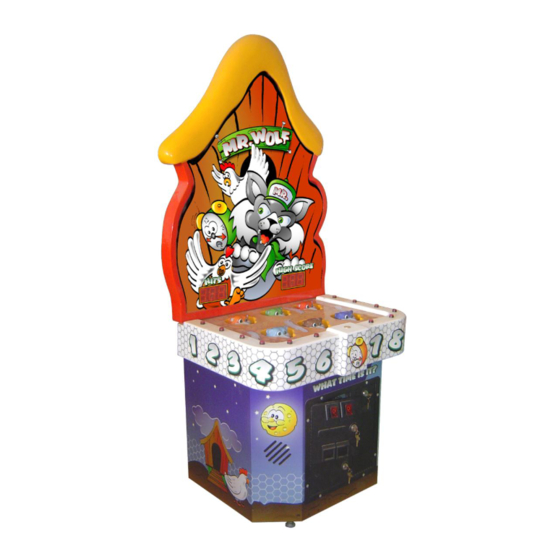

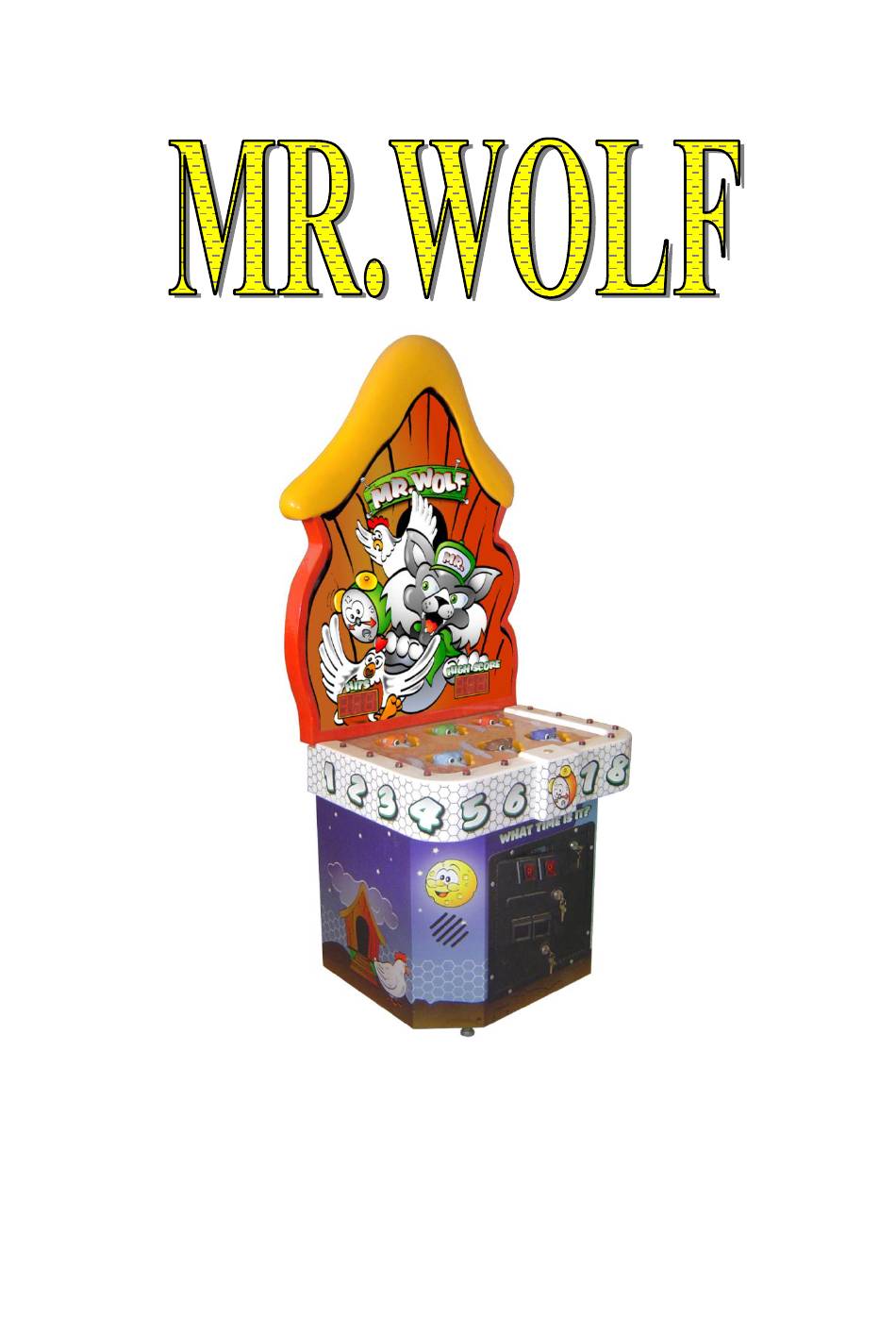

  • Page 1 Operation Manual Universal Space Amusement (HK) Co.,Ltd Parts, Service and Distribution call 852-24076810...
  • Page 2: Specification

    1. Specification :AC110V/220V 50/60Hz (1) Rated power supply (Note:As the actual voltage, please refer the label of the machine.) :W695×D882×H1859(mm) (2) Dimensions (3) Environment Condition:Temperature(indoor):-10°C~+40°C Environment Condition:Humidity:≤90% Environment Condition:Atmospheric pressure:86Pa~106Pa...
  • Page 3 Note: Game parameters are subject change without notice.
  • Page 4: Installation

    Installation WARNING ● For indoor use only! 2-1. Locations WARNING This machine is designed for indoor use only.Never install this machine outdoors or at any of the flowing: ● Places where dew may develop due to temperature differences ● Locations close to hazardous article ●...
  • Page 5 Level adjust C aster Level adjustor Caster Approx. 5mm M ove Move 2. When moving to far distance, the machine must be packed. When packing or binding the machine, it must be packed with a bolster on surface in order to protect the machine.
  • Page 6: Connecting The Power Cord

    Connecting the power cord Power socket 电源插座 电源线盒 Inlet box 电源插头 Power plug Power plug 电源插头 Power code 电源线 1. Insert the socket end of power cord into the power input of the game. 2. Insert the power cord plug into a service outlet. WARNING ●...
  • Page 7 4 Instructions for play 1. Insert coins, the game starts. 2. Hit the wolfs with a hammer to get score. The score will be displayed on score LED. The more score you get, the more tickets you get. 3. When the time is over, the game is over. 5 Switches control signal and illuminate 1 Refer the attached I/O chart and the schematic.
  • Page 8: Maintenance And Inspections

    6 Maintenance and inspections 1. Remove power before servicing game. To avoid short circuit, the power must be removed before touching inside. If you have to switch on the power, please refer the operation manual. 2. Choose the appropriate replacement parts. Using the wrong parts will lead to short circuit or break down the main board.
  • Page 9 7 Parts list 7-1 Front door: Tickets payout Coin mech Lock 1. Coin mech:Use for insert coins which is fit for this machine. 2. Tickets payout:Tickets will be come out when the game is over. 3. Lock 2222:Open the coin door. 7-2 Power socket: This machine’s supply voltage is 110V±5% 60Hz, or 220V±5% 50Hz”.
  • Page 10: Overall Construction

    8 Overall construction Game Components 1. Coin mech 2. Front panel 3. Upper panel 4. Side panel 5. Up and down mechanism 6. Flat assy. 7. Wolf 8. Marquee assy 9. Marquee support 10 Rear door 11 door 12 Back panel 13 Circuit board 14 Bottom panel 15 Wheel...
  • Page 11 16 Ticket box Marquee Assy 1. Marquee 2. Imbed board 3. Back cover 4. Fixing bracket...
